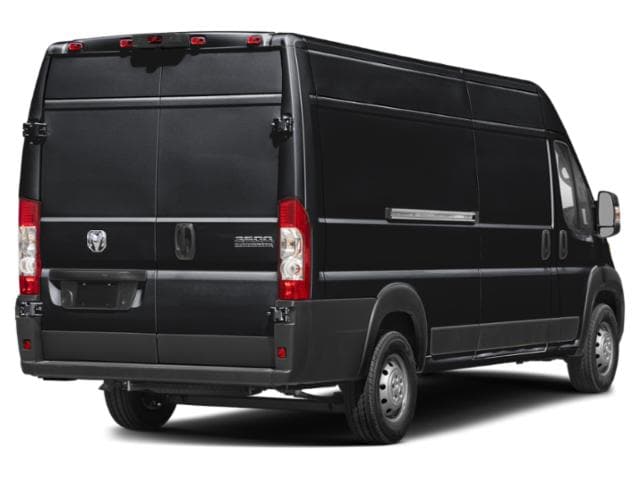

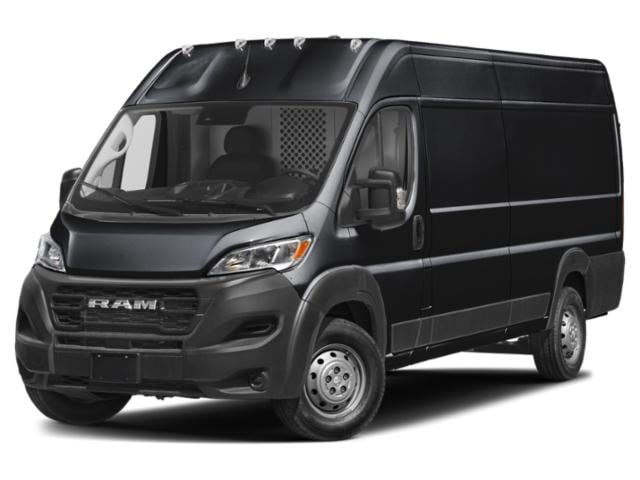

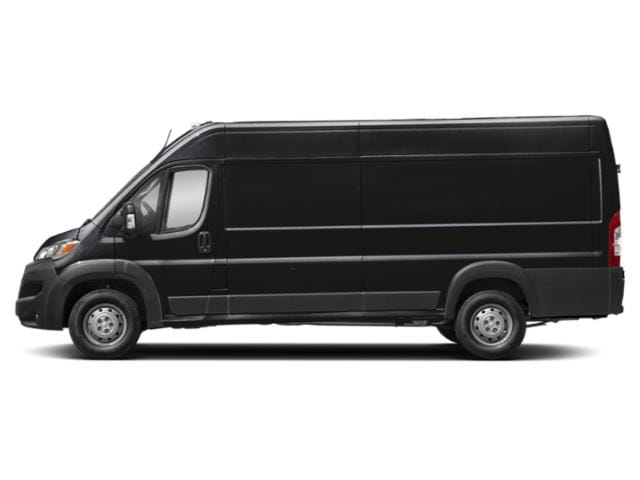

2024 Ram ProMaster Cargo Van
$44,960 - $55,590Starting MSRP
Black Clearcoat
Model Highlights
Transmission
Automatic w/OD
Body Type
Minivan, Van
Seatings
1 Seats
Build Your Own 2024 Ram ProMaster Cargo Van
Looking for alternatives to the Ram ProMaster Cargo Van?
Start Comparing NowColors
Exterior
Black Clearcoat
Patriot Blue Pearlcoat
Ceramic Gray Clearcoat
Granite Crystal Metallic Clearcoat
Spitfire Orange Clearcoat
Deep Cherry Red Crystal Pearlcoat
Flame Red Clearcoat
Bright Silver Metallic Clearcoat
Sandstone Pearlcoat
Bright White Clearcoat
Specs
Rear Door Type: Split Swing-Out
Engine Order Code: ERF
Engine Type: Regular Unleaded V-6
Displacement: 3.6 L/220
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 276 @ 6400
SAE Net Torque @ RPM: 250 @ 4400
Engine Oil Cooler: Regular Duty
Drivetrain: Front Wheel Drive
Trans Order Code: DFH
Trans Type: 9
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 2.84
Third Gear Ratio (:1): 1.91
Fourth Gear Ratio (:1): 1.38
Fifth Gear Ratio (:1): 1.00
Sixth Gear Ratio (:1): 0.81
Reverse Ratio (:1): 3.81
Trans PTO Access: No
Transfer Case Model: None
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.70
Eighth Gear Ratio (:1): 0.58
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd): 800
Maximum Alternator Capacity (amps): 180
Gross Axle Wt Rating - Front (lbs): 4630
Gross Axle Wt Rating - Rear (lbs): 5291
Gross Vehicle Weight Rating Cap (lbs): 9350
Gross Combined Wt Rating (lbs): 12000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 6410
Wt Distributing Hitch - Max Tongue Wt. (lbs): 641
Maximum Trailering Capacity (lbs): 6410
Suspension Type - Front: Strut
Suspension Type - Rear: Leaf
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 4.08
Axle Ratio (:1) - Rear: 4.08
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.8
Rear Brake Rotor Diam x Thickness (in): 11.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TWA
Rear Tire Order Code: TWA
Spare Tire Order Code:
Front Tire Size: LT225/75R16
Rear Tire Size: LT225/75R16
Spare Tire Size:
Front Wheel Size (in): 16 X 6
Rear Wheel Size (in): 16 X 6
Spare Wheel Size (in):
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material:
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 46.8
Fuel Tank Capacity, Approx (gal): 24
Side Door Type: Sliding
Wheelbase (in): 159
Length, Overall (in): 250.6
Width, Max w/o mirrors (in): 80.3
Overhang, Front (in): 37.6
Ground to Top of Load Floor (in): 21
Ground Clearance, Front (in): 7.7
Ground Clearance, Rear (in): 7.7
Cargo Area Length @ Floor to Seat 1 (in): 160.2
Cargo Area Width @ Beltline (in): 75.6
Cargo Box Width @ Wheelhousings (in): 55.8
Passenger Capacity: 1
Front Head Room (in): 43
Front Leg Room (in): 38.8
Front Shoulder Room (in): 74.8
Front Hip Room (in): 65.9
Vehicle Name: Ram ProMaster Cargo Van
Body Style: Extended Cargo Van Super High Roof
Body Code: V
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 46 different trims.
MSRP
$55,590
Invoice
$53,172
Description
3.6 L/220, 276 @ 6400, Automatic w/OD
Fuel Economy
This model has 46 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
3.6 L/220, 276 @ 6400, Automatic w/OD
