2026 Ram 1500
$40,275 - $87,075Starting MSRP

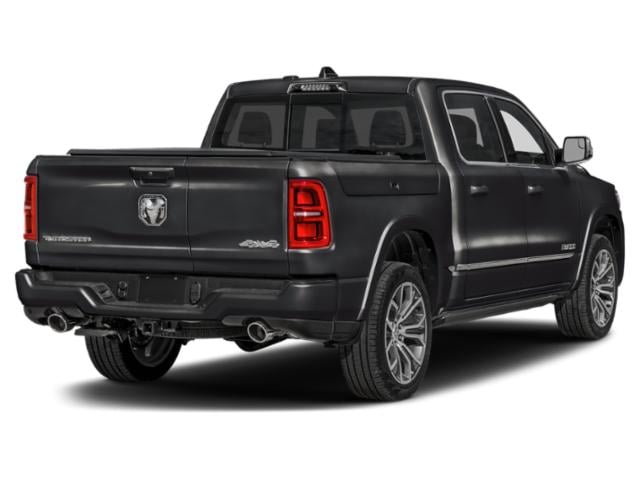

Diamond Black Crystal Pearlcoat
Model Highlights
Fuel Economy
17 MPG Comb.
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats

Build Your Own 2026 Ram 1500

Looking for alternatives to the Ram 1500?
Start Comparing NowColors
Exterior
Diamond Black Crystal Pearlcoat
Canyon Lake
Forged Blue Metallic
Granite Crystal Metallic Clearcoat
Serrano Green Metallic
Delmonico Red Pearlcoat
Molten Red Pearlcoat
Billet Silver Metallic Clearcoat
Silver Zynith
Bright White Clearcoat
Ivory White Tri-Coat Pearlcoat
Specs
Engine Order Code: EFC
Engine Type: Twin Turbo Premium Unleaded I-6
Displacement: 3.0 L/183
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 540
SAE Net Torque @ RPM: 521
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: DFR
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 3.14
Third Gear Ratio (:1): 2.11
Fourth Gear Ratio (:1): 1.67
Fifth Gear Ratio (:1): 1.28
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.29
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.84
Eighth Gear Ratio (:1): 0.67
Fuel Economy Est-Combined (MPG): 17 (2025)
EPA Fuel Economy Est - City (MPG): 15 (2025)
EPA Fuel Economy Est - Hwy (MPG): 21 (2025)
Cold Cranking Amps @ 0° F (Primary): 700
Cold Cranking Amps @ 0° F (2nd): 700
Maximum Alternator Capacity (amps): 230
Base Curb Weight (lbs): 5721
Gross Axle Wt Rating - Front (lbs): 3900
Gross Axle Wt Rating - Rear (lbs): 4100
Curb Weight - Front (lbs): 3335
Curb Weight - Rear (lbs): 2386
Gross Vehicle Weight Rating Cap (lbs): 7100
Gross Combined Wt Rating (lbs): 16134
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 10050
Wt Distributing Hitch - Max Tongue Wt. (lbs): 1005
Maximum Trailering Capacity (lbs): 10050
Suspension Type - Front: Short And Long Arm
Suspension Type - Rear: Multi-Link
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 3.92
Axle Ratio (:1) - Rear: 3.92
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.9
Rear Brake Rotor Diam x Thickness (in): 14.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TUB
Rear Tire Order Code: TUB
Spare Tire Order Code:
Front Tire Size: P275/55TR20
Rear Tire Size: P275/55TR20
Spare Tire Size: Full-Size
Front Wheel Size (in): 20 X 9
Rear Wheel Size (in): 20 X 9
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 48.7
Fuel Tank Capacity, Approx (gal): 33
Wheelbase (in): 153.5
Length, Overall (in): 241.8
Width, Max w/o mirrors (in): 82.1
Height, Overall (in): 77.5
Ground Clearance, Front (in): 8.1
Ground Clearance, Rear (in): 8.1
Cargo Box Length @ Floor (in): 76.3
Cargo Box Width @ Top, Rear (in): 66.4
Cargo Box Width @ Floor (in): 66.4
Cargo Box Width @ Wheelhousings (in): 51
Cargo Box (Area) Height (in): 21.5
Tailgate Width (in): 60
Cargo Volume (ft³): 61.5
Passenger Capacity: 5
Front Head Room (in): 40.9
Front Leg Room (in): 40.9
Front Shoulder Room (in): 66
Front Hip Room (in): 63.4
Second Head Room (in): 39.8
Second Leg Room (in): 45.2
Second Shoulder Room (in): 65.7
Second Hip Room (in): 63.4
Vehicle Name: Ram 1500
Body Style: Crew Cab
Body Code: T
EPA Greenhouse Gas Score: 3.0 (Est)
Tons/yr of CO2 Emissions @ 15K mi/year: 10.4 (2025)
Pricing
This model has 35 different trims.
MSRP
$75,455
Invoice
$70,325
Description
3.0 L/183, 540, Automatic w/OD
Fuel Economy
This model has 35 different trims.
City
15 MPG
Hwy
21 MPG
Combined
17 MPG
Description
3.0 L/183, 540, Automatic w/OD
