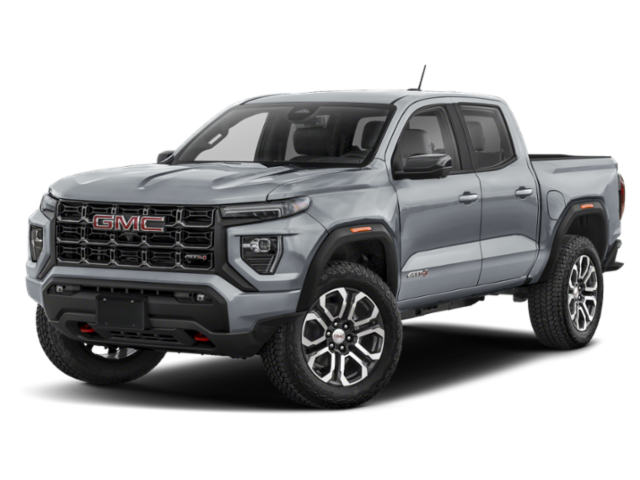

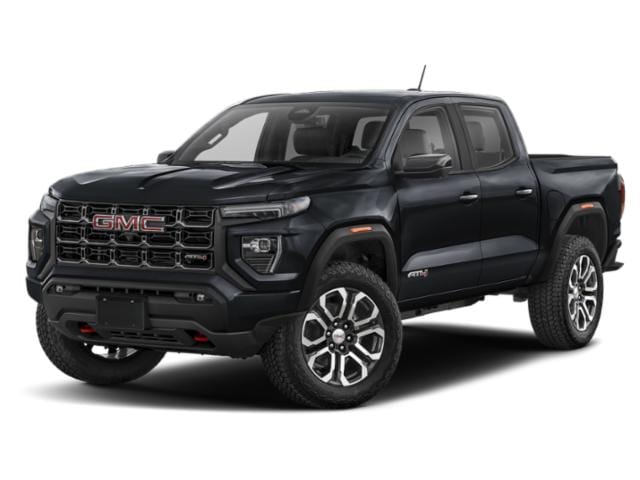

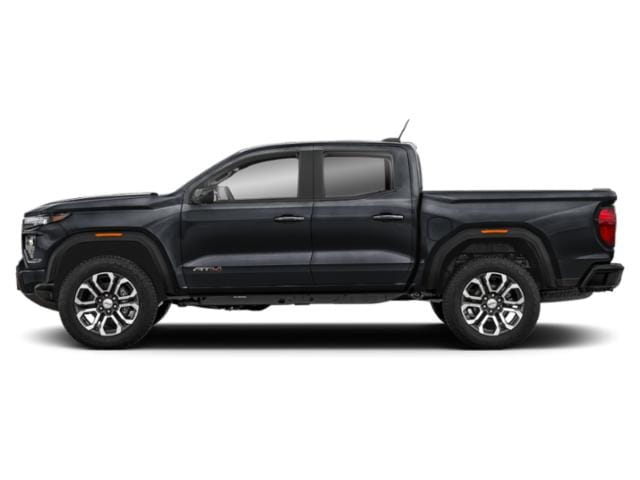

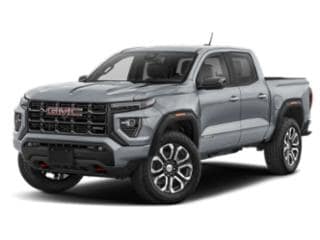

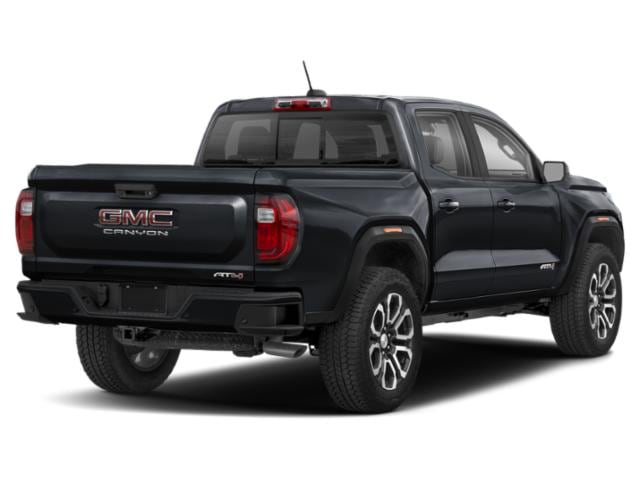

2026 GMC Canyon
$38,900 - $57,300Starting MSRP
Onyx Black
Model Highlights
Fuel Economy
17 MPG Comb.
Transmission
AUTO
Body Type
Truck
Seatings
5 Seats
Overview
The GMC Canyon is powered by a 2.7L turbocharged four-cylinder engine mated to an 8-speed automatic transmission with 310 horsepower. The 2026 Canyon is available in four-wheel drive with four trims Elevation, AT4, the AT4X and Denali, while the...
Build Your Own 2026 GMC Canyon
What’s new in the 2026 model?
The GMC Canyon is a carryover for 2026 with a couple of new options and packages. The model re-introduces the AT4X as a trim instead of a package, ...
Looking for alternatives to the GMC Canyon?
Start Comparing NowColors
Exterior

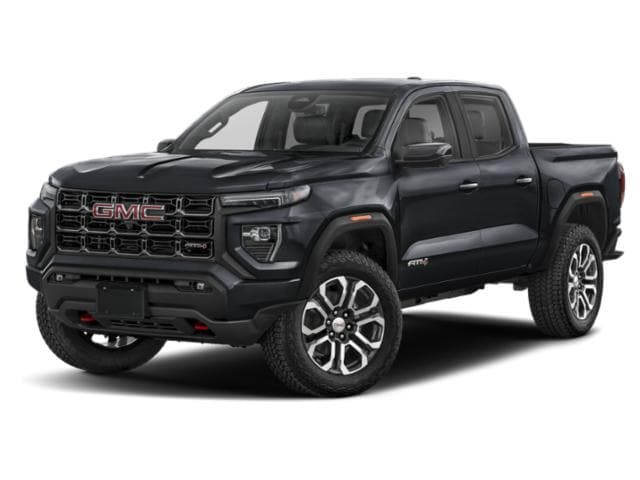

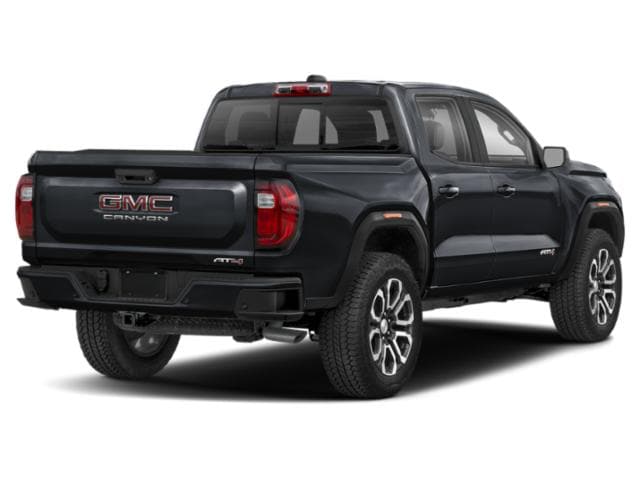

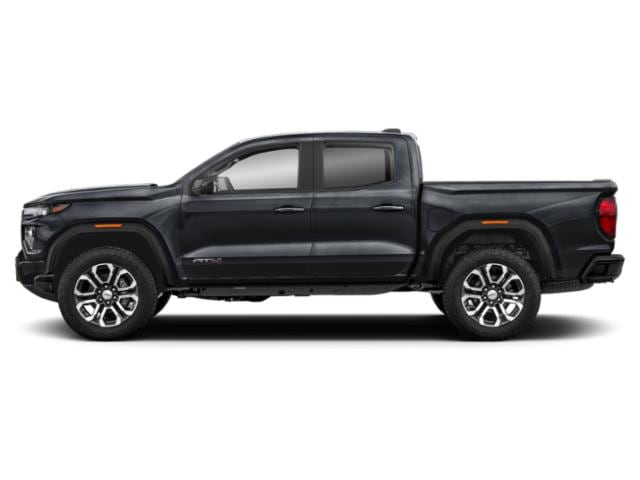

Onyx Black
Sterling Metallic
Desert Sun
Volcanic Red Tintcoat
Coastal Dune
Summit White
Specs
Engine Order Code: L3B
Engine Type: Turbocharged Gas I4
Displacement: 2.7L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 310 @ 5600
SAE Net Torque @ RPM: 430 @ 3000
Engine Oil Cooler: - TBD -
Drivetrain: Four Wheel Drive
Trans Order Code: MFC
Trans Type: 8
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.56
Second Gear Ratio (:1): 2.97
Third Gear Ratio (:1): 2.08
Fourth Gear Ratio (:1): 1.69
Fifth Gear Ratio (:1): 1.27
Sixth Gear Ratio (:1): 1.00
Seventh Gear Ratio (:1): 0.85
Eighth Gear Ratio (:1): 0.65
Reverse Ratio (:1): 4.56
Clutch Size (in):
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model: Autotrac
Transfer Case Gear Ratio (:1), High: 1
Transfer Case Gear Ratio (:1), Low: - TBD -
Transfer Case Power Take Off: - TBD -
Fuel Economy Est-Combined (MPG): 17 (2025)
EPA Fuel Economy Est - City (MPG): 17 (2025)
EPA Fuel Economy Est - Hwy (MPG): 17 (2025)
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd):
Maximum Alternator Capacity (amps): 220
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): - TBD -
Gross Axle Wt Rating - Front (lbs): 3500
Gross Axle Wt Rating - Rear (lbs): 3400
Curb Weight - Front (lbs): 2553
Curb Weight - Rear (lbs): 1989
Gross Vehicle Weight Rating Cap (lbs): 6250
Gross Combined Wt Rating (lbs): 11600
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
Fifth Wheel Hitch - Max Trailer Wt. (lbs):
Fifth Wheel Hitch - Max Tongue Wt. (lbs):
Maximum Trailering Capacity (lbs): 6000
Suspension Type - Front: Lifted w/Independent Coil-Over-Shock
Suspension Type - Rear: Lifted w/Semi-Elliptic Two-Stage Multi-Leaf Springs
Spring Capacity - Front (lbs): - TBD -
Spring Capacity - Rear (lbs): - TBD -
Axle Type - Front: - TBD -
Axle Type - Rear: - TBD -
Axle Capacity - Front (lbs): - TBD -
Axle Capacity - Rear (lbs): - TBD -
Axle Ratio (:1) - Front: 3.42
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.4 x - TBD -
Rear Brake Rotor Diam x Thickness (in): 13.3 x - TBD -
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: QAF
Rear Tire Order Code: QAF
Spare Tire Order Code: RMR
Front Tire Size: LT285/70R17C
Rear Tire Size: LT285/70R17C
Spare Tire Size: LT285/70R17C
Front Tire Capacity (lbs): - TBD -
Rear Tire Capacity (lbs): - TBD -
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 17 x 8
Rear Wheel Size (in): 17 x 8
Spare Wheel Size (in): 17 x 8
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), On Center: - TBD -
Steering Ratio (:1), At Lock: - TBD -
Turning Diameter - Curb to Curb (ft): - TBD -
Turning Diameter - Wall to Wall (ft): - TBD -
Frame Type: Fully-boxed
Fuel Tank Capacity, Approx (gal): 21.4
Aux Fuel Tank Capacity, Approx (gal):
Fuel Tank Location: - TBD -
Aux Fuel Tank Location:
Wheelbase (in): 131
Length, Overall (in): 213.2
Width, Max w/o mirrors (in): 72.4 w/Mirrors Folded, 84.4 w/Mirrors
Height, Overall (in): 81.6
Overhang, Front (in): 34.5
Overhang, Rear w/o bumper (in): 47.3
Front Bumper to Back of Cab (in): - TBD -
Cab to Axle (in): 23.4
Cab to End of Frame (in): - TBD -
Ground to Top of Load Floor (in): - TBD -
Ground to Top of Frame (in): - TBD -
Frame Width, Rear (in): - TBD -
Ground Clearance, Front (in): 10.7
Ground Clearance, Rear (in): 10.7
Cargo Box Length @ Floor (in): 61.7
Cargo Box Width @ Top, Rear (in): - TBD -
Cargo Box Width @ Floor (in): 58.1
Cargo Box Width @ Wheelhousings (in): 45.5
Cargo Box (Area) Height (in): - TBD -
Tailgate Width (in): - TBD -
Cargo Volume (ft³): 41.9
Ext'd Cab Cargo Volume (ft³): - TBD -
Passenger Capacity: 5
Front Head Room (in): 39.2
Front Leg Room (in): 45.2
Front Shoulder Room (in): 57.4
Front Hip Room (in): 54.7
Second Head Room (in): 38.3
Second Leg Room (in): 34.7
Second Shoulder Room (in): 56.1
Second Hip Room (in): 53.1
Vehicle Name: GMC Canyon
Body Style: Crew Cab Pickup
Body Code:
EPA Greenhouse Gas Score: 3 (2025)
Tons/yr of CO2 Emissions @ 15K mi/year: 8.7 (2025)
Pricing
This model has 5 different trims.
MSRP
$57,300
Invoice
$54,664
Description
2.7L/-, 310 @ 5600, AUTO
Fuel Economy
This model has 5 different trims.
City
17 MPG
Hwy
17 MPG
Combined
17 MPG
Description
2.7L/-, 310 @ 5600, AUTO
