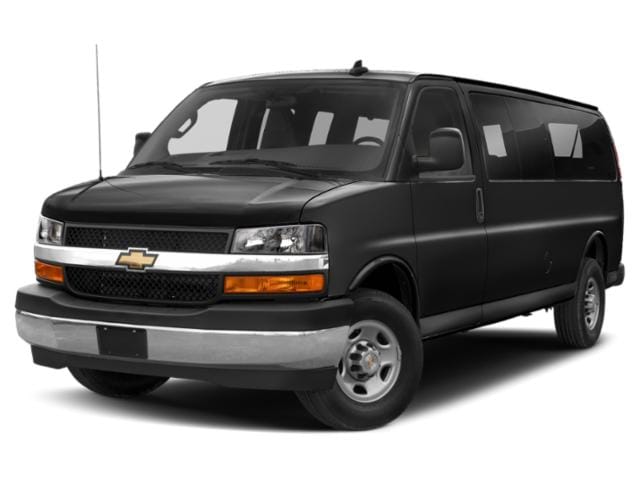

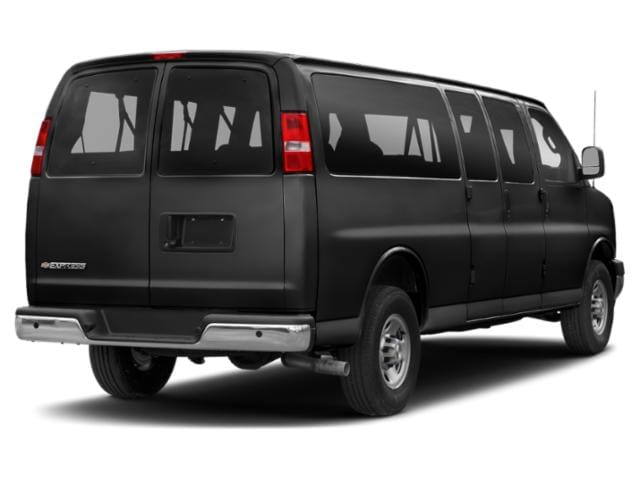

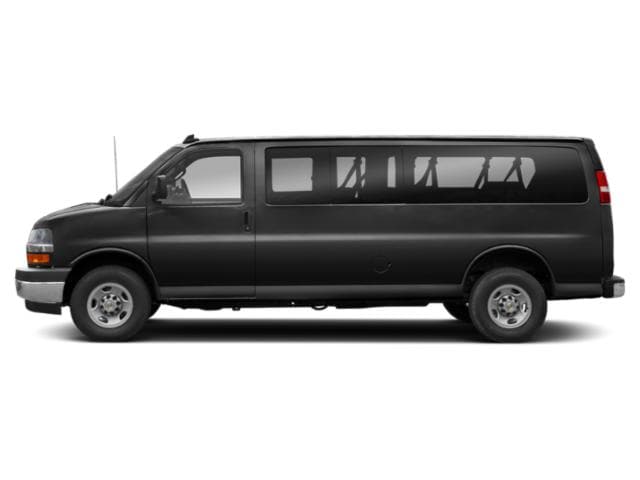

2019 Chevrolet Express Passenger
$34,900 - $38,000Starting MSRP
Black
Model Highlights
Transmission
AUTO
Body Type
Van
Seatings
12 Seats
Overview
The Chevrolet Express Passenger Van comes in 2500 Series and heavy-duty 3500 models. Wheelbase options come in regular (135-inch) and extended (155-inch) sizes. Seating accommodations are available for eight, 12 or 15 people. Towing is also a...
What’s new in the 2019 model?
For 2019, Chevrolet has updated the full-size Express passenger van with a lane-departure warning, forward collision alert and a theft deterrent sy...
Looking for alternatives to the Chevrolet Express Passenger?
Start Comparing NowColors
Exterior
Black
Red Hot
Silver Ice Metallic
Summit White
Specs
Rear Door Type: Dual Swing-Out
Engine Order Code: LV1
Engine Type: Gas V6
Displacement: 4.3L/- TBD -
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 276 @ 5200
SAE Net Torque @ RPM: 298 @ 3900
Engine Oil Cooler: Yes
Drivetrain: Rear Wheel Drive
Trans Order Code: M5U
Trans Type: 8
Trans Description Cont.: HD Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.56
Second Gear Ratio (:1): 2.97
Third Gear Ratio (:1): 2.08
Fourth Gear Ratio (:1): 1.69
Fifth Gear Ratio (:1): 1.27
Sixth Gear Ratio (:1): 1.00
Seventh Gear Ratio (:1): 0.85
Eighth Gear Ratio (:1): 0.65
Reverse Ratio (:1): 3.82
Clutch Size (in):
Trans Power Take Off:
Trans PTO Access:
Transfer Case Model:
Transfer Case Gear Ratio (:1), High:
Transfer Case Gear Ratio (:1), Low:
Transfer Case Power Take Off:
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Cold Cranking Amps @ 0° F (Primary): 600
Cold Cranking Amps @ 0° F (2nd):
Maximum Alternator Capacity (amps): 150
Maximum Alternator Watts: - TBD -
Total Cooling System Capacity (qts): - TBD -
Gross Axle Wt Rating - Front (lbs): 4300
Gross Axle Wt Rating - Rear (lbs): 6084
Curb Weight - Front (lbs): 3142
Curb Weight - Rear (lbs): 3266
Gross Vehicle Weight Rating Cap (lbs): 9600
Gross Combined Wt Rating (lbs): 13000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 6300
Wt Distributing Hitch - Max Tongue Wt. (lbs): 630
Fifth Wheel Hitch - Max Trailer Wt. (lbs):
Fifth Wheel Hitch - Max Tongue Wt. (lbs):
Maximum Trailering Capacity (lbs): 9200
Suspension Type - Front: Coil Spring
Suspension Type - Rear: Hypoid Drive
Spring Capacity - Front (lbs): 4300
Spring Capacity - Rear (lbs): 6084
Axle Type - Front: Independent
Axle Type - Rear: Full-Floating
Axle Capacity - Front (lbs): 4300
Axle Capacity - Rear (lbs): 6084
Axle Ratio (:1) - Front:
Axle Ratio (:1) - Rear: 3.42
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): 1.38
Stabilizer Bar Diameter - Rear (in):
Brake Type: Pwr
Brake ABS System: 4-Wheel
Brake ABS System (Second Line):
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: XLP
Rear Tire Order Code: YLP
Spare Tire Order Code: ZLP
Front Tire Size: LT245/75R16E
Rear Tire Size: LT245/75R16E
Spare Tire Size: LT245/75R16E
Front Tire Capacity (lbs): 2205
Rear Tire Capacity (lbs): 3042
Spare Tire Capacity (lbs): - TBD -
Revolutions/Mile @ 45 mph - Front: - TBD -
Revolutions/Mile @ 45 mph - Rear: - TBD -
Revolutions/Mile @ 45 mph - Spare: - TBD -
Front Wheel Size (in): 16 x 6.5
Rear Wheel Size (in): 16 x 6.5
Spare Wheel Size (in): 16 x 6.5
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Pwr
Steering Ratio (:1), On Center: 17.2
Steering Ratio (:1), At Lock: 17.2
Turning Diameter - Curb to Curb (ft): 54.5
Turning Diameter - Wall to Wall (ft): - TBD -
Frame Type: Ladder-Type
Fuel Tank Capacity, Approx (gal): 31
Aux Fuel Tank Capacity, Approx (gal):
Fuel Tank Location: Mid-Frame
Aux Fuel Tank Location:
Side Door Type: Swing-Out
Wheelbase (in): 155.00
Length, Overall (in): 244.10
Width, Max w/o mirrors (in): 79.20
Height, Overall (in): 82.9
Overhang, Front (in): - TBD -
Overhang, Rear w/bumper (in): - TBD -
Ground to Top of Load Floor (in): 30.1
Ground Clearance, Front (in): 8.8
Ground Clearance, Rear (in): 7.7
Rear Door Opening Height (in): 49.4
Rear Door Opening Width (in): 57
Side Door Opening Height (in): 47.9
Side Door Opening Width (in): - TBD -
Step Up Height - Front (in): 19.4
Step Up Height - Side (in): 19.8
Cargo Area Length @ Floor to Console (in): 173.6
Cargo Area Length @ Floor to Seat 1 (in): 146
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Length @ Floor to Seat 3 (in): - TBD -
Cargo Area Length @ Floor to Seat 4 (in): - TBD -
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): 50.4
Cargo Box (Area) Height (in): 51.8
Cargo Volume to Seat 1 (ft³): - TBD -
Cargo Volume to Seat 2 (ft³): - TBD -
Cargo Volume to Seat 3 (ft³): - TBD -
Cargo Volume to Seat 4 (ft³): - TBD -
Passenger Capacity: 12
Front Head Room (in): - TBD -
Front Leg Room (in): - TBD -
Front Shoulder Room (in): - TBD -
Front Hip Room (in): - TBD -
Second Head Room (in): - TBD -
Second Leg Room (in): - TBD -
Second Shoulder Room (in): - TBD -
Second Hip Room (in): - TBD -
Third Head Room (in): - TBD -
Third Leg Room (in): - TBD -
Third Shoulder Room (in): - TBD -
Third Hip Room (in): - TBD -
Fourth Head Room (in): - TBD -
Fourth Leg Room (in): - TBD -
Fourth Shoulder Room (in): - TBD -
Fourth Hip Room (in): - TBD -
Fifth Head Room (in):
Fifth Leg Room (in):
Fifth Shoulder Room (in):
Fifth Hip Room (in):
Vehicle Name: Chevrolet Express Passenger
Body Style: Passenger Van
Body Code: ZW9
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 6 different trims.
MSRP
$38,000
Invoice
$35,492
Description
4.3L/-, 276 @ 5200, AUTO
Fuel Economy
This model has 6 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
4.3L/-, 276 @ 5200, AUTO
