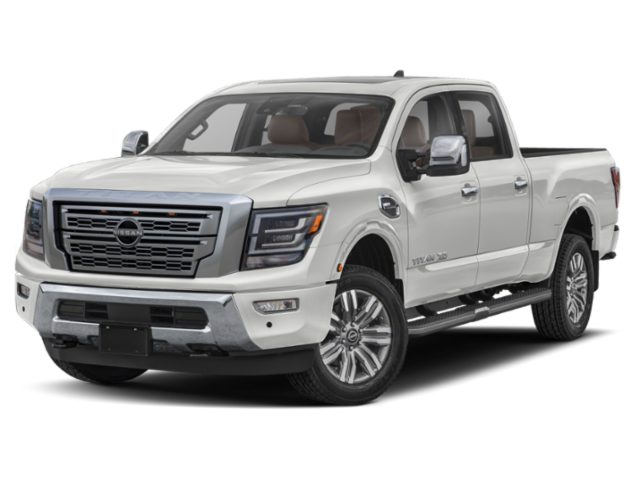

2024 Nissan Titan XD
$52,850 - $66,760Starting MSRP
Super Black
Model Highlights
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats
Overview
The 2024 Nissan Titan is a full-size light-duty pickup available in three trim levels; SV, PRO-4X, and Platinum Reserve. Available in 2-wheel and 4-wheel drive, the Titan is offered in two different cab styles; Crew Cab Short Bed and King Cab...
Build Your Own 2024 Nissan Titan XD
What’s new in the 2024 model?
The Titan and Titan XD drop the S trim but otherwise carry over into 2024 with minimal changes.
Looking for alternatives to the Nissan Titan XD?
Start Comparing NowColors
Exterior
Super Black
Deep Blue Pearl
Gun Metallic
Cardinal Red Metallic Tricoat
Pearl White Tricoat
Specs
Engine Order Code:
Engine Type: Premium Unleaded V-8
Displacement: 5.6 L/339
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 400 @ 5800
SAE Net Torque @ RPM: 413 @ 4000
Engine Oil Cooler: Regular Duty
Drivetrain: Four Wheel Drive
Trans Order Code:
Trans Type: 9
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.42
Second Gear Ratio (:1): 3.26
Third Gear Ratio (:1): 2.25
Fourth Gear Ratio (:1): 1.65
Fifth Gear Ratio (:1): 1.22
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 4.80
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.86
Eighth Gear Ratio (:1): 0.71
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Cold Cranking Amps @ 0° F (Primary): 710
Cold Cranking Amps @ 0° F (2nd): 710
Maximum Alternator Capacity (amps): 200
Base Curb Weight (lbs): 6838
Gross Axle Wt Rating - Front (lbs): 3924
Gross Axle Wt Rating - Rear (lbs): 4900
Curb Weight - Front (lbs): 3849
Curb Weight - Rear (lbs): 2989
Gross Vehicle Weight Rating Cap (lbs): 8650
Gross Combined Wt Rating (lbs): 16900
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 9650
Wt Distributing Hitch - Max Tongue Wt. (lbs): 965
Maximum Trailering Capacity (lbs): 9650
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Leaf
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 4.08
Axle Ratio (:1) - Rear: 4.08
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.2
Rear Brake Rotor Diam x Thickness (in): 14.4
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: LT265/60RR20
Rear Tire Size: LT265/60RR20
Spare Tire Size: Full-Size
Front Wheel Size (in): 20 X 7.5
Rear Wheel Size (in): 20 X 7.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb (ft): 53.8
Fuel Tank Capacity, Approx (gal): 26
Wheelbase (in): 151.6
Length, Overall (in): 244.4
Width, Max w/o mirrors (in): 80.7
Height, Overall (in): 78.9
Ground Clearance, Front (in): 9.1
Ground Clearance, Rear (in): 9.1
Cargo Box Length @ Floor (in): 78.7
Cargo Box Width @ Top, Rear (in): 63.8
Cargo Box Width @ Floor (in): 63.8
Cargo Box Width @ Wheelhousings (in): 50
Cargo Box (Area) Height (in): 20.8
Passenger Capacity: 5
Front Head Room (in): 41
Front Leg Room (in): 41.8
Front Shoulder Room (in): 63.3
Front Hip Room (in): 60.8
Second Head Room (in): 40.4
Second Leg Room (in): 38.5
Second Shoulder Room (in): 63.6
Second Hip Room (in): 60.3
Vehicle Name: Nissan Titan XD
Body Style: Crew Cab
Body Code: T
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 3 different trims.
MSRP
$66,760
Invoice
$62,651
Description
5.6 L/339, 400 @ 5800, Automatic w/OD
Fuel Economy
This model has 3 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
5.6 L/339, 400 @ 5800, Automatic w/OD
