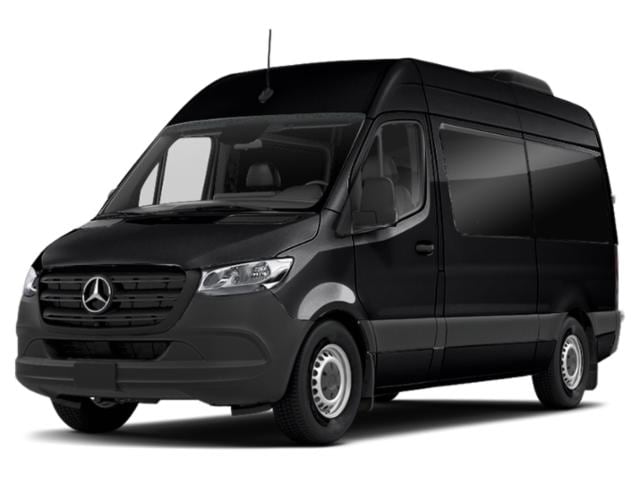

2024 Mercedes-Benz Sprinter Passenger Van
$55,800 - $68,000Starting MSRP
Jet Black
Model Highlights
Transmission
Automatic w/OD
Body Type
Van
Seatings
15 Seats
Overview
The 2024 Mercedes-Benz Sprinter is powered by a 2.0L turbocharged 4-cylinder engine making 170, 188 or 211 horsepower depending on the trim paired to a 9-speed automatic gearbox which provides strong acceleration, even with a full load. The...
Build Your Own 2024 Mercedes-Benz Sprinter Passenger Van
What’s new in the 2024 model?
The Mercedes-Benz Sprinter drops the 1500 model for 2024 but otherwise carries over with minimal changes.
Looking for alternatives to the Mercedes-Benz Sprinter Passenger Van?
Start Comparing NowColors
Exterior
Jet Black
Obsidian Black Metallic
Black Blue
Brilliant Blue
Cavansite Blue Metallic
Steel Blue
Vanda Blue
Blue Grey
Graphite Grey
Pebble Grey
Selenite Grey Metallic
Silver Grey
Stone Grey
Tenorite Grey Metallic
Aqua Green
Jupiter Red
Sunset Red
Velvet Red
Iridium Silver
Arctic White
Grey White
Calcite Yellow
Specs
Rear Door Type: Split Swing-Out
Engine Order Code: M5N
Engine Type: Intercooled Turbo Diesel I-4
Displacement: 2.0 L/119
Fuel System: Diesel Direct Injection
SAE Net Horsepower @ RPM: 211 @ 3800
SAE Net Torque @ RPM: 332 @ 1400
Engine Oil Cooler: None
Drivetrain: Rear Wheel Drive
Trans Order Code: G43
Trans Type: 9
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.53
Second Gear Ratio (:1): 3.24
Third Gear Ratio (:1): 2.25
Fourth Gear Ratio (:1): 1.64
Fifth Gear Ratio (:1): 1.21
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 4.90
Trans PTO Access: No
Transfer Case Model: None
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.86
Eighth Gear Ratio (:1): 0.72
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Cold Cranking Amps @ 0° F (Primary): 850
Cold Cranking Amps @ 0° F (2nd): 850
Maximum Alternator Capacity (amps): 280
Base Curb Weight (lbs): 5853
Curb Weight - Front (lbs): 2634
Curb Weight - Rear (lbs): 3219
Gross Vehicle Weight Rating Cap (lbs): 9480
Gross Combined Wt Rating (lbs): 13930
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
Maximum Trailering Capacity (lbs): 5000
Suspension Type - Front: Strut
Suspension Type - Rear: Leaf
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 3.92
Axle Ratio (:1) - Rear: 3.92
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Drum - Rear (Yes or ):
Front Tire Order Code: RM0
Rear Tire Order Code: RM0
Spare Tire Order Code:
Front Tire Size: LT245/75R16
Rear Tire Size: LT245/75R16
Spare Tire Size: Full-Size
Revolutions/Mile @ 45 mph - Front: 662
Revolutions/Mile @ 45 mph - Rear: 662
Front Wheel Size (in): 16 X 6.5
Rear Wheel Size (in): 16 X 6.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 47.2
Fuel Tank Capacity, Approx (gal): 24.5
Side Door Type: Sliding
Wheelbase (in): 170
Length, Overall (in): 274.3
Width, Max w/o mirrors (in): 80
Height, Overall (in): 113.5
Ground to Top of Load Floor (in): 26.3
Ground Clearance, Front (in): 8
Ground Clearance, Rear (in): 8
Cargo Area Length @ Floor to Seat 3 (in): 48.4
Cargo Area Width @ Beltline (in): 69.8
Cargo Box Width @ Wheelhousings (in): 53
Cargo Box (Area) Height (in): 75.5
Cargo Volume to Seat 3 (ft³): 111.2
Cargo Volume to Seat 4 (ft³): 111.2
Passenger Capacity: 15
Front Head Room (in): 56.4
Front Leg Room (in): 38.9
Front Shoulder Room (in): 67.4
Front Hip Room (in): 63.7
Vehicle Name: Mercedes-Benz Sprinter Passenger Van
Body Style: Passenger Van 170" WB RWD
Body Code: V
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 5 different trims.
MSRP
$68,000
Invoice
$63,240
Description
2.0 L/119, 211 @ 3800, Automatic w/OD
Fuel Economy
This model has 5 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
2.0 L/119, 211 @ 3800, Automatic w/OD
