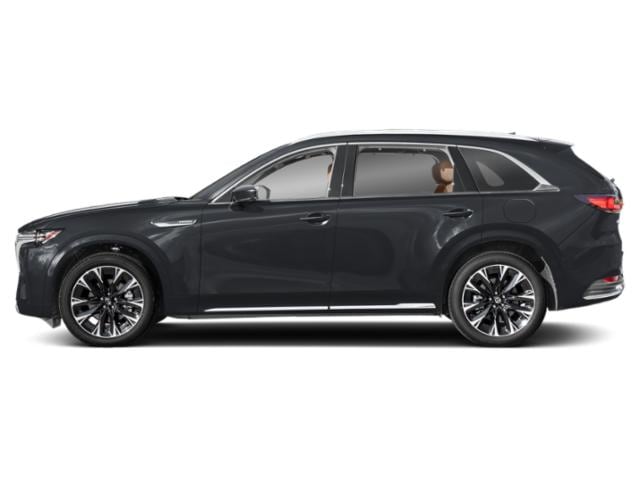

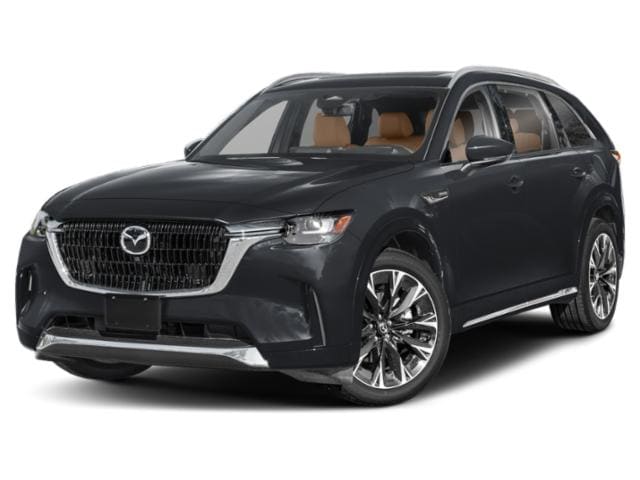

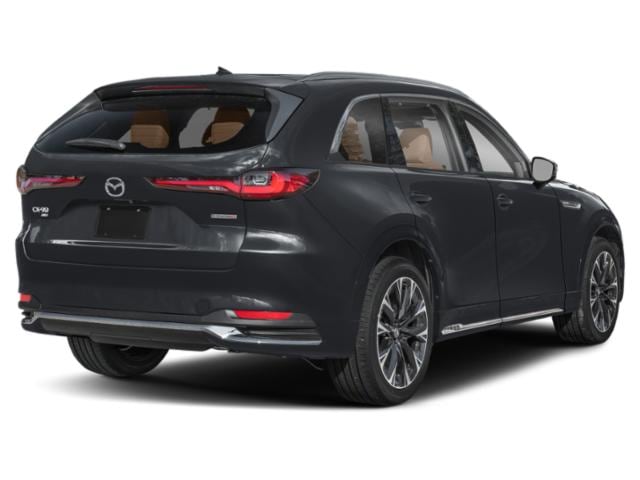

2025 Mazda CX-90
$38,045 - $56,650Starting MSRP
Jet Black Mica
Model Highlights
Fuel Economy
25 MPG Comb.
Transmission
Automatic w/OD
Body Type
SUV
Seatings
6 Seats
Overview
The 2025 Mazda CX-90 comes in six trims: Turbo Select, Turbo Preferred, Turbo Premium Sport, Turbo Premium Plus, Turbo S Premium, and Turbo S Premium Plus.
The CX-90 boasts three rows of seating with room for six, seven or 8 passengers and it...
Build Your Own 2025 Mazda CX-90
What’s new in the 2025 model?
The CX-90 was added to the Mazda lineup in 2024, it rolls into 2025 with minimal changes.
Looking for alternatives to the Mazda CX-90?
Start Comparing NowColors
Exterior
Jet Black Mica
Deep Crystal Blue Mica
Machine Gray Metallic
Artisan Red Premium
Soul Red Crystal
Soul Red Crystal Metallic
Sonic Silver
Platinum Quartz
Rhodium White Premium
Specs
EPA Classification: Standard SUV 4WD
Gross Traction Battery Capacity (kWh): 0.3
Engine Order Code:
Engine Type: Intercooled Turbo Gas/Electric I-6
Displacement: 3.3 L/200
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 340 @ 5000
SAE Net Torque @ RPM: 369 @ 2000
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.26
Second Gear Ratio (:1): 3.30
Third Gear Ratio (:1): 2.22
Fourth Gear Ratio (:1): 1.71
Fifth Gear Ratio (:1): 1.30
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 4.03
Final Drive Axle Ratio (:1): 3.69
Seventh Gear Ratio (:1): 0.82
Eighth Gear Ratio (:1): 0.63
Fuel Economy Est-Combined (MPG): 25
EPA Fuel Economy Est - City (MPG): 23
EPA Fuel Economy Est - Hwy (MPG): 28
Base Curb Weight (lbs): 4901
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 500
Maximum Trailering Capacity (lbs): 5000
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Double Wishbone
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.7
Rear Brake Rotor Diam x Thickness (in): 13.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P275/45HR21
Rear Tire Size: P275/45HR21
Spare Tire Size: Compact
Front Wheel Size (in): 21 X 9.5
Rear Wheel Size (in): 21 X 9.5
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 41.2
Fuel Tank Capacity, Approx (gal): 19.6
Wheelbase (in): 122.8
Length, Overall (in): 201.6
Width, Max w/o mirrors (in): 77.6
Height, Overall (in): 68.7
Track Width, Front (in): 67.1
Track Width, Rear (in): 67.2
Min Ground Clearance (in): 8.1
Liftover Height (in): 31.2
Cargo Area Length @ Floor to Seat 1 (in): 96
Cargo Area Length @ Floor to Seat 2 (in): 52.9
Cargo Area Width @ Beltline (in): 49.8
Cargo Box Width @ Wheelhousings (in): 43.7
Cargo Box (Area) Height (in): 30.1
Cargo Volume to Seat 1 (ft³): 75.2
Cargo Volume to Seat 2 (ft³): 40.1
Cargo Volume to Seat 3 (ft³): 15.9
Passenger Capacity: 6
Passenger Volume (ft³): 141.6
Front Head Room (in): 39.6
Front Leg Room (in): 41.7
Front Shoulder Room (in): 57.2
Front Hip Room (in): 56.2
Second Head Room (in): 38.4
Second Leg Room (in): 39.4
Second Shoulder Room (in): 58.1
Second Hip Room (in): 55.5
Third Head Room (in): 36.8
Third Leg Room (in): 30.4
Third Shoulder Room (in): 53.3
Third Hip Room (in): 43.7
Vehicle Name: Mazda CX-90
Body Style: i-ACTIV AWD Sport Utility
EPA Greenhouse Gas Score: 5.0
Tons/yr of CO2 Emissions @ 15K mi/year: 7.0
Pricing
This model has 6 different trims.
MSRP
$56,650
Invoice
$55,234
Description
3.3 L/200, 340 @ 5000, Automatic w/OD
Fuel Economy
This model has 6 different trims.
City
23 MPG
Hwy
28 MPG
Combined
25 MPG
Description
3.3 L/200, 340 @ 5000, Automatic w/OD
