2025 Mazda CX-90 PHEV
$49,945 - $57,950Starting MSRP
Jet Black Mica
Model Highlights
Transmission
Automatic w/OD
Body Type
SUV
Seatings
7 Seats
Overview
The 2025 Mazda CX-90 PHEV comes in three trims: Preferred, Premium Sport and Premium Plus. The CX-90 boasts three rows of seating with room for seven or 8 passengers and it comes with standard all-wheel drive. This mid-size SUV is powered by a...
Build Your Own 2025 Mazda CX-90 PHEV
What’s new in the 2025 model?
The CX-90 PHEV was added to the Mazda lineup in 2024, it rolls into 2025 with minimal changes.
Looking for alternatives to the Mazda CX-90 PHEV?
Start Comparing NowColors
Exterior

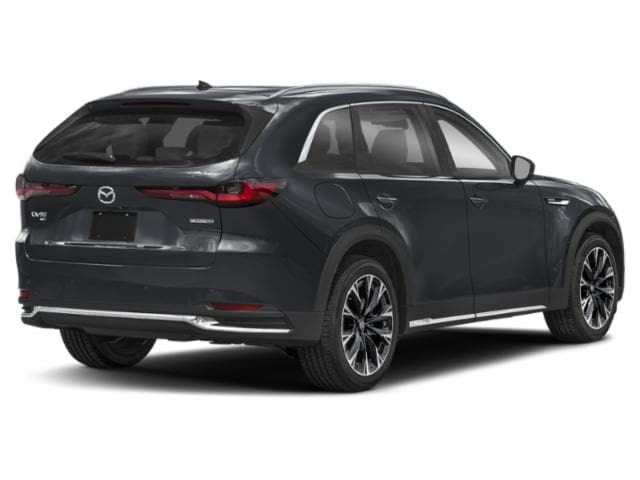

Jet Black Mica
Deep Crystal Blue Mica
Machine Gray Metallic
Artisan Red Premium
Soul Red Crystal
Sonic Silver
Platinum Quartz
Rhodium White Premium
Specs
EPA Classification: Small SUV 4WD
Gross Traction Battery Capacity (kWh): 17.8
Engine Order Code:
Engine Type: Gas/Electric I-4
Displacement: 2.5 L/152
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 323 @ 6000
SAE Net Torque @ RPM: 369 @ 4000
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 5.26
Second Gear Ratio (:1): 3.30
Third Gear Ratio (:1): 2.22
Fourth Gear Ratio (:1): 1.71
Fifth Gear Ratio (:1): 1.30
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 4.03
Final Drive Axle Ratio (:1): 4.44
Seventh Gear Ratio (:1): 0.82
Eighth Gear Ratio (:1): 0.63
Estimated Battery Range (mi): 26.1
Base Curb Weight (lbs): 5267
Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
Dead Weight Hitch - Max Tongue Wt. (lbs): 350
Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
Maximum Trailering Capacity (lbs): 3500
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Double Wishbone
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.7
Rear Brake Rotor Diam x Thickness (in): 13.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P275/45HR21
Rear Tire Size: P275/45HR21
Spare Tire Size: Compact
Front Wheel Size (in): 21 X 9.5
Rear Wheel Size (in): 21 X 9.5
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 41.2
Fuel Tank Capacity, Approx (gal): 18.5
Wheelbase (in): 122.8
Length, Overall (in): 201.6
Width, Max w/o mirrors (in): 77.6
Height, Overall (in): 68.7
Track Width, Front (in): 67.1
Track Width, Rear (in): 67.2
Liftover Height (in): 31
Cargo Area Length @ Floor to Seat 1 (in): 96
Cargo Area Length @ Floor to Seat 2 (in): 52.9
Cargo Area Width @ Beltline (in): 49.8
Cargo Box Width @ Wheelhousings (in): 43.7
Cargo Box (Area) Height (in): 30.1
Cargo Volume to Seat 1 (ft³): 74.2
Cargo Volume to Seat 2 (ft³): 40
Cargo Volume to Seat 3 (ft³): 14.9
Passenger Capacity: 7
Passenger Volume (ft³): 141.6
Front Head Room (in): 39.6
Front Leg Room (in): 41.7
Front Shoulder Room (in): 57.2
Front Hip Room (in): 56.2
Second Head Room (in): 38.4
Second Leg Room (in): 39.4
Second Shoulder Room (in): 58.1
Second Hip Room (in): 55.5
Third Head Room (in): 36.8
Third Leg Room (in): 30.4
Third Shoulder Room (in): 53.3
Third Hip Room (in): 43.7
Vehicle Name: Mazda CX-90 PHEV
Body Style: i-ACTIV AWD Sport Utility
Pricing
This model has 3 different trims.
MSRP
$57,950
Invoice
$56,501
Description
2.5 L/152, 323 @ 6000, Automatic w/OD
Fuel Economy
This model has 3 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
2.5 L/152, 323 @ 6000, Automatic w/OD
