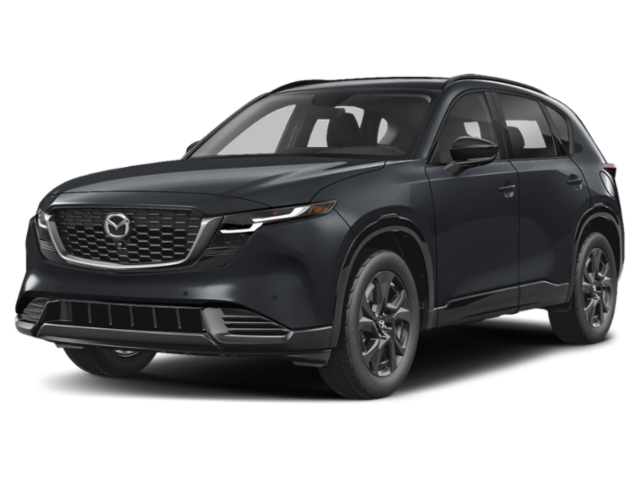

2026 Mazda CX-5
$29,990 - $38,990Starting MSRP
Jet Black Mica
Model Highlights
Transmission
AUTO
Body Type
SUV
Seatings
5 Seats
Overview
The 2026 Mazda CX-5 has all-wheel drive across all five trim levels: 2.5 S, Select, Preferred, Premium, and Premium Plus. The Mazda CX-5 is powered by one 2.5L 4-cylinder engine, producing 187 horsepower and 185 lbs.-ft of torque, mated to a...
Build Your Own 2026 Mazda CX-5
What’s new in the 2026 model?
For 2026, the fully redesigned Mazda CX-5 offers a more spacious and technologically advanced cabin, featuring a 4.5-inch wheelbase extension that ...
Looking for alternatives to the Mazda CX-5?
Start Comparing NowColors
Exterior

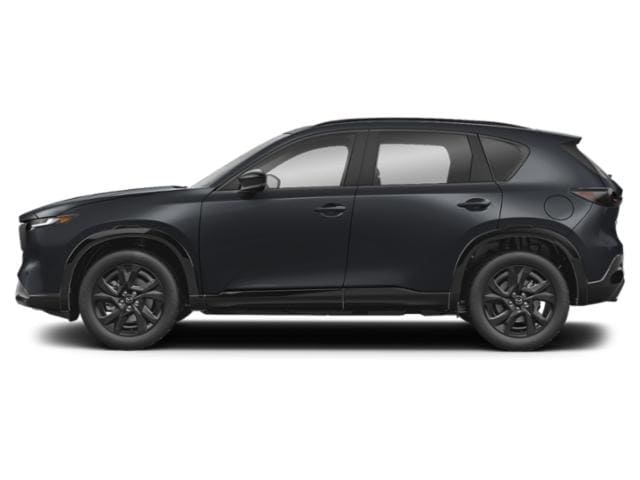

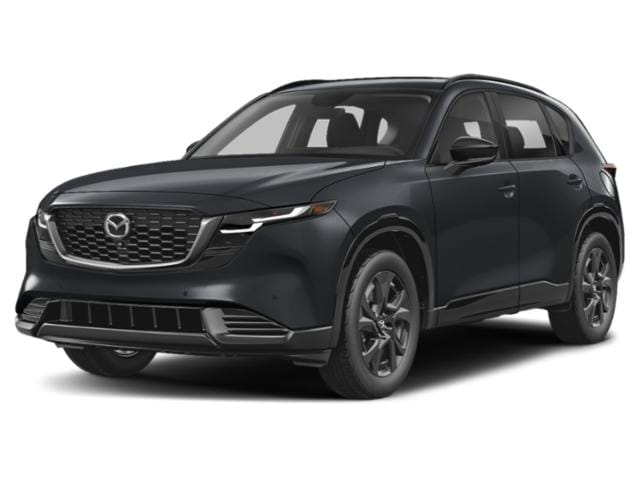

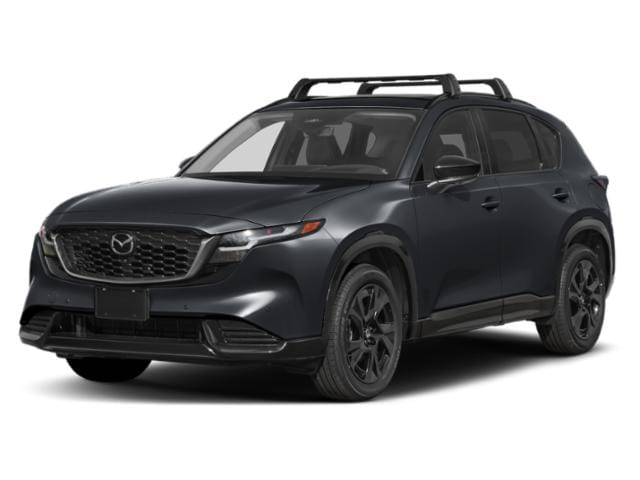

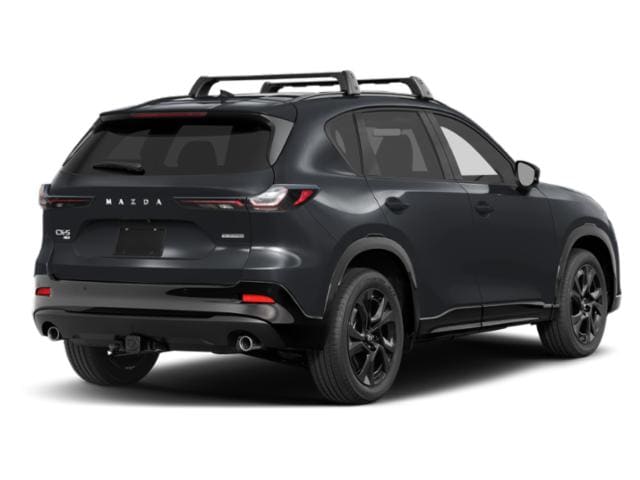

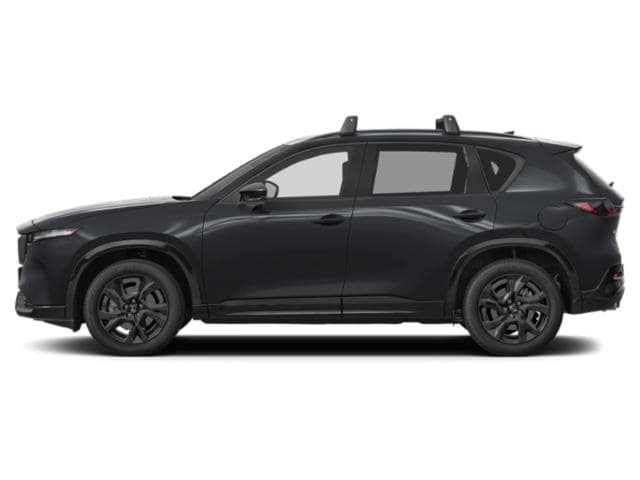

Jet Black Mica
Navy Blue Mica
Aero Gray Metallic
Machine Gray Metallic
Polymetal Gray Metallic
Soul Red Crystal Metallic
Rhodium White Metallic
Specs
EPA Classification: Small SUV 4WD
Engine Order Code:
Engine Type: Regular Unleaded I-4
Displacement: 2.5 L/152
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 187 @ 6000
SAE Net Torque @ RPM: 185 @ 4000
Drivetrain: All Wheel Drive
Trans Order Code:
Trans Type: 6
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 3.55
Second Gear Ratio (:1): 2.02
Third Gear Ratio (:1): 1.45
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.71
Sixth Gear Ratio (:1): 0.60
Reverse Ratio (:1): 3.89
Final Drive Axle Ratio (:1): 4.62
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Maximum Alternator Capacity (amps): 100
Base Curb Weight (lbs): 3856
Dead Weight Hitch - Max Trailer Wt. (lbs): 1500
Dead Weight Hitch - Max Tongue Wt. (lbs): 150
Wt Distributing Hitch - Max Trailer Wt. (lbs): 1500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 150
Maximum Trailering Capacity (lbs): 1500
Suspension Type - Front: Strut
Suspension Type - Rear: Multi-Link
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Multi-Link
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.9
Rear Brake Rotor Diam x Thickness (in): 11.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P225/55VR19
Rear Tire Size: P225/55VR19
Spare Tire Size: Compact
Front Wheel Size (in): 19 X 7
Rear Wheel Size (in): 19 X 7
Spare Wheel Size (in): Compact
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 36.8
Fuel Tank Capacity, Approx (gal): 15.3
Wheelbase (in): 110.8
Length, Overall (in): 184.6
Width, Max w/o mirrors (in): 73.2
Height, Overall (in): 66.7
Track Width, Front (in): 63.2
Track Width, Rear (in): 64
Min Ground Clearance (in): 8.2
Liftover Height (in): 30.7
Cargo Area Length @ Floor to Seat 2 (in): 39.1
Cargo Area Width @ Beltline (in): 57.5
Cargo Box Width @ Wheelhousings (in): 41.3
Cargo Box (Area) Height (in): 33.7
Cargo Volume to Seat 1 (ft³): 66.5
Cargo Volume to Seat 2 (ft³): 33.7
Passenger Capacity: 5
Passenger Volume (ft³): 104.5
Front Head Room (in): 39.2
Front Leg Room (in): 41.7
Front Shoulder Room (in): 57.6
Front Hip Room (in): 55.2
Second Head Room (in): 40.2
Second Leg Room (in): 39.9
Second Shoulder Room (in): 55.6
Second Hip Room (in): 52.4
Vehicle Name: Mazda CX-5
Body Style: i-ACTIV AWD Sport Utility
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 5 different trims.
MSRP
$38,990
Invoice
$38,015
Description
2.5 L/152, 187 @ 6000, AUTO
Fuel Economy
This model has 5 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
2.5 L/152, 187 @ 6000, AUTO
