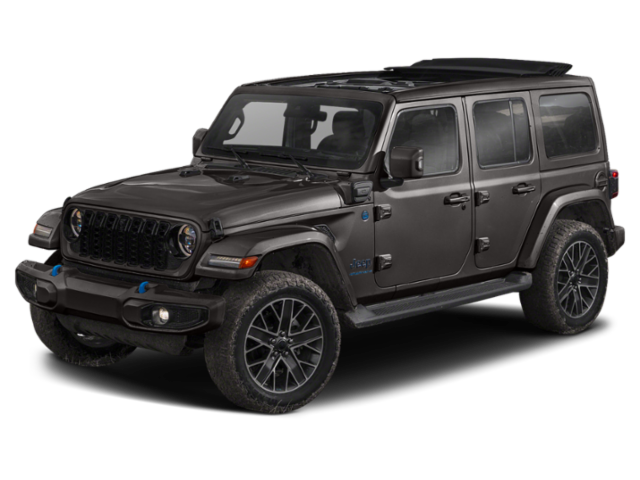

2024 Jeep Wrangler 4xe
$50,695 - $67,795Starting MSRP
Black Clearcoat
Model Highlights
Fuel Economy
20 MPG Comb.
Transmission
Automatic w/OD
Body Type
Convertible, SUV
Seatings
5 Seats
Overview
The Wrangler 4xe is available as a four-door 4x4 with four trims, Sport, Sahara, High Altitude and Rubicon. The Wrangler 4xe is powered by a turbocharged 2L four-cylinder engine mated to an 8-speed automatic transmission that creates 270...
Build Your Own 2024 Jeep Wrangler 4xe
What’s new in the 2024 model?
The Jeep Wrangler 4xe gets a larger 12.3-inch touchscreen and a refreshed front grille for 2024.
Looking for alternatives to the Jeep Wrangler 4xe?
Start Comparing NowColors
Exterior
Black Clearcoat
Sarge Green Clearcoat
Silver Zynith Clearcoat
Bright White Clearcoat
Specs
Gross Traction Battery Capacity (kWh): 17.3
Engine Order Code: ECX
Engine Type: Intercooled Turbo Gas/Electric I-4
Displacement: 2.0 L/122
Fuel System: Gasoline Direct Injection
SAE Net Horsepower @ RPM: 375 @ 5250
SAE Net Torque @ RPM: 470 @ 3000
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: DFY
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 3.14
Third Gear Ratio (:1): 2.11
Fourth Gear Ratio (:1): 1.67
Fifth Gear Ratio (:1): 1.28
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.32
Trans PTO Access: No
Transfer Case Model: Manual
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.84
Eighth Gear Ratio (:1): 0.67
Fuel Economy Est-Combined (MPG): 20
EPA MPG Equivalent - Combined: 49.003
Estimated Battery Range (mi): 22.0
Cold Cranking Amps @ 0° F (Primary): 730
Cold Cranking Amps @ 0° F (2nd): 730
Base Curb Weight (lbs): 5265
Gross Axle Wt Rating - Front (lbs): 3100
Gross Axle Wt Rating - Rear (lbs): 3550
Curb Weight - Front (lbs): 2589
Curb Weight - Rear (lbs): 2676
Gross Vehicle Weight Rating Cap (lbs): 6450
Gross Combined Wt Rating (lbs): 9200
Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
Dead Weight Hitch - Max Tongue Wt. (lbs): 350
Wt Distributing Hitch - Max Trailer Wt. (lbs): 3500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 350
Maximum Trailering Capacity (lbs): 3500
Suspension Type - Front: Leading Link
Suspension Type - Rear: Trailing Arm
Axle Type - Front: Non-Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 3.73
Axle Ratio (:1) - Rear: 3.73
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.9
Rear Brake Rotor Diam x Thickness (in): 13.6
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TTQ
Rear Tire Order Code: TTQ
Spare Tire Order Code:
Front Tire Size: P275/55SR20
Rear Tire Size: P275/55SR20
Spare Tire Size: Full-Size
Front Wheel Size (in): 20 X 8
Rear Wheel Size (in): 20 X 8
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Re-Circulating Ball
Turning Diameter - Curb to Curb (ft): 38.8
Fuel Tank Capacity, Approx (gal): 17.2
Wheelbase (in): 118.4
Length, Overall (in): 188.4
Width, Max w/o mirrors (in): 73.9
Height, Overall (in): 73.5
Track Width, Front (in): 64.4
Track Width, Rear (in): 64.4
Min Ground Clearance (in): 10.1
Liftover Height (in): 30
Cargo Area Width @ Beltline (in): 47.9
Cargo Box Width @ Wheelhousings (in): 41.5
Cargo Box (Area) Height (in): 35.7
Cargo Volume to Seat 1 (ft³): 67.4
Cargo Volume to Seat 2 (ft³): 27.7
Passenger Capacity: 5
Front Head Room (in): 40.7
Front Leg Room (in): 40.8
Front Shoulder Room (in): 55.8
Front Hip Room (in): 53.9
Second Head Room (in): 40.2
Second Leg Room (in): 38.2
Second Shoulder Room (in): 55.8
Second Hip Room (in): 55.9
Vehicle Name: Jeep Wrangler 4xe
Body Style: Sport Utility
Body Code: S
EPA Greenhouse Gas Score: 7.0
Pricing
This model has 7 different trims.
MSRP
$67,795
Invoice
$66,778
Description
2.0 L/122, 375 @ 5250, Automatic w/OD
Fuel Economy
This model has 7 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
20 MPG
Description
2.0 L/122, 375 @ 5250, Automatic w/OD
