2022 Jeep Grand Wagoneer

$87,995 - $107,995Starting MSRP

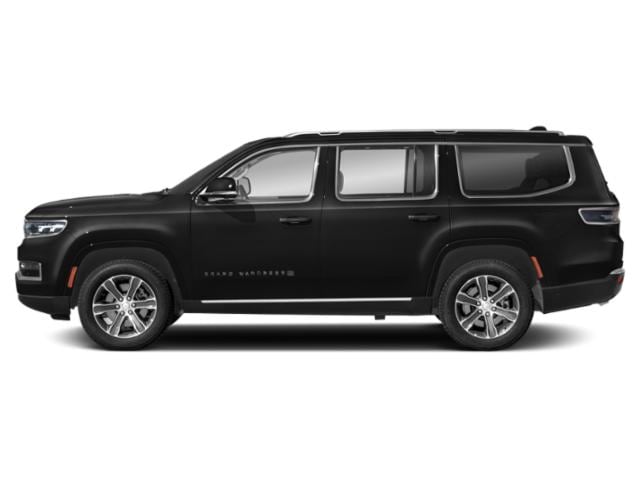

2022 Jeep Grand Wagoneer Diamond Black Crystal Pearlcoat
2022 Jeep Grand Wagoneer Diamond Black Crystal Pearlcoat
2022 Jeep Grand Wagoneer Diamond Black Crystal Pearlcoat

Diamond Black Crystal Pearlcoat

Model Highlights
Fuel Economy

15 MPG Comb.

Transmission

Automatic w/OD

Body Type

SUV

Seatings

7 Seats

Overview

The Jeep Grand Wagoneer comes in three basic 4x4 trims, Series I, Series II and Series III. The Grand Wagoneer is powered by a 6.4L V8 with 471 horsepower mated to an 8-speed automatic transmission. The Grand Wagoneer is a full-size three-row...

What’s new in the 2022 model?

The Jeep Grand Wagoneer is all-new for 2022.

car
Jeep Grand Wagoneer
Looking for alternatives to the Jeep Grand Wagoneer?
Start Comparing Now

Colors

Exterior

Diamond Black Crystal Pearlcoat
Midnight Sky
Rocky Mountain Pearlcoat
Baltic Gray Metallic Clearcoat
River Rock
Ember Pearlcoat
Velvet Red Pearlcoat
Silver Zynith
Bright White Clearcoat
Luxury White Pearlcoat

Specs

Engine Order Code: ESG
Engine Type: Premium Unleaded V-8
Displacement: 6.4 L/392
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 471 @ 6000
SAE Net Torque @ RPM: 455 @ 4400
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: DFR
Trans Type: 8
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 3.14
Third Gear Ratio (:1): 2.11
Fourth Gear Ratio (:1): 1.67
Fifth Gear Ratio (:1): 1.28
Sixth Gear Ratio (:1): 1.00
Reverse Ratio (:1): 3.29
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 0.84
Eighth Gear Ratio (:1): 0.67
Fuel Economy Est-Combined (MPG): 15
EPA Fuel Economy Est - City (MPG): 13
EPA Fuel Economy Est - Hwy (MPG): 18
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd): 800
Maximum Alternator Capacity (amps): 240
Base Curb Weight (lbs): 6420
Gross Vehicle Weight Rating Cap (lbs): 7700
Gross Combined Wt Rating (lbs): 15000
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 8260
Wt Distributing Hitch - Max Tongue Wt. (lbs): 826
Maximum Trailering Capacity (lbs): 8260
Suspension Type - Front: Short And Long Arm
Suspension Type - Rear: Multi-Link
Axle Type - Front: Independent
Axle Type - Rear: Independent
Axle Ratio (:1) - Front: 3.92
Axle Ratio (:1) - Rear: 3.92
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14.9
Rear Brake Rotor Diam x Thickness (in): 14.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TY4
Rear Tire Order Code: TY4
Spare Tire Order Code:
Front Tire Size: P285/45TR22
Rear Tire Size: P285/45TR22
Spare Tire Size: Full-Size
Front Wheel Size (in): 22 X 9
Rear Wheel Size (in): 22 X 9
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 38
Fuel Tank Capacity, Approx (gal): 26.5
Wheelbase (in): 123
Length, Overall (in): 214.7
Width, Max w/o mirrors (in): 83.6
Height, Overall (in): 75.6
Track Width, Front (in): 68.5
Track Width, Rear (in): 68.3
Min Ground Clearance (in): 10
Liftover Height (in): 31.9
Cargo Volume to Seat 1 (ft³): 94.2
Cargo Volume to Seat 2 (ft³): 70.9
Cargo Volume to Seat 3 (ft³): 27.4
Passenger Capacity: 7
Front Head Room (in): 41.3
Front Leg Room (in): 40.9
Front Shoulder Room (in): 66.1
Front Hip Room (in): 63.4
Second Head Room (in): 40
Second Leg Room (in): 42.7
Second Shoulder Room (in): 65.2
Second Hip Room (in): 63
Third Head Room (in): 39
Third Leg Room (in): 36.6
Third Shoulder Room (in): 64.4
Third Hip Room (in): 51.6
Vehicle Name: Jeep Grand Wagoneer
Body Style: Sport Utility
Body Code: S
Tons/yr of CO2 Emissions @ 15K mi/year: 11.8

Pricing

This model has 4 different trims.

MSRP
$107,995
Invoice
$104,701
Description
6.4 L/392, 471 @ 6000, Automatic w/OD
See All Pricings

Fuel Economy

This model has 4 different trims.

City
13 MPG
Hwy
18 MPG
Combined
15 MPG
Description
6.4 L/392, 471 @ 6000, Automatic w/OD
See All MPGs
