2024 Ford Ranger
$32,820 - $55,720Starting MSRP

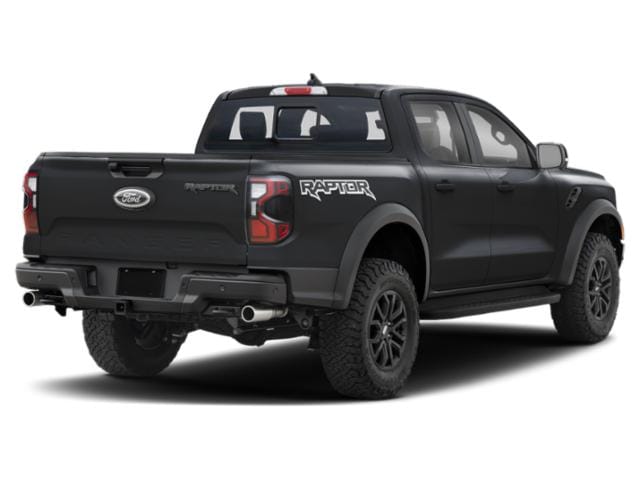

Shadow Black
Model Highlights
Fuel Economy
17 MPG Comb.
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats
Overview
The 2024 Ford Ranger is powered by a 270 horsepower 2.3L turbocharged four-cylinder engine mated to a 10-speed automatic transmission while the 4x4 Raptor trim is powered by a 3.6 twin turbo V6 with 405 horsepower.
There is only one body...
Build Your Own 2024 Ford Ranger
What’s new in the 2024 model?
The Ford Ranger is fully redesigned for 2024.
Looking for alternatives to the Ford Ranger?
Start Comparing NowColors
Exterior
Shadow Black
Velocity Blue Metallic
Azure Gray Metallic Tri-Coat
Cactus Grey
Carbonized Gray Metallic
Shelter Green Metallic
Hot Pepper Red Metallic Tinted Clearcoat
Iconic Silver Metallic
Oxford White
Specs
Engine Order Code: 99R
Engine Type: Twin Turbo Premium Unleaded V-6
Displacement: 3.0 L/180
Fuel System: Port/Direct Injection
SAE Net Horsepower @ RPM: 405 @ 5750
SAE Net Torque @ RPM: 430 @ 3250
Engine Oil Cooler: None
Drivetrain: Four Wheel Drive
Trans Order Code: 44T
Trans Type: 10
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 3.00
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27
Reverse Ratio (:1): 4.88
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Fuel Economy Est-Combined (MPG): 17
EPA Fuel Economy Est - City (MPG): 16
EPA Fuel Economy Est - Hwy (MPG): 18
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd): 800
Maximum Alternator Capacity (amps): 150
Base Curb Weight (lbs): 5325
Gross Axle Wt Rating - Front (lbs): 3130
Gross Axle Wt Rating - Rear (lbs): 3370
Curb Weight - Front (lbs): 2554
Curb Weight - Rear (lbs): 1887
Gross Vehicle Weight Rating Cap (lbs): 6790
Gross Combined Wt Rating (lbs): 11465
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 5510
Wt Distributing Hitch - Max Tongue Wt. (lbs): 551
Maximum Trailering Capacity (lbs): 5510
Suspension Type - Front: Short And Long Arm
Suspension Type - Rear: Trailing Arm
Spring Capacity - Front (lbs): 3130
Spring Capacity - Rear (lbs): 3370
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front (lbs): 3130
Axle Capacity - Rear (lbs): 3370
Axle Ratio (:1) - Front: 4.27
Axle Ratio (:1) - Rear: 4.27
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.2
Rear Brake Rotor Diam x Thickness (in): 12.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: LT285/70SR17
Rear Tire Size: LT285/70SR17
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 3263
Rear Tire Capacity (lbs): 4079
Front Wheel Size (in): 17 X 8
Rear Wheel Size (in): 17 X 8
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 43.3
Fuel Tank Capacity, Approx (gal): 20.3
Wheelbase (in): 128.7
Length, Overall (in): 210.9
Width, Max w/o mirrors (in): 79
Height, Overall (in): 75.9
Overhang, Front (in): 35.8
Ground to Top of Load Floor (in): 36.1
Ground Clearance, Front (in): 10.7
Ground Clearance, Rear (in): 10.7
Cargo Box Length @ Floor (in): 59.6
Cargo Box Width @ Top, Rear (in): 62.4
Cargo Box Width @ Floor (in): 62.4
Cargo Box Width @ Wheelhousings (in): 48.2
Cargo Box (Area) Height (in): 20.9
Tailgate Width (in): 55.4
Cargo Volume (ft³): 43.5
Passenger Capacity: 5
Front Head Room (in): 41
Front Leg Room (in): 43.7
Front Shoulder Room (in): 57.1
Front Hip Room (in): 55.9
Second Head Room (in): 38.3
Second Leg Room (in): 38.3
Second Shoulder Room (in): 56.7
Second Hip Room (in): 54.1
Vehicle Name: Ford Ranger
Body Style: SuperCrew
Body Code: T
EPA Greenhouse Gas Score: 3.0
Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
Pricing
This model has 7 different trims.
MSRP
$55,720
Invoice
$53,491
Description
3.0 L/180, 405 @ 5750, Automatic w/OD
Fuel Economy
This model has 7 different trims.
City
16 MPG
Hwy
18 MPG
Combined
17 MPG
Description
3.0 L/180, 405 @ 5750, Automatic w/OD
