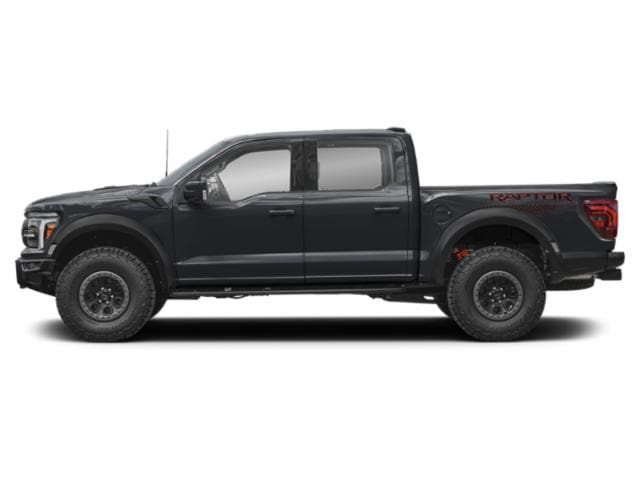

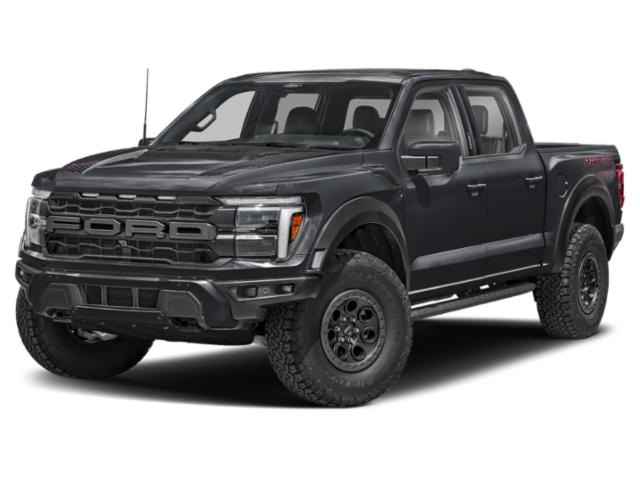

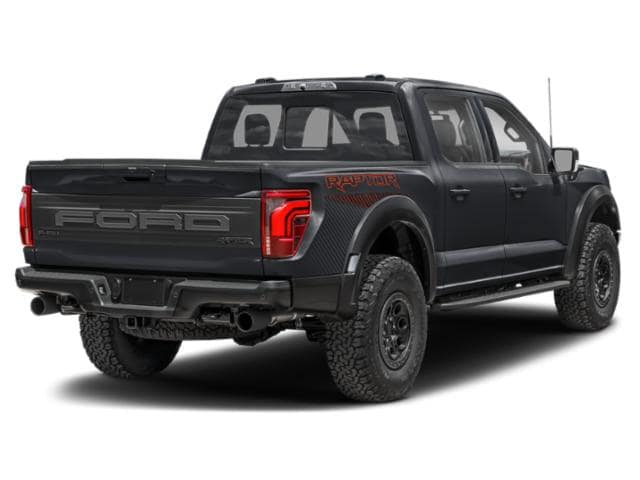

2025 Ford F-150
$37,450 - $79,005Starting MSRP



Agate Black Metallic
Model Highlights
Fuel Economy
16 MPG Comb.
Transmission
Automatic w/OD
Body Type
Truck
Seatings
5 Seats

Build Your Own 2025 Ford F-150

Looking for alternatives to the Ford F-150?
Start Comparing NowColors
Exterior
Agate Black Metallic
Antimatter Blue Metallic
Carbonized Gray Metallic
Shelter Green
Rapid Red Metallic Tinted Clearcoat
Oxford White
Space White Metallic
Specs
Engine Order Code: 99G
Engine Type: Twin Turbo Regular Unleaded V-6
Displacement: 3.5 L/213
Fuel System: Port/Direct Injection
SAE Net Horsepower @ RPM: 450 @ 5850
SAE Net Torque @ RPM: 510 @ 3500
Engine Oil Cooler: Regular Duty
Drivetrain: Four Wheel Drive
Trans Order Code: 44G
Trans Type: 10
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.70
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27
Reverse Ratio (:1): 4.87
Trans PTO Access: No
Transfer Case Model: Electronic
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Fuel Economy Est-Combined (MPG): 16 (2024)
EPA Fuel Economy Est - City (MPG): 15 (2024)
EPA Fuel Economy Est - Hwy (MPG): 18 (2024)
Cold Cranking Amps @ 0° F (Primary): 800
Cold Cranking Amps @ 0° F (2nd): 800
Maximum Alternator Capacity (amps): 240
Base Curb Weight (lbs): 5863
Gross Axle Wt Rating - Front (lbs): 3800
Gross Axle Wt Rating - Rear (lbs): 3850
Curb Weight - Front (lbs): 3330
Curb Weight - Rear (lbs): 2533
Gross Vehicle Weight Rating Cap (lbs): 7350
Gross Combined Wt Rating (lbs): 14600
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
Maximum Trailering Capacity (lbs): 8200
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Multi-Link
Spring Capacity - Front (lbs): 3800
Spring Capacity - Rear (lbs): 3850
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Capacity - Front (lbs): 3800
Axle Capacity - Rear (lbs): 3850
Axle Ratio (:1) - Front: 4.10
Axle Ratio (:1) - Rear: 4.10
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13.8
Rear Brake Rotor Diam x Thickness (in): 13.7
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: LT315/70SR17
Rear Tire Size: LT315/70SR17
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 3800
Rear Tire Capacity (lbs): 3850
Front Wheel Size (in): 17 X 8.5
Rear Wheel Size (in): 17 X 8.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 47.9
Fuel Tank Capacity, Approx (gal): 36
Wheelbase (in): 145
Length, Overall (in): 232.6
Width, Max w/o mirrors (in): 79.8
Height, Overall (in): 79.8
Overhang, Front (in): 37
Ground to Top of Load Floor (in): 37
Ground Clearance, Front (in): 12
Ground Clearance, Rear (in): 12
Cargo Box Length @ Floor (in): 66
Cargo Box Width @ Top, Rear (in): 65.2
Cargo Box Width @ Floor (in): 65.2
Cargo Box Width @ Wheelhousings (in): 50.6
Cargo Box (Area) Height (in): 21.4
Tailgate Width (in): 60.3
Cargo Volume (ft³): 52.8
Passenger Capacity: 5
Front Head Room (in): 40.8
Front Leg Room (in): 43.9
Front Shoulder Room (in): 66.6
Front Hip Room (in): 62.5
Second Head Room (in): 40.4
Second Leg Room (in): 43.6
Second Shoulder Room (in): 65.8
Second Hip Room (in): 62.6
Vehicle Name: Ford F-150
Body Style: SuperCrew Cab
Body Code: T
Tons/yr of CO2 Emissions @ 15K mi/year: 11.0 (2024)
Pricing
This model has 26 different trims.
MSRP
$79,005
Invoice
$73,870
Description
3.5 L/213, 450 @ 5850, Automatic w/OD
Fuel Economy
This model has 26 different trims.
City
15 MPG
Hwy
18 MPG
Combined
16 MPG
Description
3.5 L/213, 450 @ 5850, Automatic w/OD
