2024 Ford F-150 Lightning
$54,995 - $84,995Starting MSRP

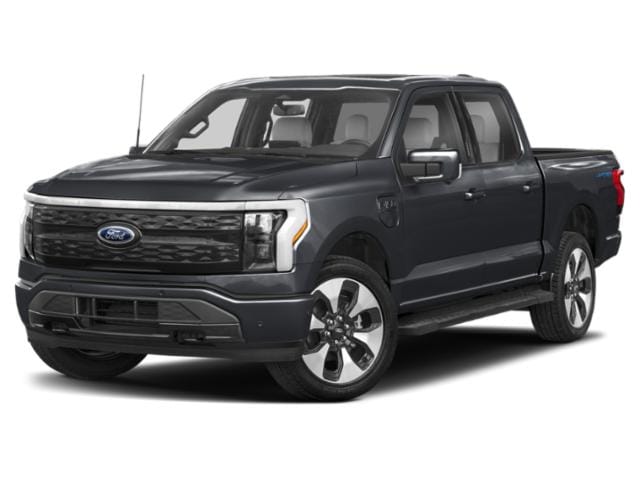

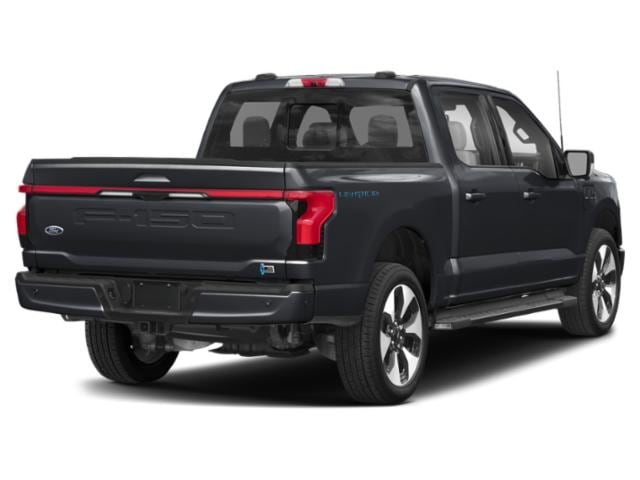

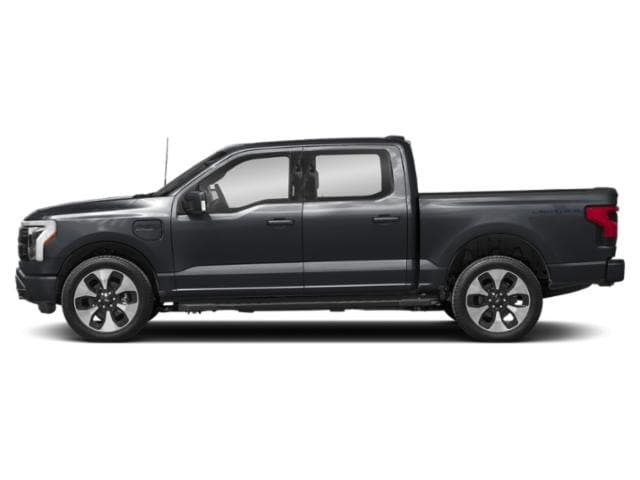

Agate Black Metallic
Model Highlights
Transmission
Automatic
Body Type
Truck
Seatings
5 Seats
Overview
The F-150 Lightning has to be many things to many people. From work truck to cruiser, off-road vehicle to boat hauler, there is an F-150 Lightning for virtually every task. As a result, the lineup is diverse.
Rather than talking about how many...
Build Your Own 2024 Ford F-150 Lightning
What’s new in the 2024 model?
Part of the F-150 Lightning, introduced in 2022. For 2024, a new Flash trim has been added to the lineup along with some minor updates to standard ...
Looking for alternatives to the Ford F-150 Lightning?
Start Comparing NowColors
Exterior
Agate Black Metallic
Antimatter Blue Metallic
Avalanche
Carbonized Gray Metallic
Rapid Red Metallic Tinted Clearcoat
Iconic Silver Metallic
Star White Metallic Tri-Coat
Specs
Usable/net Traction Battery Capacity (kWh): 131.0
Engine Order Code: 997
Engine Type: Electric
SAE Net Horsepower @ RPM: 580
SAE Net Torque @ RPM: 775
Engine Oil Cooler: None
Drivetrain: All Wheel Drive
Trans Order Code: 44L
Trans Type: 1
Trans Description Cont.: Automatic
Trans Description Cont. Again:
Trans PTO Access: No
Transfer Case Model: None
Transfer Case Power Take Off: No
EPA MPG Equivalent - City: 73.0
EPA MPG Equivalent - Hwy: 60.0
EPA MPG Equivalent - Combined: 65.997
Estimated Battery Range (mi): 300.0
Base Curb Weight (lbs): 6893
Gross Axle Wt Rating - Front (lbs): 4050
Gross Axle Wt Rating - Rear (lbs): 4800
Curb Weight - Front (lbs): 3461
Curb Weight - Rear (lbs): 3432
Gross Vehicle Weight Rating Cap (lbs): 8550
Gross Combined Wt Rating (lbs): 15900
Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
Dead Weight Hitch - Max Tongue Wt. (lbs): 500
Wt Distributing Hitch - Max Trailer Wt. (lbs): 8500
Wt Distributing Hitch - Max Tongue Wt. (lbs): 850
Maximum Trailering Capacity (lbs): 8500
Suspension Type - Front: Double Wishbone
Suspension Type - Rear: Trailing Arm
Spring Capacity - Front (lbs): 4050
Spring Capacity - Rear (lbs): 4800
Axle Type - Front: Independent
Axle Type - Rear: Independent
Axle Capacity - Front (lbs): 3900
Axle Capacity - Rear (lbs): 4150
Axle Ratio (:1) - Front: 9.61
Axle Ratio (:1) - Rear: 9.61
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 14
Rear Brake Rotor Diam x Thickness (in): 13.8
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: P275/50SR22
Rear Tire Size: P275/50SR22
Spare Tire Size: Full-Size
Front Tire Capacity (lbs): 3900
Rear Tire Capacity (lbs): 4332
Front Wheel Size (in): 22 X 8.5
Rear Wheel Size (in): 22 X 8.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 47.8
Wheelbase (in): 145
Length, Overall (in): 231.7
Width, Max w/o mirrors (in): 79.9
Height, Overall (in): 77.2
Overhang, Front (in): 37.8
Cargo Box Length @ Floor (in): 66
Cargo Box Width @ Top, Rear (in): 65.2
Cargo Box Width @ Floor (in): 65.2
Cargo Box Width @ Wheelhousings (in): 50.6
Cargo Box (Area) Height (in): 21.4
Tailgate Width (in): 60.3
Cargo Volume (ft³): 52.8
Passenger Capacity: 5
Front Head Room (in): 40.8
Front Leg Room (in): 43.9
Front Shoulder Room (in): 66.7
Front Hip Room (in): 62.5
Second Head Room (in): 40.4
Second Leg Room (in): 43.6
Second Shoulder Room (in): 66
Second Hip Room (in): 62.6
Vehicle Name: Ford F-150 Lightning
Body Style: SuperCrew Cab
Body Code: T
EPA Greenhouse Gas Score: 10.0
Pricing
This model has 5 different trims.
MSRP
$84,995
Invoice
$81,595
Description
undefined, 580, Automatic
Fuel Economy
This model has 5 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
undefined, 580, Automatic
