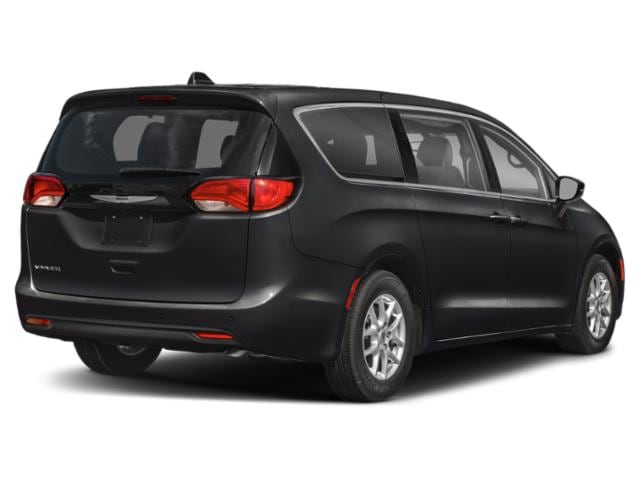

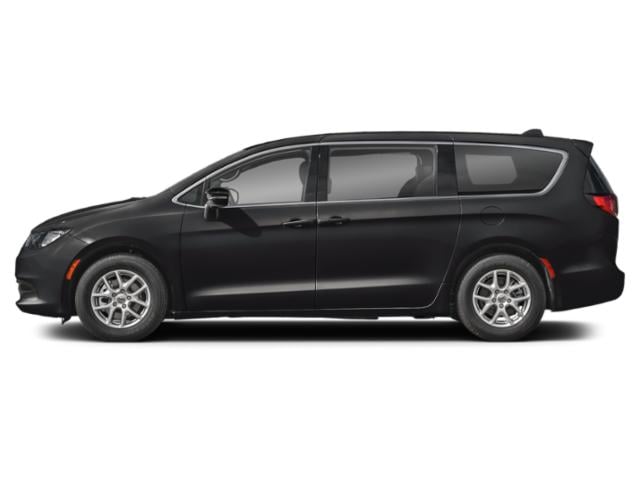

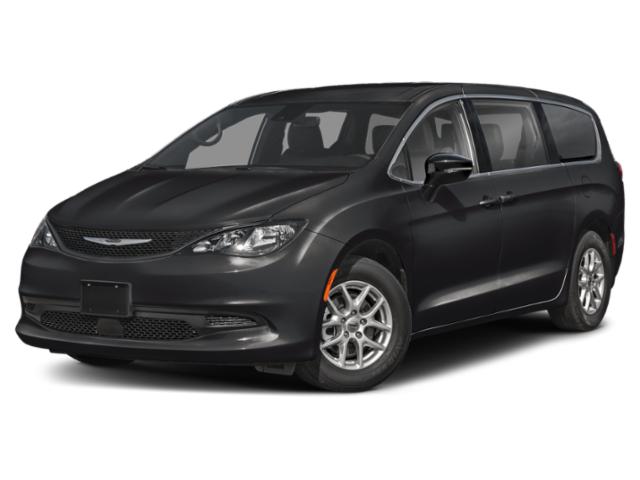

2025 Chrysler Voyager
$39,995 - $39,995Starting MSRP
Diamond Black Crystal Pearlcoat
Model Highlights
Fuel Economy
22 MPG Comb.
Transmission
Automatic w/OD
Body Type
Minivan
Seatings
7 Seats
Overview
The 2025 Voyager only available in one trim powered by a 3.6L V6 engine with 287 horsepower mated to a 9-speed automatic transmission.
The Chrysler Voyager features 4-wheel disc brakes, a power liftgate and power sliding rear side doors,...
Build Your Own 2025 Chrysler Voyager
What’s new in the 2025 model?
After a three-year hiatus the Voyager passenger van returns to the Chrysler lineup for 2025.
Looking for alternatives to the Chrysler Voyager?
Start Comparing NowColors
Exterior
Diamond Black Crystal Pearlcoat
Red Hot Pearlcoat
Bright White Clearcoat
Specs
EPA Classification: Minivans 2WD
Engine Order Code: ERC
Engine Type: Regular Unleaded V-6
Displacement: 3.6 L/220
Fuel System: Sequential MPI
SAE Net Horsepower @ RPM: 287 @ 6400
SAE Net Torque @ RPM: 262 @ 4000
Drivetrain: Front Wheel Drive
Trans Order Code: DFH
Trans Type: 9
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.71
Second Gear Ratio (:1): 2.84
Third Gear Ratio (:1): 1.91
Fourth Gear Ratio (:1): 1.38
Fifth Gear Ratio (:1): 1.00
Sixth Gear Ratio (:1): 0.81
Reverse Ratio (:1): 3.81
Final Drive Axle Ratio (:1): 3.25
Seventh Gear Ratio (:1): 0.70
Eighth Gear Ratio (:1): 0.58
Fuel Economy Est-Combined (MPG): 22
EPA Fuel Economy Est - City (MPG): 19
EPA Fuel Economy Est - Hwy (MPG): 28
Cold Cranking Amps @ 0° F (Primary): 650
Maximum Alternator Capacity (amps): 180
Base Curb Weight (lbs): 4330
Dead Weight Hitch - Max Trailer Wt. (lbs): 3600
Dead Weight Hitch - Max Tongue Wt. (lbs): 360
Wt Distributing Hitch - Max Trailer Wt. (lbs): 3600
Wt Distributing Hitch - Max Tongue Wt. (lbs): 360
Suspension Type - Front: Strut
Suspension Type - Rear: Trailing Arm
Suspension Type - Front (Cont.): Strut
Suspension Type - Rear (Cont.): Trailing Arm
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 13
Rear Brake Rotor Diam x Thickness (in): 13
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: TMK
Rear Tire Order Code: TMK
Spare Tire Order Code:
Front Tire Size: P235/65HR17
Rear Tire Size: P235/65HR17
Spare Tire Size:
Front Wheel Size (in): 17 X 7
Rear Wheel Size (in): 17 X 7
Spare Wheel Size (in):
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material:
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 39.7
Fuel Tank Capacity, Approx (gal): 19
Wheelbase (in): 121.6
Length, Overall (in): 203.8
Width, Max w/o mirrors (in): 79.6
Height, Overall (in): 69.9
Track Width, Front (in): 68.3
Track Width, Rear (in): 68.3
Min Ground Clearance (in): 5.1
Liftover Height (in): 24.3
Cargo Box Width @ Wheelhousings (in): 48.8
Cargo Box (Area) Height (in): 47.6
Cargo Volume to Seat 1 (ft³): 140.5
Cargo Volume to Seat 2 (ft³): 87.5
Cargo Volume to Seat 3 (ft³): 32.3
Passenger Capacity: 7
Passenger Volume (ft³): 165
Front Head Room (in): 40.1
Front Leg Room (in): 41.1
Front Shoulder Room (in): 63.8
Front Hip Room (in): 59
Second Head Room (in): 39.6
Second Leg Room (in): 39
Second Shoulder Room (in): 63
Second Hip Room (in): 64.8
Third Head Room (in): 38.7
Third Leg Room (in): 36.5
Third Shoulder Room (in): 61.2
Third Hip Room (in): 49.5
Vehicle Name: Chrysler Voyager
Body Style: Passenger Van
EPA Greenhouse Gas Score: 5.0
Tons/yr of CO2 Emissions @ 15K mi/year: 8.0
Pricing
This model has 1 different trims.
MSRP
$39,995
Invoice
$39,595
Description
3.6 L/220, 287 @ 6400, Automatic w/OD
Fuel Economy
This model has 1 different trims.
City
19 MPG
Hwy
28 MPG
Combined
22 MPG
Description
3.6 L/220, 287 @ 6400, Automatic w/OD
