2025 Cadillac XT6
$49,195 - $60,695Starting MSRP

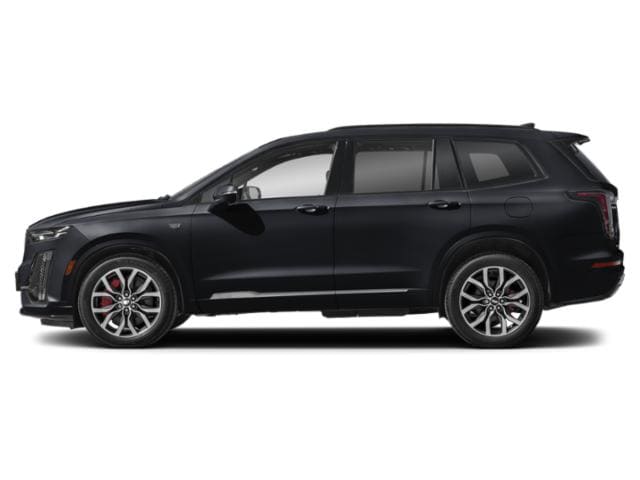

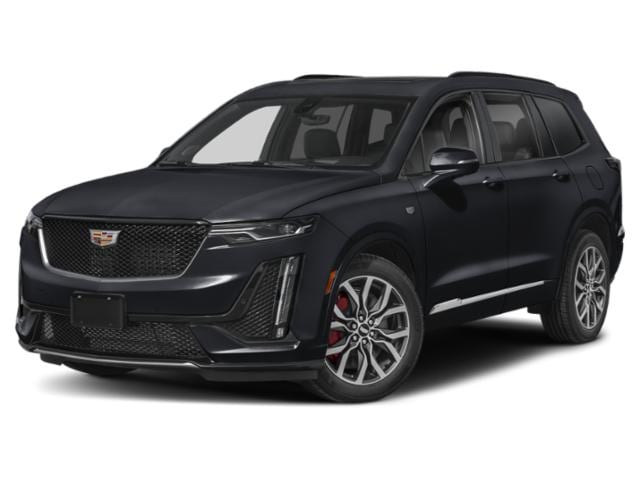

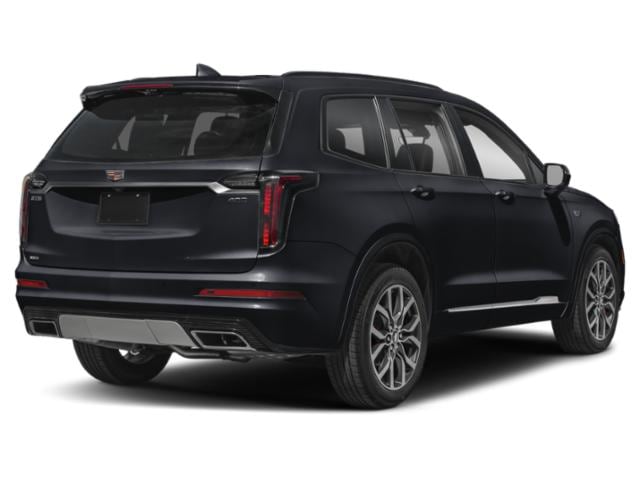

Stellar Black Metallic
Model Highlights
Fuel Economy
20 MPG Comb.
Transmission
Automatic
Body Type
SUV
Seatings
7 Seats
Overview
The Cadillac XT6 now comes standard with a 2L turbocharged four-cylinder 235-horsepower engine that is available in either front or all-wheel drive with the standard 9-speed automatic transmission.
Powering the Premium Luxury and Sport trim is...
Build Your Own 2025 Cadillac XT6
What’s new in the 2025 model?
The Cadillac XT6 carries over with minimal changes for 2025.
Looking for alternatives to the Cadillac XT6?
Start Comparing NowColors
Exterior
Stellar Black Metallic
Midnight Sky Metallic
Opulent Blue Metallic
Emerald Lake Metallic
Radiant Red Tintcoat
Argent Silver Metallic
Crystal White Tricoat
Specs
EPA Classification: Sport Utility Vehicles
Number of Passenger Doors: 4
Engine Order Code: LGX
Engine Type: Gas V6
Displacement: 3.6L/222
Fuel System: Direct Injection
SAE Net Horsepower @ RPM: 310 @ 6600
SAE Net Torque @ RPM: 271 @ 5000
Drivetrain: All Wheel Drive
Trans Order Code: M3W
Trans Type: 9
Trans Description Cont.: Automatic
Trans Description Cont. Again:
First Gear Ratio (:1): 4.69
Second Gear Ratio (:1): 3.31
Third Gear Ratio (:1): 3.01
Fourth Gear Ratio (:1): 2.44
Fifth Gear Ratio (:1): 1.92
Sixth Gear Ratio (:1): 1.44
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.75
Ninth Gear Ratio (:1): 0.62
Reverse Ratio (:1): 2.96
Clutch Size (in):
Final Drive Axle Ratio (:1): 3.49
Transfer Case Gear Ratio (:1), High: - TBD -
Transfer Case Gear Ratio (:1), Low: - TBD -
EPA Fuel Economy Est - City (MPG): 18
EPA Fuel Economy Est - Hwy (MPG): 25
Fuel Economy Est-Combined (MPG): 20
Cold Cranking Amps @ 0° F (Primary): - TBD -
Maximum Alternator Capacity (amps): 170
Total Cooling System Capacity (qts): - TBD -
Base Curb Weight (lbs): 4690
Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
Dead Weight Hitch - Max Tongue Wt. (lbs): 400
Wt Distributing Hitch - Max Trailer Wt. (lbs): 4000
Wt Distributing Hitch - Max Tongue Wt. (lbs): 400
Maximum Trailering Capacity (lbs): 4000
Suspension Type - Front: MacPherson Strut
Suspension Type - Rear: Five-Link Independent
Suspension Type - Front (Cont.):
Suspension Type - Rear (Cont.): w/Coil Springs
Shock Absorber Diameter - Front (mm): - TBD -
Shock Absorber Diameter - Rear (mm): - TBD -
Stabilizer Bar Diameter - Front (in): - TBD -
Stabilizer Bar Diameter - Rear (in): - TBD -
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.6 x 1.9
Rear Brake Rotor Diam x Thickness (in): 12.4 x 0.9
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code: QNU
Rear Tire Order Code: QNU
Spare Tire Order Code: ZCD
Front Tire Size: P235/55R20
Rear Tire Size: P235/55R20
Spare Tire Size: Compact
Front Wheel Size (in): 20 x - TBD -
Rear Wheel Size (in): 20 x - TBD -
Spare Wheel Size (in): 18 x - TBD -
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Steel
Steering Type: Electric Rack & Pinion
Steering Ratio (:1), Overall: 15
Lock to Lock Turns (Steering): - TBD -
Turning Diameter - Curb to Curb (ft): 38.7
Turning Diameter - Wall to Wall (ft): - TBD -
Fuel Tank Capacity, Approx (gal): 22.0
Wheelbase (in): 113
Length, Overall (in): 198.5
Width, Max w/o mirrors (in): 77.3
Height, Overall (in): 69.9
Track Width, Front (in): 66.4
Track Width, Rear (in): 66.2
Min Ground Clearance (in): 6.65
Rear Door Opening Height (in): - TBD -
Rear Door Opening Width (in): - TBD -
Liftover Height (in): - TBD -
Cargo Area Length @ Floor to Seat 1 (in): - TBD -
Cargo Area Length @ Floor to Seat 2 (in): - TBD -
Cargo Area Length @ Floor to Seat 3 (in):
Cargo Area Width @ Beltline (in): - TBD -
Cargo Box Width @ Wheelhousings (in): - TBD -
Cargo Box (Area) Height (in): - TBD -
Cargo Volume to Seat 1 (ft³): 78.7
Cargo Volume to Seat 2 (ft³): 43.1
Cargo Volume to Seat 3 (ft³): 12.6
Passenger Capacity: 7
Passenger Volume (ft³): 149.9
Front Head Room (in): 39.8
Front Leg Room (in): 41.2
Front Shoulder Room (in): 58.3
Front Hip Room (in): 50.1
Second Head Room (in): 39.1
Second Leg Room (in): 39.1
Second Shoulder Room (in): 57.4
Second Hip Room (in): 55.7
Third Head Room (in): 37.2
Third Leg Room (in): 29.5
Third Shoulder Room (in): 53.5
Third Hip Room (in): 39.5
Vehicle Name: Cadillac XT6
Body Style: Sport Utility Vehicle
EPA Greenhouse Gas Score: 4
Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
Pricing
This model has 5 different trims.
MSRP
$60,695
Invoice
$57,660
Description
3.6L/222, 310 @ 6600, Automatic
Fuel Economy
This model has 5 different trims.
City
18 MPG
Hwy
25 MPG
Combined
20 MPG
Description
3.6L/222, 310 @ 6600, Automatic
