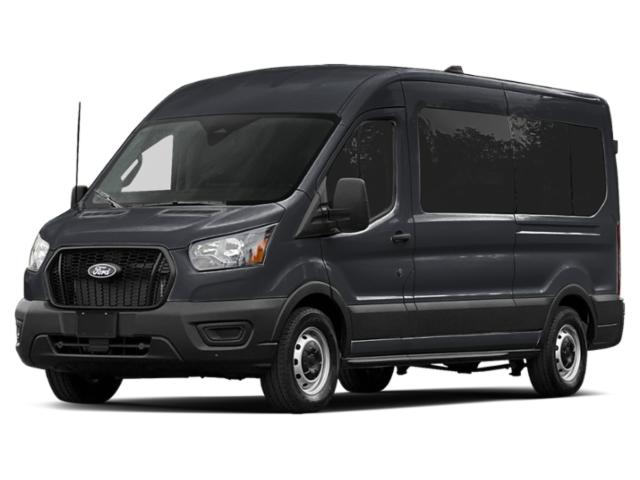

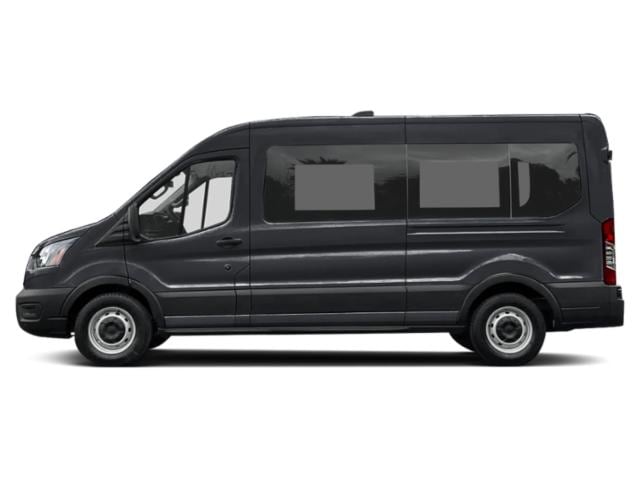

2026 Ford Transit Passenger Wagon
$59,180 - $71,665Starting MSRP
Agate Black Metallic
Model Highlights
Transmission
AUTO
Body Type
Van
Seatings
12 Seats
Overview
The 2026 Ford Transit Passenger Wagon features two trims: the XL and the XLT trim. Each trim is available in 3 roof heights and can come in RWD or AWD. The standard engine offered for the Van is a 3.5L V6 which produces 275 horsepower and 260...
Build Your Own 2026 Ford Transit Passenger Wagon
What’s new in the 2026 model?
The 2026 Ford Transit Passenger Wagon carries over with some changes into 2026 including an additional 3.5L EcoBoost engine option, a standard 8 in...
Looking for alternatives to the Ford Transit Passenger Wagon?
Start Comparing NowColors
Exterior
Agate Black Metallic
Blue Metallic
Carbonized Gray Metallic
Wild Green
Race Red
Ingot Silver Metallic
Oxford White
School Bus Yellow
Specs
Rear Door Type: Split Swing-Out
Engine Order Code: 998
Engine Type: Regular Unleaded V-6
Displacement: 3.5 L/213
Fuel System: Port/Direct Injection
SAE Net Horsepower @ RPM: 275 @ 6250
SAE Net Torque @ RPM: 260 @ 4000
Engine Oil Cooler: None
Drivetrain: All Wheel Drive
Trans Order Code: 44U
Trans Type: 10
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.69
Second Gear Ratio (:1): 2.98
Third Gear Ratio (:1): 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27
Reverse Ratio (:1): 4.87
Trans PTO Access: No
Transfer Case Model: None
Transfer Case Power Take Off: No
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Fuel Economy Est-Combined (MPG): - TBD -
EPA Fuel Economy Est - City (MPG): - TBD -
EPA Fuel Economy Est - Hwy (MPG): - TBD -
Maximum Alternator Capacity (amps): 250
Base Curb Weight (lbs): 6359
Gross Axle Wt Rating - Front (lbs): 4630
Gross Axle Wt Rating - Rear (lbs): 5780
Curb Weight - Front (lbs): 3449
Curb Weight - Rear (lbs): 2911
Gross Vehicle Weight Rating Cap (lbs): 9550
Gross Combined Wt Rating (lbs): 11200
Dead Weight Hitch - Max Trailer Wt. (lbs): 4200
Dead Weight Hitch - Max Tongue Wt. (lbs): 420
Wt Distributing Hitch - Max Trailer Wt. (lbs): 4200
Wt Distributing Hitch - Max Tongue Wt. (lbs): 420
Maximum Trailering Capacity (lbs): 4200
Suspension Type - Front: Strut
Suspension Type - Rear: Leaf
Axle Type - Front: Independent
Axle Type - Rear: Rigid Axle
Axle Ratio (:1) - Front: 4.10
Axle Ratio (:1) - Rear: 4.10
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc - Front (Yes or ): Yes
Disc - Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 12.1
Rear Brake Rotor Diam x Thickness (in): 12.1
Drum - Rear (Yes or ):
Rear Drum Diam x Width (in):
Front Tire Order Code:
Rear Tire Order Code:
Spare Tire Order Code:
Front Tire Size: LT235/65RR16
Rear Tire Size: LT235/65RR16
Spare Tire Size: Full-Size
Revolutions/Mile @ 45 mph - Front: 720
Revolutions/Mile @ 45 mph - Rear: 720
Front Wheel Size (in): 16 X 6.5
Rear Wheel Size (in): 16 X 6.5
Spare Wheel Size (in): Full-Size
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Rack-Pinion
Turning Diameter - Curb to Curb (ft): 47.8
Fuel Tank Capacity, Approx (gal): 25.1
Side Door Type: Power Sliding
Wheelbase (in): 148
Length, Overall (in): 235.5
Width, Max w/o mirrors (in): 81.3
Height, Overall (in): 99.2
Overhang, Front (in): 40.3
Ground to Top of Load Floor (in): 28.8
Ground Clearance, Front (in): 6
Ground Clearance, Rear (in): 6
Cargo Area Length @ Floor to Seat 1 (in): 141.7
Cargo Area Length @ Floor to Seat 2 (in): 107.1
Cargo Area Length @ Floor to Seat 3 (in): 76.2
Cargo Area Width @ Beltline (in): 69.8
Cargo Box Width @ Wheelhousings (in): 53.7
Cargo Box (Area) Height (in): 67.6
Cargo Volume to Seat 1 (ft³): 336.1
Cargo Volume to Seat 3 (ft³): 93.9
Cargo Volume to Seat 4 (ft³): 93.9
Passenger Capacity: 12
Front Head Room (in): 52
Front Leg Room (in): 41.3
Front Shoulder Room (in): 67.9
Front Hip Room (in): 60.7
Second Head Room (in): 55.8
Second Leg Room (in): 33.7
Second Shoulder Room (in): 71.4
Second Hip Room (in): 69.6
Third Head Room (in): 55.8
Third Leg Room (in): 35.6
Third Shoulder Room (in): 67
Third Hip Room (in): 67.3
Vehicle Name: Ford Transit Passenger Wagon
Body Style: Medium Roof Van
Body Code: V
Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
Pricing
This model has 16 different trims.
MSRP
$67,665
Invoice
$64,281
Description
3.5 L/213, 275 @ 6250, AUTO
Fuel Economy
This model has 16 different trims.
City
undefined MPG
Hwy
undefined MPG
Combined
undefined MPG
Description
3.5 L/213, 275 @ 6250, AUTO
