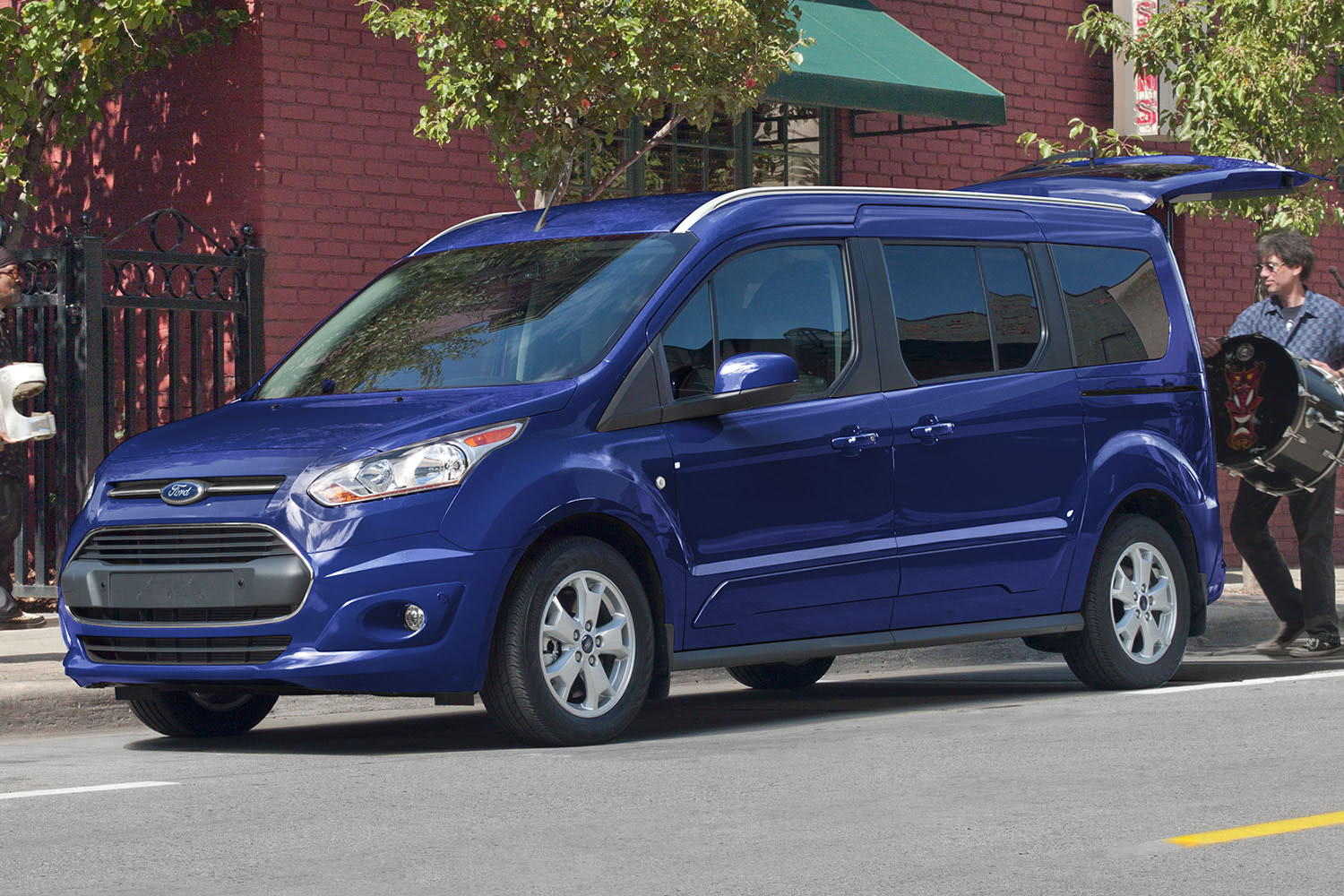

2017 Ford Transit Connect

Share this car on:
Showing results in:

Vehicle information

MPG: 20 City / 28 Hwy / 23 Comb
Engine: 2.5L Inline4
Vehicle type: Midsize Minivan
Fuel type: Gasoline / 87 Octane
Transmission: 6-Speed Shiftable Automatic
Segment: N/A
Basic warranty: 3 Years / 36,000 Miles
Drive type: Front-Wheel Drive
Seating capacity: 2 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
2.5L Inline4
Required fuel rating
87 Octane
Fuel description
Gasoline
Engine compression ratio
9.7:1
Brand
Duratec
Engine horsepower
169 hp
Bore & stroke
3.50 in. x 3.94 in.
Engine max horsepower
169 hp @ 6000 rpm
Cam type
Dual Overhead Cam (DOHC)
Torque
171 lb-ft
Fuel induction
Sequential Fuel Injection (SEFI)
Max torque
171 lb-ft @ 4500 rpm
Number of valves
16
Oil capacity
5.4 quarts
Valve timing
Variable Valve Timing
Transmission & drive type
Transmission
6-Speed Shiftable Automatic
Drive type
Front-Wheel Drive
Fuel economy
standard drivetrain
MPG: 20 City / 28 Hwy / 23 Comb
2.5L Inline4 / 6-Speed Shiftable Automatic / Gasoline / 87 Octane
Specifications

Length 15 ft. 9.7 in.

Silhouette side

Height 6 ft. 0.8 in.

Width 7 ft. 0.1 in.

Silhouette front
Front track:
5 ft. 1.4 in.
Ground clearance:
0 ft. 6.3 in.
Height:
6 ft. 0.8 in.
Length:
15 ft. 9.7 in.
Maximum seating:
2
Rear track:
5 ft. 1.7 in.
Standard seating:
2
Wheelbase:
10 ft. 0.6 in.
Width:
7 ft. 0.1 in.
Width (no mirrors):
6 ft. 0.2 in.
Epa interior volume:
191.8 cu. ft.
Front head room:
46.8 in.
Front hip room:
54.2 in.
Front leg room:
41.5 in.
Front shoulder room:
57.6 in.
Passenger volume:
63.2 cu. ft.
Standard cargo volume:
128.6 cu. ft.
Tires:
215/55R16XL 97H
Tires (rear):
215/55R16XL 97H
Turning circle:
40 ft.
Wheel size:
16.0 x 6.5
Wheel size (rear):
16.0 x 6.5
Fuel tank capacity:
15.8 gal.
Maximum towing capacity:
2000 lbs.
Payload:
1610 lbs.
Weight:
3618 lbs.
Weight (gvwr):
5270 lbs.
Back to top

Ford Pricing

Base price
MSRP
$25,535
Destination charge
$995
Invoice
$24,386
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
Front vinyl floor cover
$ 195
$ 180
Upfitter wiring harness
$ 65
$ 60
Smoker's package
Smoker's package

Includes ashtray and lighter.

$ 25
$ 23
Dual-zone front automatic temperature control
$ 275
$ 253
Led rear cargo area light
$ 70
$ 65
All weather front floor mats
$ 60
$ 56
Cng/lpg gaseous engine prep package
Cng/lpg gaseous engine prep package

Includes hardened intake valves, valve seats, and bi-fuel manifold.

$ 315
$ 289
California emission systems not required
California emission systems not required

Dealers ordering a vehicle without a California or 50-State Emissions System and which is being shipped to a California Emissions State dealer are also required to use Code 423 to attest either that the vehicle is not being registered in a California Emissions State or that Code 936 is applicable. Note: In Maine, Rhode Island and Vermont, dealers cannot use Code 423 for customers outside of California Emissions States locations (except Public Service/Emergency Vehicles Code 936).

$ 0
$ 0
Engine block heater
$ 35
$ 32
Flexible fuel vehicle system (ffv)
$ 0
$ 0
California emissions exemption for public service and emergency vehicles
California emissions exemption for public service and emergency vehicles

This exemption may only apply in certain California Emissions states. Ordering dealer is responsible to contact the proper state authorities for clarification on qualifying exempted vehicles for registration. Only available on vehicles sold for authorized public service or emergency service use. Must also use Code 423 when ordering.

$ 0
$ 0
50 state emissions system
$ 0
$ 0
Federal emissions state dealer order for california emissions states registration
Federal emissions state dealer order for california emissions states registration

Federal dealers ordering vehicles with code 425 are required to also use code 93N to attest that the vehicle is being sold/delivered to a customer intending to register the vehicle in a California Emissions State.

$ 0
$ 0
Front license plate bracket
$ 0
$ 0
Automatic headlamps
Automatic headlamps

Includes wiper-activated automatic headlamps, with follow me home lighting.

$ 125
$ 115
Front and rear splash guards
$ 140
$ 128
Large exterior mirrors
Large exterior mirrors

Includes large exterior mirrors recommended for trailer tow.

$ 65
$ 60
Second row fixed glass on passenger side
$ 35
$ 32
Second row fixed glass on both sides
$ 70
$ 65
Roof rails
$ 135
$ 124
Electric rear window defroster
$ 150
$ 139
Roof rack w/crossbars
$ 195
$ 180
Quickclear electric windshield defroster
Quickclear electric windshield defroster

Includes electric windshield defroster, heated washer jets, power adjust, and heated exterior mirrors.

$ 300
$ 276
16 x 6.5 in. alloy wheels
16 x 6.5 in. alloy wheels

Includes 16 x 6.5 inch alloy wheels, with locking wheel lug nuts.

$ 495
$ 456
Tire repair kit
$ -70
$ -65
Am/fm stereo receiver w/single-cd, sync, siriusxm satellite and hd radio
Am/fm stereo receiver w/single-cd, sync, siriusxm satellite and hd radio

Includes AM/FM stereo receiver, single-disc CD, four front speakers, compass display, SYNC, SiriusXM satellite radio, HD radio,

$ 520
$ 479
Am/fm stereo receiver w/single-cd and sync
Am/fm stereo receiver w/single-cd and sync

Includes AM/FM stereo receiver, single-disc CD, SYNC, four front speakers, and compass display.

$ 325
$ 299
Am/fm stereo receiver w/single-cd, sync, and rear view camera
Am/fm stereo receiver w/single-cd, sync, and rear view camera

Includes AM/FM stereo receiver, single-disc CD, four front speakers, SYNC, rear view camera, and compass display.

$ 550
$ 507
Ford work solutions - crew chief telematics
Ford work solutions - crew chief telematics

Includes Crew Chief Telematics powered by Telogis, an onboard device that tracks vehicle location, MPG and idle time with vehicle diagnostics and maintenance capabilities. Includes one year of Crew Chief subscription service.

$ 925
$ 851
Key fobs
Key fobs

Includes two additional key fobs.

$ 65
$ 60
Cov required
$ 0
$ 0
Priced dora
$ 0
$ 0
Remote start system
Remote start system

Includes remote start system and perimeter alarm.

$ 495
$ 456
Blind spot information system w/cross-traffic alert
Blind spot information system w/cross-traffic alert

Includes BLIS (Blind Spot Information System) with cross-traffic alert and power adjustable, power folding, and heated exterior mirrors.

$ 575
$ 529
Sync 3 with rear view camera
Sync 3 with rear view camera

Includes AM/FM stereo receiver, single-disc CD, SiriusXM satellite radio, HD radio, SYNC 3, 6.5 inch multi-function display touch screen, navigation, rear view camera with in-dash display, and compass display.

$ 1,360
$ 1,252
Am/fm stereo receiver w/single-cd sync, siriusxm satellite and hd radio, and rear view camera
Am/fm stereo receiver w/single-cd sync, siriusxm satellite and hd radio, and rear view camera

Includes AM/FM stereo receiver, single-disc CD, four front speakers, SYNC, SiriusXM satellite radio, HD radio, rear view camera, and compass display.

$ 745
$ 685
Am/fm stereo receiver w/single-cd and rear view camera
Am/fm stereo receiver w/single-cd and rear view camera

Includes AM/FM stereo receiver, single-disc CD, and rear view camera.

$ 250
$ 231
Equipment group 110a
Equipment group 110a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Daytime running lamps
$ 45
$ 41
Adaptive cornering front fog lamps
$ 125
$ 115
Perimeter anti-theft alarm system
$ 195
$ 180
Forward and reverse sensing systems
$ 495
$ 456
Reverse sensing system
$ 295
$ 272
Cloth seats
$ 0
$ 0
Manual driver seat with non-folding passenger seat
Manual driver seat with non-folding passenger seat

Includes 6-way manual height adjustable driver seat with manual lumbar, and 4-way manual passenger seat with non-folding back. Recommended when upfitting with an after-market bulkhead.

$ 50
$ 47
Trailer tow package
Trailer tow package

Includes Class 1 2,000 lb. towing capability, trailer tow hitch with trailer sway control, trailer module, and 4-pin connector.

$ 395
$ 364
Back to top

Ford Features

Comfort
Interior
Interior accents: Chrome
Comfort features
Shift knob trim: Urethane
Steering wheel trim: Urethane
Door trim: Cloth
Reading lights: Front
Floor mats: Front
Air conditioning
Front air conditioning zones: Dual(optional), Single
Front air conditioning: Automatic climate control(optional)
Headrests
Front headrests: Adjustable
Seating
Driver seat
Driver seat manual adjustments: Lumbar
Passenger seat
Passenger seat folding: Folds flat
Seats
Driver seat manual adjustments: 6, Height, Reclining
Front seat type: Bucket
Front headrests: 2
Passenger seat manual adjustments: 4, Reclining
Upholstery: Cloth
Seatbelts
Seatbelt pretensioners: Front
Convenience
Convenience features
Center console: Front console with armrest and storage
Cupholders: Front
Multi-function remote: Keyless entry
Cruise control
Steering wheel mounted controls: Cruise control, Multi-function
Steering wheel: Tilt and telescopic
Power outlet(s): 12v cargo area, 12v front
Camera system: Rearview(optional)
Power steering
Overhead console: Front
In-car technology
Audio system
Total speakers: 4(optional), 2
Satellite radio: Siriusxm(optional)
Radio: Hd radio(optional), Touch screen display(optional), Am/fm
Auxiliary audio input: Jack
In-dash cd: Mp3 playback, Single disc
Telematics
Infotainment: Sync(optional)
Navigation system: Touch screen display(optional)
Instrumentation
Multi-function display
Fuel economy display: Mpg, Range
Exterior
Roof
Roof rails color: Black(optional)
Roof rails(optional)
Windows
One-touch windows: 1
Wheels
Wheels: Alloy(optional)
Tires and rims
Wheels: Steel
Warnings and reminders: Tire fill alert
Spare tire kit: Tire sealant(optional)
Tire type: All season
Tire pressure monitoring system
Spare wheel type: Steel
Spare tire
Spare tire size: Full-size
Lights
Headlights: Auto on/off(optional), Wiper activated(optional), Halogen
Front fog lights: Cornering(optional)
Daytime running lights(optional)
Doors
Side door type: Dual manual sliding
Liftgate window: Fixed
Rear door type: Liftgate
Chassis & suspension
Suspension
Front shock type: Gas
Rear shock type: Gas
Front suspension classification: Independent
Rear suspension classification: Semi-independent
Front stabilizer bar
Front struts: Macpherson
Rear suspension type: Torsion beam
Powertrain & drivetrain
Engine
Remote engine start(optional)
Suv & truck equipment
Towing and hauling
Trailer hitch: Class i(optional)
Trailer wiring: 4-pin(optional)
Back to top

Ford Colors

Exterior
Shadow black
Race red
Frozen white
Dark blue
Silver
Interior
Medium stone
Charcoal black
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side pole impact: driver
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Airbag deactivation
Occupant sensing passenger
Front airbags
Dual
Side airbags
Front
Side-curtain airbag rollover sensor
Side curtain airbags
Front
Brakes
Rear brake type
Disc
Abs
4-wheel
Hill holder control
Braking assist
Power brakes
Front brake type
Ventilated disc
Mirrors
Vanity mirrors
Dual
Side mirror adjustments
Power, manual folding
Side mirrors
Heated
Dimming rearview mirror
Manual day/night
Side mirror type
Spotter mirror
Security
Anti-theft system
Engine immobilizer
Stability and traction
Roll stability control
Traction control
Stability control
Electronic
Safety: optional features
Security
Anti-theft system
Perimeter alarm
Mirrors
Side mirror adjustments
Power folding
Side mirror type
Towing
Safety
Blind spot safety
Sensor/alert
Cross traffic alert
Rear
Parking sensors
Rear, front
Rearview monitor
In dash
Stability and traction
Traction control
Trailer stability
Back to top

Ford Photo gallery

Back to top

Ford Transit Connect Select a Style:

Style
MPG
Engine
MSRP
XL 4dr Cargo Minivan w/Rear Liftgate
XL 4dr Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 23,010
XL 4dr Cargo Minivan w/Rear Cargo Doors
XL 4dr Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 23,010
XL 4dr Extended Cargo Minivan w/Rear Cargo Doors
XL 4dr Extended Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,010
XL 4dr Extended Cargo Minivan w/Rear Liftgate
XL 4dr Extended Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,010
XLT 4dr Cargo Minivan w/Rear Cargo Doors
XLT 4dr Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,535
XLT 4dr Cargo Minivan w/Rear Liftgate
XLT 4dr Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,535
XLT 4dr Extended Cargo Minivan w/Rear Cargo Doors
XLT 4dr Extended Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 25,535
XLT 4dr Extended Cargo Minivan w/Rear Liftgate
XLT 4dr Extended Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 25,535
