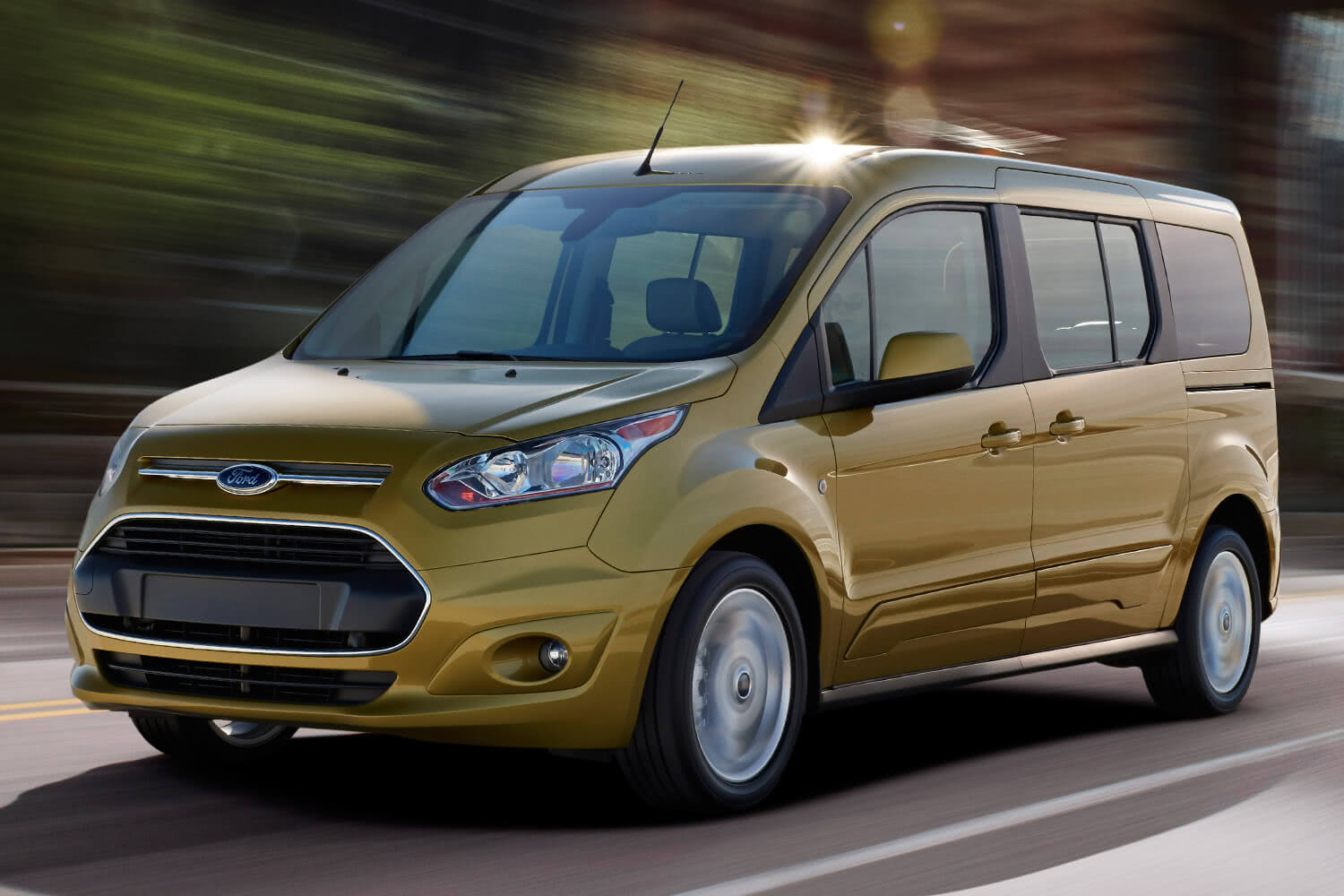

2016 Ford Transit Connect

Share this car on:
Showing results in:

Vehicle information

MPG: 22 City / 29 Hwy / 25 Comb
Engine: 1.6L Inline4, Turbocharged
Vehicle type: Compact Minivan
Fuel type: Gasoline / 87 Octane
Transmission: 6-Speed Shiftable Automatic
Segment: N/A
Basic warranty: 3 Years / 36,000 Miles
Drive type: Front-Wheel Drive
Seating capacity: 2 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
1.6L Inline4, Turbocharged
Required fuel rating
87 Octane
Fuel description
Gasoline
Engine compression ratio
10.0:1
Brand
EcoBoost
Engine horsepower
178 hp
Bore & stroke
3.11 in. x 3.20 in.
Engine max horsepower
178 hp @ 5700 rpm
Cam type
Dual Overhead Cam (DOHC)
Torque
184 lb-ft
Fuel induction
Direct Injection (DI)
Max torque
184 lb-ft @ 2500 rpm
Number of valves
16
Oil capacity
4.1 quarts
Transmission & drive type
Transmission
6-Speed Shiftable Automatic
Drive type
Front-Wheel Drive
Fuel economy
standard drivetrain
MPG: 22 City / 29 Hwy / 25 Comb
1.6L Inline4, Turbocharged / 6-Speed Shiftable Automatic / Gasoline / 87 Octane
Specifications

Length 14 ft. 5.9 in.

Silhouette side

Height 6 ft. 0.5 in.

Width 7 ft. 0.1 in.

Silhouette front
Front track:
5 ft. 1.4 in.
Ground clearance:
0 ft. 6 in.
Height:
6 ft. 0.5 in.
Length:
14 ft. 5.9 in.
Maximum seating:
2
Rear track:
5 ft. 1.7 in.
Standard seating:
2
Wheelbase:
8 ft. 8.8 in.
Width:
7 ft. 0.1 in.
Width (no mirrors):
6 ft. 0.2 in.
Epa interior volume:
167.1 cu. ft.
Front head room:
46.8 in.
Front hip room:
54.1 in.
Front leg room:
41.5 in.
Front shoulder room:
57.6 in.
Passenger volume:
63.2 cu. ft.
Standard cargo volume:
103.9 cu. ft.
Tires:
215/55R16XL 97H
Tires (rear):
215/55R16XL 97H
Turning circle:
36.1 ft.
Wheel size:
16.0 x 6.5
Wheel size (rear):
16.0 x 6.5
Fuel tank capacity:
15.8 gal.
Maximum towing capacity:
2000 lbs.
Payload:
1470 lbs.
Weight:
3505 lbs.
Weight (gvwr):
5020 lbs.
Back to top

Ford Pricing

Base price
MSRP
$23,470
Destination charge
$995
Invoice
Not Available
Gas guzzler tax
Not Available
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
Cruise control
$ 225
$ 203
Cruise control
$ 225
$ 207
Led rear cargo area light
$ 70
$ 64
Led rear cargo area light
$ 70
$ 65
Smoker's package
Smoker's package

Includes ashtray and lighter.

$ 25
$ 23
Smoker's package
Smoker's package

Includes ashtray and lighter.

$ 25
$ 22
3.21 axle ratio
$ 0
$ 0
3.06 axle ratio
$ 0
$ 0
Federal emissions state dealer order for california emissions states registration
Federal emissions state dealer order for california emissions states registration

Federal dealers ordering vehicles with code 425 are required to also use code 93N to attest that the vehicle is being sold/delivered to a customer intending to register the vehicle in a California Emissions State.

$ 0
$ 0
California emission systems not required
California emission systems not required

Dealers ordering a vehicle without a California or 50-State Emissions System and which is being shipped to a California Emissions State dealer are also required to use Code 423 to attest either that the vehicle is not being registered in a California Emissions State or that Code 936 is applicable. Note: In Maine, Rhode Island and Vermont, dealers cannot use Code 423 for customers outside of California Emissions States locations (except Public Service/Emergency Vehicles Code 936).

$ 0
$ 0
Engine block heater
$ 35
$ 32
Flexible fuel vehicle system (ffv)
$ 0
$ 0
50 state emissions system
$ 0
$ 0
Cng/lpg gaseous engine prep package
Cng/lpg gaseous engine prep package

Includes hardened intake valves, valve seats, and bi-fuel manifold.

$ 315
$ 289
Cng/lpg gaseous engine prep package
Cng/lpg gaseous engine prep package

Includes hardened intake valves, valve seats, and bi-fuel manifold.

$ 315
$ 284
California emissions exemption for public service and emergency vehicles
California emissions exemption for public service and emergency vehicles

This exemption may only apply in certain California Emissions states. Ordering dealer is responsible to contact the proper state authorities for clarification on qualifying exempted vehicles for registration. Only available on vehicles sold for authorized public service or emergency service use. Must also use Code 423 when ordering.

$ 0
$ 0
Engine block heater
$ 35
$ 31
Front and rear splash guards
$ 140
$ 128
Power heated exterior mirrors w/manual fold
Power heated exterior mirrors w/manual fold

Includes power adjustable, manual folding, heated exterior mirrors with black molded-in-color skull caps.

$ 130
$ 119
Front and rear splash guards
$ 140
$ 126
Power heated exterior mirrors w/manual fold
Power heated exterior mirrors w/manual fold

Includes power adjustable, manual folding, heated exterior mirrors with black molded-in-color skull caps.

$ 130
$ 118
Large exterior mirrors
Large exterior mirrors

Includes large exterior mirrors recommended for trailer tow.

$ 195
$ 180
Front license plate bracket
$ 0
$ 0
Large exterior mirrors
Large exterior mirrors

Includes large exterior mirrors recommended for trailer tow.

$ 195
$ 176
Quickclear electric windshield defroster
Quickclear electric windshield defroster

Includes electric windshield defroster, heated washer jets, power adjust, and heated exterior mirrors.

$ 375
$ 339
180 degree rear symmetrical cargo doors w/fixed rear door glass
$ 295
$ 267
Quickclear electric windshield defroster
Quickclear electric windshield defroster

Includes electric windshield defroster, heated washer jets, power adjust, and heated exterior mirrors.

$ 375
$ 345
Rear privacy glass windows
Rear privacy glass windows

Includes rear privacy glass windows for second row rearward.

$ 125
$ 113
180 degree rear symmetrical cargo doors w/fixed rear door glass
$ 295
$ 272
Electric rear window defroster
$ 150
$ 139
Second row fixed glass on both sides
$ 70
$ 64
Second row fixed glass on passenger side
$ 35
$ 32
Electric rear window defroster
$ 150
$ 137
Second row fixed glass on passenger side
$ 35
$ 31
Second row fixed glass on both sides
$ 70
$ 65
Rear privacy glass windows
Rear privacy glass windows

Includes rear privacy glass windows for second row rearward.

$ 125
$ 115
Am/fm stereo receiver w/single-cd, sync, and rear view camera
Am/fm stereo receiver w/single-cd, sync, and rear view camera

Includes AM/FM stereo receiver, single-disc CD, four front speakers, SYNC, rear view camera, and compass display.

$ 970
$ 893
Am/fm stereo receiver w/single-cd, sync, and rear view camera
Am/fm stereo receiver w/single-cd, sync, and rear view camera

Includes AM/FM stereo receiver, single-disc CD, four front speakers, SYNC, rear view camera, and compass display.

$ 970
$ 876
Am/fm stereo receiver w/single-cd
Am/fm stereo receiver w/single-cd

Includes AM/FM stereo receiver, single-disc CD, 4.2 inch LCD multi-function display with steering wheel controls, in-cluster message center, and 4-spoke leather wrapped steering wheel with satin chrome shells.

$ 350
$ 323
Am/fm stereo receiver w/single-cd and sync
Am/fm stereo receiver w/single-cd and sync

Includes AM/FM stereo receiver, single-disc CD, SYNC, four front speakers, 4.2 inch LCD multi-function display with steering wheel controls, compass display, in-cluster message center, and 4-spoke leather-wrapped steering wheel with satin chrome shells.

$ 745
$ 671
Am/fm stereo receiver w/single-cd and sync
Am/fm stereo receiver w/single-cd and sync

Includes AM/FM stereo receiver, single-disc CD, SYNC, four front speakers, 4.2 inch LCD multi-function display with steering wheel controls, compass display, in-cluster message center, and 4-spoke leather-wrapped steering wheel with satin chrome shells.

$ 745
$ 685
Am/fm stereo receiver w/single-cd
Am/fm stereo receiver w/single-cd

Includes AM/FM stereo receiver, single-disc CD, 4.2 inch LCD multi-function display with steering wheel controls, in-cluster message center, and 4-spoke leather wrapped steering wheel with satin chrome shells.

$ 350
$ 317
Ford work solutions - crew chief telematics
Ford work solutions - crew chief telematics

Includes Crew Chief Telematics powered by Telogis, an onboard device that tracks vehicle location, MPG and idle time with vehicle diagnostics and maintenance capabilities. Includes one year of Crew Chief subscription service.

$ 925
$ 851
Ford work solutions - crew chief telematics
Ford work solutions - crew chief telematics

Includes Crew Chief Telematics powered by Telogis, an onboard device that tracks vehicle location, MPG and idle time with vehicle diagnostics and maintenance capabilities. Includes one year of Crew Chief subscription service.

$ 925
$ 835
Engine governor - 75 mph speed limiter
Engine governor - 75 mph speed limiter

Requires valid FIN code.

$ 50
$ 47
Engine governor - 65 mph speed limiter
Engine governor - 65 mph speed limiter

Requires valid FIN code.

$ 50
$ 47
Key fobs
Key fobs

Includes two additional key fobs.

$ 65
$ 59
Cov required
$ 0
$ 0
Key fobs
Key fobs

Includes two additional key fobs.

$ 65
$ 60
Priced dora
$ 0
$ 0
Am/fm stereo receiver w/single-cd and rear view camera
Am/fm stereo receiver w/single-cd and rear view camera

Includes AM/FM stereo receiver, single-disc CD, and rear view camera.

$ 575
$ 519
Am/fm stereo receiver w/single-cd and rear view camera
Am/fm stereo receiver w/single-cd and rear view camera

Includes AM/FM stereo receiver, single-disc CD, and rear view camera.

$ 575
$ 529
Equipment group 100a
Equipment group 100a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Perimeter anti-theft alarm system
$ 195
$ 180
Reverse sensing system
$ 295
$ 267
Daytime running lamps
$ 45
$ 41
Perimeter anti-theft alarm system
$ 195
$ 176
Daytime running lamps
$ 45
$ 40
Mykey
Mykey

Includes a programmable safety key which enables owners to restrict top speed, reduce the maximum volume of the audio system, prevent the driver from deactivating safety technologies, program chimes to sound at set points between 45 and 65 mph, provide seat belt reminders, and can deliver an earlier low-fuel warning.

$ 5
$ 4
Reverse sensing system
$ 295
$ 272
Vinyl seats
$ 0
$ 0
Manual driver seat with non-folding passenger seat
Manual driver seat with non-folding passenger seat

Includes 6-way manual height adjustable driver seat with manual lumbar, and 4-way manual passenger seat with non-folding back. Recommended when upfitting with an after-market bulkhead.

$ 140
$ 128
Manual driver seat with non-folding passenger seat
Manual driver seat with non-folding passenger seat

Includes 6-way manual height adjustable driver seat with manual lumbar, and 4-way manual passenger seat with non-folding back. Recommended when upfitting with an after-market bulkhead.

$ 140
$ 126
Cloth seats
$ 100
$ 92
Manual driver seat with folding passenger seat
Manual driver seat with folding passenger seat

Includes 6-way manual height adjustable driver seat with manual lumbar, and 4-way manual passenger seat with folding back.

$ 95
$ 86
Manual driver seat with folding passenger seat
Manual driver seat with folding passenger seat

Includes 6-way manual height adjustable driver seat with manual lumbar, and 4-way manual passenger seat with folding back.

$ 95
$ 88
Cloth seats
$ 100
$ 90
Trailer tow package
Trailer tow package

Includes Class 1 2,000 lb. towing capability, trailer tow hitch with trailer sway control, trailer module, and 4-pin connector.

$ 395
$ 364
Trailer tow package
Trailer tow package

Includes Class 1 2,000 lb. towing capability, trailer tow hitch with trailer sway control, trailer module, and 4-pin connector.

$ 395
$ 357
Back to top

Ford Features

Comfort
Comfort features
Steering wheel trim: Leather(optional), Urethane
Door trim: Cloth
Shift knob trim: Urethane
Air conditioning
Front air conditioning
Front air conditioning zones: Single
Headrests
Front headrests: Adjustable
Seating
Driver seat
Driver seat manual adjustments: Lumbar(optional)
Passenger seat
Passenger seat folding: Folds flat
Seats
Driver seat manual adjustments: 6(optional), Height(optional), 4, Reclining
Front seat type: Bucket
Upholstery: Cloth(optional), Vinyl
Front headrests: 2
Passenger seat manual adjustments: 4, Reclining
Seatbelts
Seatbelt pretensioners: Front
Convenience
Convenience features
Power steering
Camera system: Rearview(optional)
Steering wheel: Tilt and telescopic
Steering wheel mounted controls: Audio(optional)
Center console: Front console with armrest and storage
Power outlet(s): 12v front
Cruise control(optional)
Cupholders: Front
Multi-function remote: Keyless entry
Overhead console: Front
In-car technology
Audio system
In-dash cd: Single disc(optional)
Radio: Am/fm
Total speakers: 4(optional), 2
Auxiliary audio input: Jack
Telematics
Infotainment: Sync(optional)
Exterior
Windows
One-touch windows: 1
Tires and rims
Tire pressure monitoring system
Tire type: All season
Spare wheel type: Steel
Warnings and reminders: Tire fill alert
Wheels: Steel
Spare tire
Spare tire size: Full-size
Lights
Headlights: Halogen
Daytime running lights(optional)
Doors
Side door type: Dual manual sliding
Rear door type: Barn
Chassis & suspension
Suspension
Front shock type: Gas
Rear suspension type: Torsion beam
Front suspension classification: Independent
Rear shock type: Gas
Rear suspension classification: Semi-independent
Front struts: Macpherson
Front stabilizer bar
Suv & truck equipment
Towing and hauling
Trailer hitch: Class i(optional)
Trailer wiring: 4-pin(optional)
Back to top

Ford Colors

Exterior
Shadow black
Silver metallic
Dark blue
Frozen white
Race red
Interior
Charcoal black
Pewter
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side pole impact: driver
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Front airbags
Dual
Airbag deactivation
Occupant sensing passenger
Side airbags
Front
Side curtain airbags
Front
Side-curtain airbag rollover sensor
Brakes
Abs
4-wheel
Rear brake type
Disc
Braking assist
Front brake type
Ventilated disc
Power brakes
Hill holder control
Mirrors
Side mirror type
Spotter mirror
Side mirror adjustments
Manual, manual folding
Security
Anti-theft system
Engine immobilizer
Stability and traction
Roll stability control
Stability control
Electronic
Traction control
Safety: optional features
Stability and traction
Traction control
Trailer stability
Safety
Parking sensors
Rear
Rearview monitor
In dash
Mirrors
Side mirror adjustments
Power
Side mirrors
Heated
Side mirror type
Towing
Security
Anti-theft system
Perimeter alarm
Back to top

Ford Photo gallery

Back to top

Ford Transit Connect Select a Style:

Style
MPG
Engine
MSRP
XL 4dr Cargo Minivan w/Rear Cargo Doors
XL 4dr Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 22,675
XL 4dr Cargo Minivan w/Rear Liftgate
XL 4dr Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 22,675
XL 4dr Cargo Minivan w/Rear Liftgate
XL 4dr Cargo Minivan
w/Rear Liftgate
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 23,470
XL 4dr Cargo Minivan w/Rear Cargo Doors
XL 4dr Cargo Minivan
w/Rear Cargo Doors
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 23,470
XL 4dr Extended Cargo Minivan w/Rear Cargo Doors
XL 4dr Extended Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 19 City / 27 Hwy / 22 Comb
Engine 2.5L Inline4
MSRP $ 23,675
XL 4dr Extended Cargo Minivan w/Rear Liftgate
XL 4dr Extended Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 19 City / 27 Hwy / 22 Comb
Engine 2.5L Inline4
MSRP $ 23,675
XLT 4dr Cargo Minivan w/Rear Cargo Doors
XLT 4dr Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,200
XLT 4dr Cargo Minivan w/Rear Liftgate
XLT 4dr Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.5L Inline4
MSRP $ 24,200
XL 4dr Extended Cargo Minivan w/Rear Liftgate
XL 4dr Extended Cargo Minivan
w/Rear Liftgate
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 24,470
XL 4dr Extended Cargo Minivan w/Rear Cargo Doors
XL 4dr Extended Cargo Minivan
w/Rear Cargo Doors
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 24,470
XLT 4dr Cargo Minivan w/Rear Cargo Doors
XLT 4dr Cargo Minivan
w/Rear Cargo Doors
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 24,995
XLT 4dr Cargo Minivan w/Rear Liftgate
XLT 4dr Cargo Minivan
w/Rear Liftgate
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 24,995
XLT 4dr Extended Cargo Minivan w/Rear Cargo Doors
XLT 4dr Extended Cargo Minivan
w/Rear Cargo Doors
2.5L I4 6A
MPG 19 City / 27 Hwy / 22 Comb
Engine 2.5L Inline4
MSRP $ 25,200
XLT 4dr Extended Cargo Minivan w/Rear Liftgate
XLT 4dr Extended Cargo Minivan
w/Rear Liftgate
2.5L I4 6A
MPG 19 City / 27 Hwy / 22 Comb
Engine 2.5L Inline4
MSRP $ 25,200
XLT 4dr Extended Cargo Minivan w/Rear Cargo Doors
XLT 4dr Extended Cargo Minivan
w/Rear Cargo Doors
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 25,995
XLT 4dr Extended Cargo Minivan w/Rear Liftgate
XLT 4dr Extended Cargo Minivan
w/Rear Liftgate
1.6L I4 Turbo 6A
MPG 22 City / 29 Hwy / 25 Comb
Engine 1.6L Inline4, Turbocharged
MSRP $ 25,995
