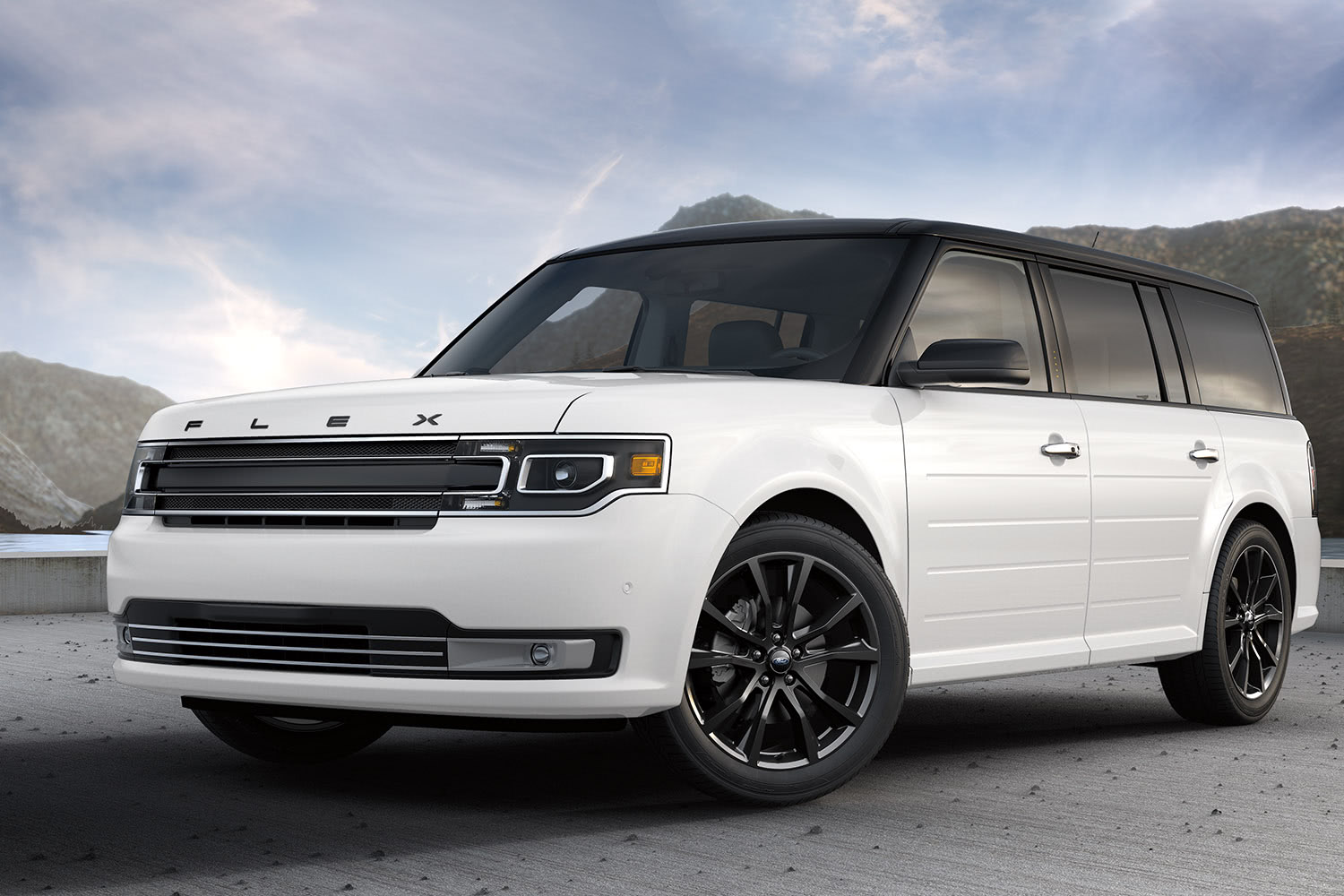

2016 Ford Flex

Share this car on:
Showing results in:

Vehicle information

MPG: 16 City / 23 Hwy / 19 Comb
Engine: 3.5L V6
Vehicle type: Full Size SUV/Crossover
Fuel type: Gasoline / 87 Octane
Transmission: 6-Speed Shiftable Automatic
Segment: N/A
Basic warranty: 3 Years / 36,000 Miles
Drive type: Front-Wheel Drive
Seating capacity: 7 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
3.5L V6
Engine compression ratio
10.3:1
Fuel description
Gasoline
Engine horsepower
287 hp
Bore & stroke
3.64 in. x 3.41 in.
Engine max horsepower
287 hp @ 6500 rpm
Cam type
Dual Overhead Cam (DOHC)
Torque
254 lb-ft
Fuel induction
Sequential Multi-Port Fuel Injection (SMPI)
Max torque
254 lb-ft @ 4000 rpm
Number of valves
24
Engine redline
7000 rpm redline
Valve timing
Variable Valve Timing
Oil capacity
5.7 quarts
Required fuel rating
87 Octane
Transmission & drive type
Transmission
6-Speed Shiftable Automatic
Drive type
Front-Wheel Drive
Fuel economy
standard drivetrain
MPG: 16 City / 23 Hwy / 19 Comb
3.5L V6 / 6-Speed Shiftable Automatic / Gasoline / 87 Octane
Specifications

Length 16 ft. 9.8 in.

Silhouette side

Height 5 ft. 9.3 in.

Width 7 ft. 4.8 in.

Silhouette front
Front track:
5 ft. 5.4 in.
Ground clearance:
0 ft. 5.9 in.
Height:
5 ft. 9.3 in.
Length:
16 ft. 9.8 in.
Maximum seating:
7
Rear track:
5 ft. 5.4 in.
Standard seating:
6
Wheelbase:
9 ft. 9.9 in.
Width:
7 ft. 4.8 in.
Width (no mirrors):
6 ft. 3.9 in.
3rd row head room:
38.7 in.
3rd row hip room:
41.1 in.
3rd row leg room:
33.3 in.
3rd row shoulder room:
50.8 in.
Cargo volume (3rd row down):
43.2 cu. ft.
Epa interior volume:
175.8 cu. ft.
Front head room:
41.8 in.
Front hip room:
55.5 in.
Front leg room:
40.8 in.
Front shoulder room:
58.4 in.
Maximum cargo volume:
83.2 cu. ft.
Passenger volume:
155.8 cu. ft.
Rear head room:
40.5 in.
Rear hip room:
55 in.
Rear leg room:
44.3 in.
Rear shoulder room:
58.1 in.
Standard cargo volume:
20 cu. ft.
Tires:
P235/60R18
Tires (rear):
P235/60R18
Turning circle:
40.7 ft.
Wheel size:
18.0 x 7.5
Wheel size (rear):
18.0 x 7.5
Fuel tank capacity:
18.6 gal.
Maximum towing capacity:
4500 lbs.
Payload:
1531 lbs.
Towing capacity:
2000 lbs.
Weight:
4439 lbs.
Weight (gvwr):
5970 lbs.
Back to top

Ford Pricing

Base price
MSRP
$32,300
Destination charge
$895
Invoice
$30,847
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
All weather floor mats
All weather floor mats

Includes front and rear all weather floor mats with logo.

$ 75
$ 71
California emissions system not required
California emissions system not required

Dealers ordering a vehicle without a California Emissions System and which is being sold/delivered to a California Emissions State dealer are also required to use Code 423 to attest either that the vehicle is not being registered in a California Emissions State or that Code 936 is applicable. Note: In Maine, Rhode Island and Vermont, dealers cannot use Code 423 for customers outside of California Emissions States locations (except Public Service/Emergency Vehicles Code 936).

$ 0
$ 0
California emissions exemption for public service and emergency vehicles
California emissions exemption for public service and emergency vehicles

This exemption may only apply in certain California Emissions states. Ordering dealer is responsible to contact the proper state authorities for clarification on qualifying exempted vehicles for registration. Only available on vehicles sold for authorized public service or emergency service use. Must also use Code 423 when ordering.

$ 0
$ 0
Federal emissions state dealer order for california emission states registration
Federal emissions state dealer order for california emission states registration

Federal Emissions State dealers ordering a California Emissions System (Code 422) are also required to use Code 93N to attest that the vehicle is to be registered in a California Emissions State. Note: It is a violation of federal law for a Federal Emissions State dealer to sell a vehicle with a California Emissions System for registration in a Federal Emissions State, unless the vehicle also meets EPA standards (i.e., 50-state emissions).

$ 0
$ 0
California emissions system
California emissions system

Required code for California Emissions States registration. Optional code for Cross Border States dealer orders.

$ 0
$ 0
Bronze fire metallic tinted clearcoat
$ 395
$ 375
Ruby red metallic tinted clearcoat
$ 395
$ 375
White platinum metallic tri-coat
$ 595
$ 565
Monochromatic painted roof
$ 0
$ 0
Roof rack side rails - silver
$ 195
$ 182
Ingot silver two-tone roof
$ 395
$ 375
Vista roof
Vista roof

Includes a front power moonroof panel that tilts up or fully opens, a fixed rear skylight, and power operated dual shades.

$ 1,595
$ 1,515
Black two-tone roof
$ 0
$ 0
Oxford white - two tone roof
$ 395
$ 375
20 in. bright painted aluminum wheels
20 in. bright painted aluminum wheels

Includes 20 inch bright painted aluminum wheels with P255/45R20 BSW all-season tires.

$ 895
$ 850
Voice activated navigation system
Voice activated navigation system

Includes voice activated touch screen navigation system, single disc CD player, SD card for map and POI (Points of Interest) storage, SiriusXm Traffic and Travel Link with 5 yrs service in the 48 contiguous states. Service not available in AK/HI.

$ 795
$ 755
Engine block heater
$ 90
$ 86
Equipment group 201a
Equipment group 201a

Includes vehicle with standard equipment and power liftgate, and power converter 110V outlet.

$ 800
$ 760
Equipment group 200a
Equipment group 200a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Appearance package
Appearance package

Includes roof, sideview mirror caps, grille center bar and liftgate applique in painted shadow black, black beltline molding, 20.0 inch painted high gloss black wheels, leather-trimmed seats with perforated-leather inserts, leather-wrapped steering wheel with meteorite black bezel, unique finish on instrument panel and door trim appliques and first and second row floor mats with unique logo on first row.

$ 1,495
$ 1,420
Equipment group 202a
Equipment group 202a

Includes vehicle with standard equipment, an power converter 110V outlet, power liftgate, adjustable pedals with memory, blind spot information system with cross-traffic alert, leather-trimmed seating surfaces (driver and front-passenger, 2nd row outboard seats, and vinyl 3rd row), memory driver's seat and mirrors, exterior mirror with security approach lamps, and premium audio system with 7 speakers.

$ 2,400
$ 2,280
2nd row console
$ 150
$ 144
Dual headrest dvd entertainment system
Dual headrest dvd entertainment system

Includes two rear facing video screens with controls.

$ 1,995
$ 1,895
Rear inflatable seat belts - 2nd row
$ 195
$ 185
2nd row 40/40 reclining seats
$ 695
$ 660
Class iii trailer tow package
Class iii trailer tow package

Includes receiver hitch, wiring harness with 4-pin and 7-pin connectors, engine oil cooler, and trailer sway control.

$ 570
$ 542
Back to top

Ford Features

Comfort
Interior
Interior accents: Wood-tone
Comfort features
Steering wheel trim: Leather
Shift knob trim: Leather
Reading lights: Front, Rear
Door trim: Wood
Door sill trim: Scuff plate
Floor mats: Front, Rear
Dash trim: Simulated wood
Air conditioning
Front air conditioning: Automatic climate control
Air filtration
Front air conditioning zones: Dual
Rear air conditioning: Independently controlled
Rear air conditioning zones: Single
Headrests
Rear headrests: Adjustable
Front headrests: Adjustable
Seating
Driver seat
Driver seat: Heated
Driver seat power adjustments: 10, Lumbar, Reclining
Passenger seat
Passenger seat: Heated
Passenger seat power adjustments: 6
Passenger seat manual adjustments: Lumbar
Rear seats
Rear seat folding: Split
Rear seat: One-touch
Rear seat manual adjustments: Reclining(optional)
Seats
Third row seat upholstery: Vinyl
Rear seat type: 60-40 split bench
Front seat type: Bucket
Driver seat power adjustments: Height
Front headrests: 2
Passenger seat power adjustments: Height
Third row seat folding: Fold flat into floor
Rear headrests: 3
Passenger seat manual adjustments: Reclining
Upholstery: Leather-trimmed(optional), Perforated(optional), Cloth
Third row seat
Third row seat type: 50-50 split bench, Split-folding
Seatbelts
Third row seatbelts: 3-point
Seatbelt pretensioners: Front
Seatbelt force limiters: Front
Rear seatbelts: 3-point
Inflatable seatbelts: Rear(optional)
Convenience
Convenience features
Steering wheel: Tilt and telescopic
Camera system: Rearview
Power outlet(s): 115v(optional), 115v rear(optional), 12v front and rear, 4 total
Power steering
Steering wheel mounted controls: Audio, Cruise control, Multi-function, Voice recognition
Adjustable pedals: Power(optional)
Storage: Cooled compartment
Cruise control
Overhead console: Front
Cupholders: Front, Rear, Third row
Universal remote transmitter: Garage door opener
Keypad entry
Multi-function remote: Illuminated entry, Keyless entry, Panic alarm, Trunk release
Center console: Rear console with armrest and storage(optional), Front console with armrest and storage
Memorized settings
Memorized settings: 2 driver(optional), Adjustable pedals(optional), Driver seat(optional), Side mirrors(optional)
In-car technology
Audio system
Auxiliary audio input: Bluetooth, Jack, Memory card slot, Usb
Total speakers: 7(optional), 6
Voice recognition
Satellite radio: Siriusxm
In-dash cd: Mp3 playback, Single disc
Radio: Am/fm, Touch screen display
Telematics
Wireless data link: Bluetooth
Phone: Voice activated
Electronic messaging assistance: Voice operated, With read function
Navigation system: Touch screen display(optional), Voice recognition(optional)
Infotainment: Sync
Real time traffic(optional)
Instrumentation
Fuel economy display: Mpg, Range
External temperature display
Multi-function display
Video system
Video system: Dvd player(optional), Auxiliary audio/video input
Video monitor location: Dual rear(optional), Front
Video monitor
Exterior
Roof
Roof rails color: Silver(optional)
Rear moonroof / sunroof: Fixed glass(optional)
Moonroof / sunroof: Power(optional), Sliding sunshade(optional)
Roof rails(optional)
Windows
One-touch windows: 2
Wheels
Wheels: Painted alloy(optional), Painted aluminum
Tires and rims
Spare wheel type: Steel
Tire type: All season
Tire pressure monitoring system
Wheel diameter: 20 inch(optional)
Warnings and reminders: Tire fill alert
Spare tire
Spare tire size: Temporary
Lights
Exterior entry lights: Security approach lamps
Courtesy lights: Door
Front fog lights
Headlights: Auto delay off, Auto on/off, Dusk sensing, Halogen, Wiper activated
Taillights: Rear center
Doors
Rear door type: Power liftgate(optional), Liftgate
Liftgate window: Fixed
Chassis & suspension
Suspension
Rear suspension classification: Independent
Front suspension type: Multi-link
Front suspension classification: Independent
Front stabilizer bar
Rear shock type: Gas
Rear stabilizer bar
Rear suspension type: Multi-link
Front shock type: Gas
Powertrain & drivetrain
Drivetrain
Oil cooler: Auxiliary(optional)
Engine
Remote engine start
Push-button start
Suv & truck equipment
Towing and hauling
Trailer wiring: 4-pin(optional), 7-pin(optional)
Trailer hitch: Class iii(optional)
Back to top

Ford Colors

Exterior
Oxford white
Bronze fire metallic tinted clearcoat
Magnetic
Kona blue
Ingot silver
Shadow black
Ruby red metallic tinted clearcoat
White platinum metallic tri-coat
Too good to be blue
Interior
Charcoal black
Charcoal black
Dark earth gray bolsters w / light earth gray inserts
Dune
Roof
Black
Oxford white
Monochromatic
Ingot silver
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Vehicle rollover rating
IIHS
Front impact: small overlap
IIHS
Front impact: moderate overlap
IIHS
Side impact
IIHS
Roof strength
IIHS
Head restraint system
IIHS
Crash prevention system
IIHS
Autoweb-calculated overall rating
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Airbag deactivation
Occupant sensing passenger
Front airbags
Dual
Side-curtain airbag rollover sensor
Side airbags
Front
Side curtain airbags
Rear, third row, front
Brakes
Rear brake type
Disc
Braking assist
Power brakes
Abs
4-wheel
Front brake type
Ventilated disc
Electronic brakeforce distribution
Child safety
Child safety door locks
Child seat anchors
Latch system
Locks
Power door locks
Auto-locking
Mirrors
Dimming rearview mirror
Auto
Side mirrors
Heated
Side mirror adjustments
Manual folding, power
Vanity mirrors
Dual illuminating
Side mirror type
Spotter mirror
Safety
Rearview monitor
In dash
Parking sensors
Rear
Security
Anti-theft system
Alarm, perimeter alarm, engine immobilizer
Stability and traction
Roll stability control
Stability control
Electronic
Traction control
Safety: optional features
Safety
Blind spot safety
Sensor/alert
Cross traffic alert
Rear
Stability and traction
Traction control
Trailer stability
Back to top

Ford Photo gallery

Back to top

Ford Flex Select a Style:

Style
MPG
Engine
MSRP
SE 4dr SUV/Crossover
SE 4dr SUV/Crossover
3.5L V6 6A
MPG 16 City / 23 Hwy / 19 Comb
Engine 3.5L V6
MSRP $ 29,600
SEL 4dr SUV/Crossover
SEL 4dr SUV/Crossover
3.5L V6 6A
MPG 16 City / 23 Hwy / 19 Comb
Engine 3.5L V6
MSRP $ 32,300
AWD SEL 4dr SUV/Crossover
AWD SEL 4dr SUV/Crossover
3.5L V6 6A
MPG 16 City / 22 Hwy / 18 Comb
Engine 3.5L V6
MSRP $ 34,250
Limited 4dr SUV/Crossover
Limited 4dr SUV/Crossover
3.5L V6 6A
MPG 16 City / 23 Hwy / 19 Comb
Engine 3.5L V6
MSRP $ 37,800
AWD Limited 4dr SUV/Crossover
AWD Limited 4dr SUV/Crossover
3.5L V6 6A
MPG 16 City / 22 Hwy / 18 Comb
Engine 3.5L V6
MSRP $ 39,750
AWD Limited EcoBoost 4dr SUV/Crossover
AWD Limited EcoBoost 4dr SUV/Crossover
3.5L V6 Twin Turbo 6A
MPG 15 City / 21 Hwy / 17 Comb
Engine 3.5L V6, Twin Turbocharged
MSRP $ 42,600
