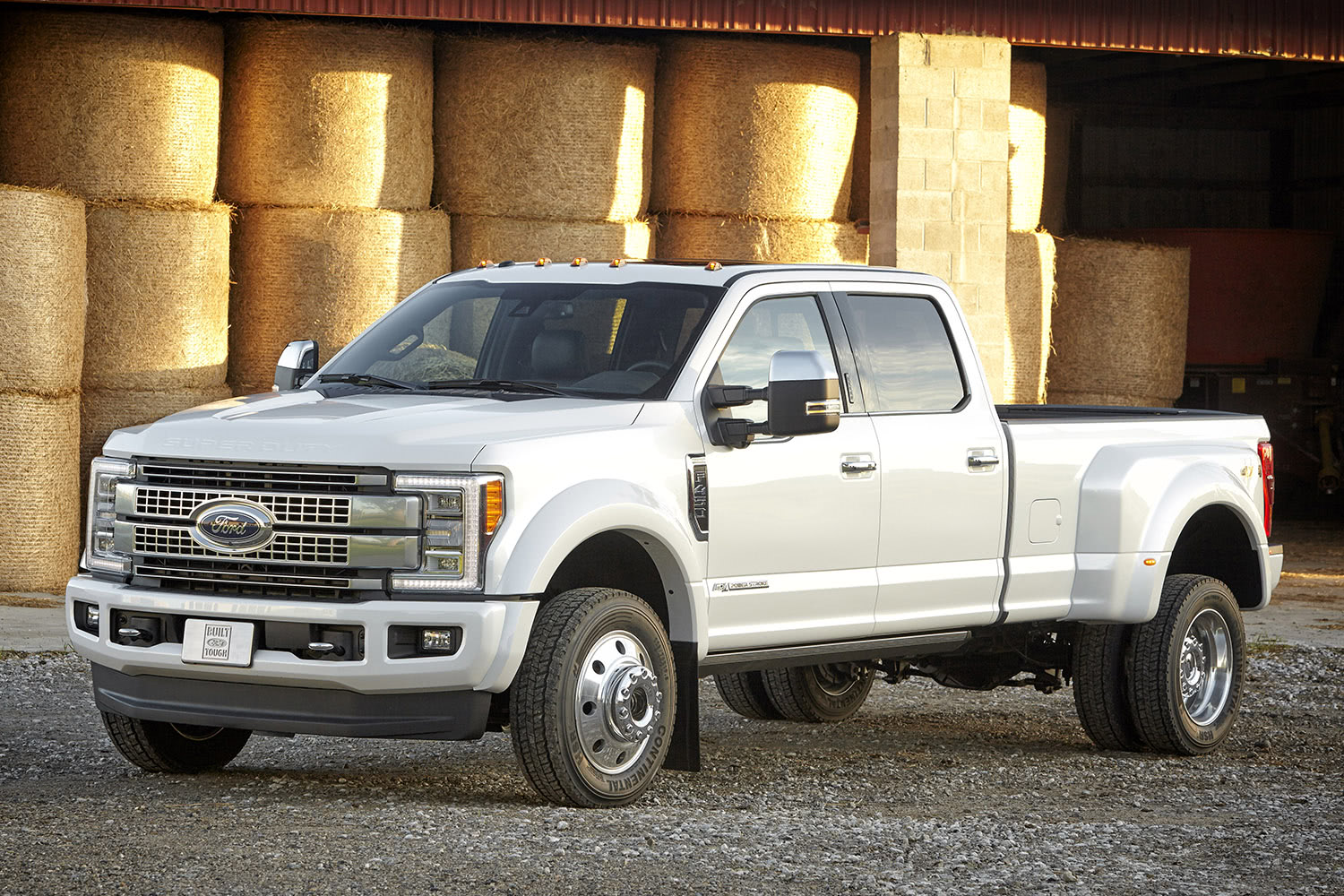

2017 Ford F-450

Share this car on:
Showing results in:

Vehicle information

MPG: Not Available
Engine: 6.7L V8, Turbocharged
Vehicle type: Full Size Truck
Fuel type: Diesel / Not Applicable
Transmission: 6-Speed Shiftable Automatic
Segment: Diesel
Basic warranty: 3 Years / 36,000 Miles
Drive type: 4-Wheel Drive
Seating capacity: 5 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
6.7L V8, Turbocharged
Required fuel rating
Not Applicable
Fuel description
Diesel
Engine compression ratio
16.2:1
Brand
Power Stroke
Engine horsepower
440 hp
Bore & stroke
3.90 in. x 4.25 in.
Engine max horsepower
440 hp @ 2800 rpm
Cam type
Overhead Valve (OHV)
Torque
925 lb-ft
Fuel induction
Common Rail Direct Injection (CRDI)
Max torque
925 lb-ft @ 1800 rpm
Number of valves
32
Transmission & drive type
Transmission
6-Speed Shiftable Automatic
Drive type
4-Wheel Drive
Four-wheel drive type
Pushbutton Hubs
Fuel economy
Not Available
Specifications

Length 22 ft. 2.2 in.

Silhouette side

Height 6 ft. 9 in.

Width 8 ft. 0 in.

Silhouette front
Angle of approach:
18.9 degrees
Angle of departure:
20.2 degrees
Bed length:
98 in.
Front track:
6 ft. 2.8 in.
Ground clearance:
0 ft. 8.3 in.
Height:
6 ft. 9 in.
Length:
22 ft. 2.2 in.
Maximum seating:
5
Rear track:
6 ft. 2.7 in.
Standard seating:
5
Wheelbase:
14 ft. 8 in.
Width:
8 ft. 0 in.
Width (no mirrors):
8 ft. 0 in.
Epa interior volume:
183.9 cu. ft.
Front head room:
40.8 in.
Front hip room:
62.5 in.
Front leg room:
43.9 in.
Front shoulder room:
66.7 in.
Passenger volume:
131.8 cu. ft.
Rear head room:
40.4 in.
Rear hip room:
64.7 in.
Rear leg room:
43.6 in.
Rear shoulder room:
65.9 in.
Standard cargo volume:
52.1 cu. ft.
Tires:
225/70R19.5 G
Tires (rear):
225/70R19.5 G
Turning circle:
50.4 ft.
Wheel size:
19.5
Wheel size (rear):
19.5
Fuel tank capacity:
48 gal.
Maximum towing capacity:
32500 lbs.
Payload:
5320 lbs.
Towing capacity:
21000 lbs.
Weight:
8590 lbs.
Weight (gvwr):
14000 lbs.
Back to top

Ford Pricing

Base price
MSRP
$72,455
Destination charge
$1,195
Invoice
$68,471
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
3 Years / 36,000 Miles
Rust & corrosion warranty
5 Years
Roadside assistance
5 Years / 60,000 Miles
Diesel engine warranty
5 Years / 100,000 Miles
Available options
MSRP
Invoice
Heavy service suspension package
Heavy service suspension package

Includes heavy service front springs (1 up upgrade above the spring computer selected as a consequence of options chosen. Not included if maximum springs have been computer selected as standard equipment). Note: May result in deterioration of ride quality. Vehicle ride height will increase with the addition of this package. Recommended only on vehicles which will permanently utilize aftermarket equipment.

$ 125
$ 115
Upfitter switches
Upfitter switches

Includes four (4) switches.

$ 165
$ 152
Vehicle safe by console vault
$ 330
$ 303
Rapid-heat supplemental cab heater
Rapid-heat supplemental cab heater

Standard in AK, CO, IA, ID, ME, MI, MN, MT, ND, NH, NY, SD, VT, WI and WY with 6.7L Power Stroke Diesel engine. Optional in all other states with 6.7L Power Stroke Diesel engine.

$ 250
$ 231
Premium floor covering - vinyl
Premium floor covering - vinyl

Includes all weather floor mats and carpeted floor mats.

$ 115
$ 105
Adaptive steering
$ 685
$ 631
Transmission power take-off provision
$ 280
$ 257
Dual alternators
Dual alternators

Includes a total of 332 amps.

$ 0
$ 0
Engine block heater
Engine block heater

Standard only in AK, CO, IA, ID, ME, MI, MN, MT, ND, NH, NY, SD, VT, WI, and WY states.

$ 75
$ 69
Extra heavy duty 220-amp alternator
$ 0
$ 0
Dual extra heavy duty alternator
Dual extra heavy duty alternator

Includes a total of 377-Amp.

$ 115
$ 105
Bed mat
$ 150
$ 139
Tailgate step
Tailgate step

Includes Tailgate Assist, step and a flip up grab bar.

$ 375
$ 345
Skid plate package
Skid plate package

Includes transfer case and fuel tank skid plates.

$ 100
$ 92
Stowable loading ramps
$ 695
$ 640
8 ft. long bed
8 ft. long bed

Includes 176 inch wheelbase, and 8 ft. long bed (4x4).

$ 0
$ 0
Tough bed spray-in bedliner
Tough bed spray-in bedliner

Includes tailgate guard, black box bed tie down hooks, and black bed attachment bolts.

$ 495
$ 456
Drop-in bedliner
$ 350
$ 323
Ruby red metallic tinted clearcoat paint
$ 395
$ 364
Power deployable running boards
$ 765
$ 732
6 in. chrome angular extended running boards
$ 230
$ 211
White platinum tri-coat metallic paint
$ 595
$ 548
Twin panel panoramic moonroof
Twin panel panoramic moonroof

Includes twin panel power panoramic moonroof with map lights and moonroof switches.

$ 1,025
$ 943
Ford telematics powered by telogis
Ford telematics powered by telogis

Includes onboard device that tracks vehicle location, speed and idle time with optional vehicle diagnostics and maintenance reports. Includes one year of Ford Telematics powered by Telogis.

$ 800
$ 736
Upfitter interface module
$ 295
$ 272
Tool/cargo box by delta
Tool/cargo box by delta

Includes in truck cargo box.

$ 530
$ 487
Daytime running lights
$ 45
$ 41
Cov required
$ 0
$ 0
Priced dora
$ 0
$ 0
Tow technology bundle
Tow technology bundle

Includes adaptive steering, lane departure warning, ultimate trailer tow camera system (includes 360 camera plus LED camera), and automatic high beam with rain sensing windshield wipers.

$ 1,735
$ 1,596
King ranch ultimate package
King ranch ultimate package

Includes multi-contour seats, LED fog lamps, LED tail lamps, quad LED head lamps, twin panel moonroof, power deployable running boards, tailgate step, BLIS (Blind Spot Information System) with Cross-Traffic Alert, and Trailer Tow (BLIS sensor in taillamp).

$ 2,960
$ 2,724
Fx4 off-road package
Fx4 off-road package

Includes hill descent control, transfer case and fuel tank skid plates, colored front and rear Rancho branded shocks, and unique FX4 Off Road box decal.

$ 295
$ 272
Ultimate trailer tow camera system
Ultimate trailer tow camera system

Includes rear view camera, 360 degree camera system, rear CHMSL camera, trailer reverse guidance and LED center high-mounted stop lamp (display in center stack screen).

$ 710
$ 653
Camper package
Camper package

Includes heavy service front springs (1 Up upgrade above the spring computer selected as a consequence of options chosen. Not included if maximum springs have been computer selected as standard equipment), and slide-in camper certification.

$ 160
$ 148
King ranch monochromatic paint package
King ranch monochromatic paint package

Includes monochromatic paint scheme (two-tone delete), chrome front and rear bumpers, and monotone fender flares.

$ 0
$ 0
Chrome package
Chrome package

Includes 6 in. angular chrome step bars, body color door handles with chrome insert, unique chrome mirror caps, chrome front and rear bumpers, chrome exhaust tip, chrome pickup bed tie-down hooks, two front chrome tow hooks, and chrome rear tailgate applique.

$ 1,125
$ 1,035
Snowplow/camper package
Snowplow/camper package

Includes computer selected springs for snowplow application, extra heavy duty alternator, heavy duty front springs, and slide-in camper certification.

$ 245
$ 225
Snow plow prep package
Snow plow prep package

Includes computer pre-selected springs, 67D Extra Heavy Duty Alternator with Power Stroke diesel engine, or heavy duty alternator with gas engine.

$ 85
$ 79
Led lighting package
Led lighting package

Includes quad beam LED headlamps, LED fog lamps and LED tail lamps.

$ 1,080
$ 993
Rear inflatable seat belts
Rear inflatable seat belts

Includes rear inflatable seat belts with rear belt monitor.

$ 185
$ 171
Adaptive cruise control and collision warning w/brake support
$ 740
$ 680
Trailer camera and tpms
Trailer camera and tpms

Includes individual trailer TPMS and customer-placed trailer camera.

$ 725
$ 667
Blind spot information system w/cross-traffic alert
Blind spot information system w/cross-traffic alert

Includes BLIS (Blind Spot Information System) with Cross-Traffic Alert, and Trailer Tow (BLIS sensor in taillamp).

$ 540
$ 496
Rear chmsl camera
Rear chmsl camera

Includes LED center high-mounted stop lamp with cargo light and rear video camera with display in center stack screen.

$ 200
$ 184
Trailer camera
Trailer camera

Includes customer-placed trailer camera.

$ 375
$ 345
Exterior back-up alarm
$ 140
$ 128
Heated rear seats
$ 300
$ 276
5th wheel/gooseneck hitch prep package
5th wheel/gooseneck hitch prep package

Includes one frame under-bed cross member, five pickup bed attachment points with plugs, and one integrated 7-pin connector on drivers side pick-up bed wall.

$ 370
$ 341
Gooseneck dual hitch kit
Gooseneck dual hitch kit

Includes one 2 5/16 inch gooseneck ball, one 3 inch gooseneck ball, and two safety chain tie-down bars.

$ 370
$ 341
5th wheel hitch kit
5th wheel hitch kit

Includes 27.5k rated hitch.

$ 1,495
$ 1,376
Back to top

Ford Features

Comfort
Comfort features
Reading lights: Front, Rear
Steering wheel trim: Leather
Heated steering wheel
Door sill trim: Scuff plate
Dash trim: Wood
Center console trim: Leather
Floor mats: Front, Rear
Door trim: Leather, Wood
Air conditioning
Front air conditioning zones: Dual
Front air conditioning: Automatic climate control
Air filtration
Headrests
Front headrests: Adjustable
Rear headrests: Adjustable
Seating
Driver seat
Driver seat power adjustments: 10, Lumbar, Reclining
Driver seat: Cooled, Heated
Passenger seat
Passenger seat power adjustments: 10, Lumbar, Reclining
Passenger seat: Cooled, Heated
Rear seats
Rear seat: Heated(optional)
Rear seat folding: Flip and fold, Split
Seats
Upholstery: Leather
Rear vents: Second row
Rear seat type: 60-40 split bench flip-up seat
Rear headrests: 3
Armrests: Rear center with cupholders
Driver seat power adjustments: Height
Front seat type: Captains chairs
Passenger seat power adjustments: Height
Front headrests: 2
Seatbelts
Inflatable seatbelts: Rear(optional)
Rear seatbelts: 3-point
Seatbelt pretensioners: Front
Convenience
Convenience features
Universal remote transmitter: Garage door opener
Power outlet(s): 115v front, 115v rear, 12v front, 12v rear
Power steering: Variable/speed-proportional(optional)
Overhead console: Front
Multi-function remote: Proximity entry system
Camera system: Rearview
Adjustable pedals: Power
Steering wheel mounted controls: Audio, Cruise control, Multi-function, Navigation, Phone, Voice recognition
Steering wheel: Power tilt and telescopic
Keypad entry
Easy entry: Power driver seat
Cupholders: Front, Rear
Center console: Front console with armrest and storage
Cruise control: Adaptive(optional)
Memorized settings
Memorized settings: 2 driver, Adjustable pedals, Driver seat, Passenger seat, Side mirrors, Steering wheel
In-car technology
Audio system
Satellite radio: Siriusxm
Radio: Am/fm, Hd radio, Touch screen display
In-dash cd: Mp3 playback, Single disc
Voice recognition
Total speakers: 10
Subwoofer: 1
Auxiliary audio input: Bluetooth, Ipod/iphone, Jack, Memory card slot, Usb
Premium brand: Sony
Premium brand speakers: Sony
Telematics
Wireless data link: Bluetooth
Navigation system: Hard drive, Touch screen display, Voice recognition
Driver assistance app: Roadside assistance
Phone: Hands free, Voice activated
Infotainment: Sync
Electronic messaging assistance: With read function
Instrumentation
Multi-function display
Multi-functional information center
Fuel economy display: Mpg, Range
External temperature display
In car entertainment
Infotainment: Android auto ready, Apple carplay ready
Video system
Video system: Auxiliary audio/video input
Exterior
Roof
Moonroof / sunroof: Anti-trapping(optional), Dual(optional), Dual power(optional), One-touch open/close(optional), Power glass(optional), Power panoramic(optional), Power sunshade(optional)
Windows
One-touch windows: 2
Window defogger: Rear
Rear privacy glass
Wheels
Wheels: Polished aluminum
Tires and rims
Spare wheel type: Steel
Spare tire kit
Tire type: All season
Dual rear wheels
Spare tire
Spare tire size: Full-size
Lights
Ambient lighting
Taillights: Led(optional), Led rear center
Daytime running lights(optional)
Front fog lights: Led(optional)
Exterior entry lights: Puddle lamps, Security approach lamps
Headlights: Led(optional), Auto delay off, Automatic high beam dimmer, Dusk sensing, Halogen, Quad headlights, Wiper activated
Exterior features
Skid plate(s): Front(optional), Rear(optional)
Running board color: Chrome(optional), Accent
Mudguards: Front
Running boards: Power retractable(optional), Illuminated
Chassis & suspension
Suspension
Front suspension type: Multi-link
Rear stabilizer bar
Rear shock type: Gas
Tuned suspension: Heavy duty(optional), Off-road(optional)
Rear suspension classification: Solid live axle
Rear suspension type: Multi-leaf
Front stabilizer bar
Front shock type: Gas
Front suspension classification: Solid live axle
Powertrain & drivetrain
Drivetrain
4wd selector: Electronic hi-lo
Limited slip differential: Rear
Engine
Engine hour meter
Push-button start
Remote engine start
Suv & truck equipment
Towing and hauling
Cargo tie downs(optional)
Trailer wiring: 4-pin, 7-pin
Trailer hitch
Trailer brake controller
Tow hooks: Front
Truck features
Pickup bed light: Led
Running boards: Step
Pickup bed liner: Spray-on(optional)
Tailgate: Step(optional), Lift assist, Power locking, Power open, Removable
Pickup sliding rear window: Power horizontal
Back to top

Ford Colors

Exterior
White gold / caribou
Bronze fire
Blue jeans / caribou
Blue jeans
White platinum metallic tri-coat / caribou
Shadow black / caribou
Oxford white
Ruby red metallic tinted clearcoat
Ruby red metallic clearcoat / caribou
Oxford white / caribou
Bronze fire / caribou
Caribou
Shadow black
White gold
Interior
Java
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
No Data Available
Safety: standard features
Airbags
Airbag deactivation
Passenger switch
Front airbags
Dual
Side-curtain airbag rollover sensor
Side airbags
Front
Side curtain airbags
Rear, front
Brakes
Rear brake type
Ventilated disc
Electronic brakeforce distribution
Power brakes
Braking assist
Abs
4-wheel
Front brake type
Ventilated disc
Child safety
Child seat anchors
Latch system
Child safety door locks
Locks
Power door locks
Auto-locking
Mirrors
Side mirror adjustments
Power, power folding, power telescoping
Side mirrors
Driver side auto-dimming, integrated turn signals, heated
Dimming rearview mirror
Auto
Side mirror type
Towing, spotter mirror
Vanity mirrors
Dual illuminating
Safety
Rearview monitor
In dash
Parking sensors
Rear
Security
Anti-theft system
Alarm with remote, anti-tow sensor, interior motion sensor, engine immobilizer, perimeter alarm
Stability and traction
Roll stability control
Hill ascent assist
Traction control
Trailer stability
Stability control
Safety: optional features
Stability and traction
Hill descent control
Brakes
Emergency braking preparation
Safety
Blind spot safety
In-dash blind spot display, sensor/alert
Camera system
Surround view
Cross traffic alert
Rear
Lane deviation sensors
Pre-collision warning system
Audible warning, visual warning
Back to top

Ford Photo gallery

Back to top

Ford F-450 Select a Style:

Style
MPG
Engine
MSRP
4x4 XL 4dr Crew Cab LB DRW
4x4 XL 4dr Crew Cab LB DRW
6.7L V8 Turbo Diesel 6A
Not Available
Engine 6.7L V8, Turbocharged
MSRP $ 53,945
4x4 XLT 4dr Crew Cab LB DRW
4x4 XLT 4dr Crew Cab LB DRW
6.7L V8 Turbo Diesel 6A
Not Available
Engine 6.7L V8, Turbocharged
MSRP $ 58,810
4x4 Lariat 4dr Crew Cab LB DRW
4x4 Lariat 4dr Crew Cab LB DRW
6.7L V8 Turbo Diesel 6A
Not Available
Engine 6.7L V8, Turbocharged
MSRP $ 65,635
4x4 King Ranch 4dr Crew Cab LB DRW
4x4 King Ranch 4dr Crew Cab LB DRW
6.7L V8 Turbo Diesel 6A
Not Available
Engine 6.7L V8, Turbocharged
MSRP $ 72,455
4x4 Platinum 4dr Crew Cab LB DRW
4x4 Platinum 4dr Crew Cab LB DRW
6.7L V8 Turbo Diesel 6A
Not Available
Engine 6.7L V8, Turbocharged
MSRP $ 77,125
