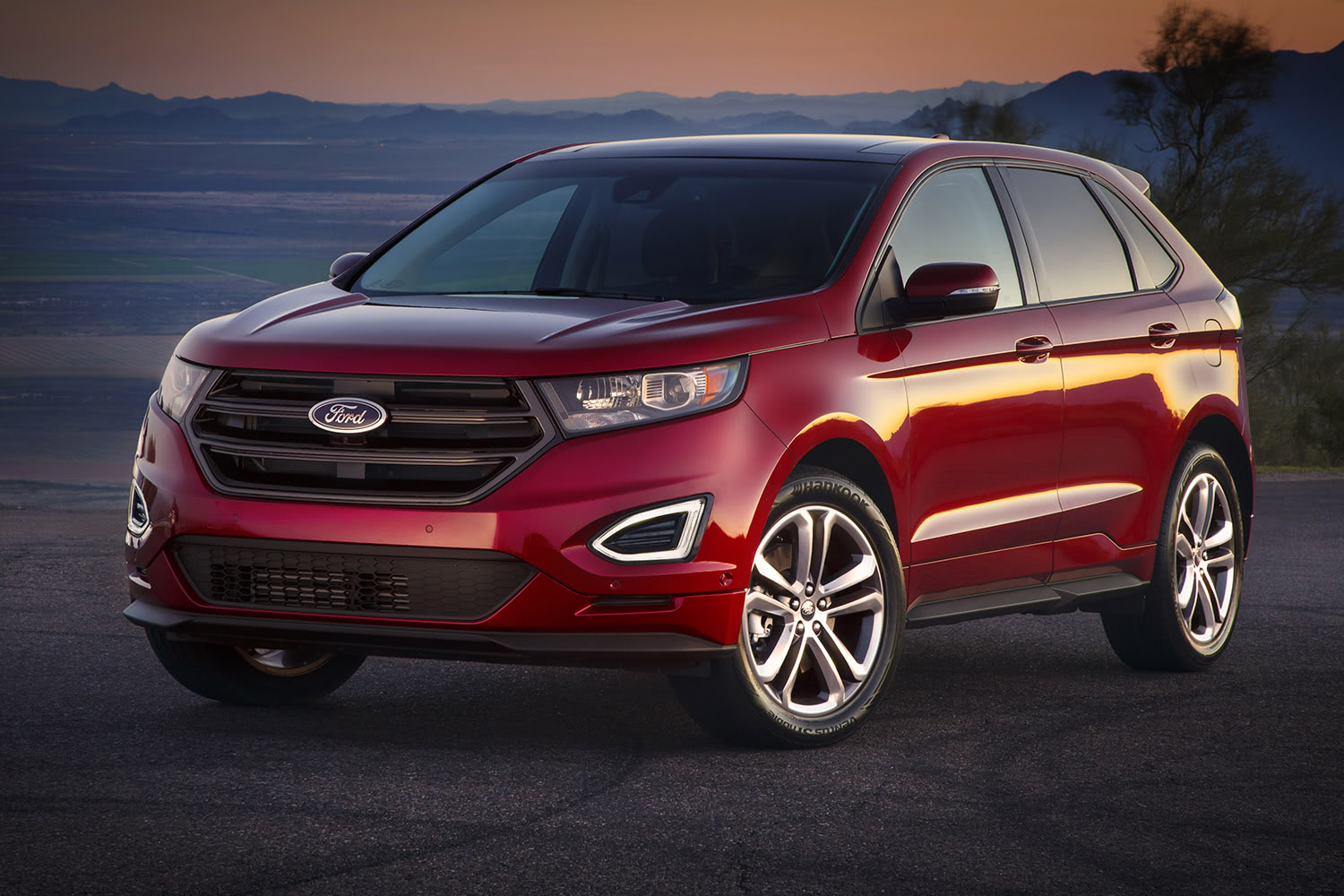

2016 Ford Edge

Share this car on:
Showing results in:

Vehicle information

MPG: 17 City / 25 Hwy / 20 Comb
Engine: 3.5L V6
Vehicle type: Midsize SUV/Crossover
Fuel type: Gasoline / 87 Octane
Transmission: 6-Speed Shiftable Automatic
Segment: N/A
Basic warranty: 3 Years / 36,000 Miles
Drive type: All-Wheel Drive
Seating capacity: 5 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
3.5L V6
Required fuel rating
87 Octane
Fuel description
Gasoline
Engine compression ratio
10.8:1
Bore & stroke
3.64 in. x 3.41 in.
Engine horsepower
280 hp
Cam type
Dual Overhead Cam (DOHC)
Engine max horsepower
280 hp @ 6500 rpm
Fuel induction
Sequential Multi-Port Fuel Injection (SMPI)
Torque
250 lb-ft
Number of valves
24
Max torque
250 lb-ft @ 4000 rpm
Valve timing
Variable Valve Timing
Oil capacity
5.4 quarts
Transmission & drive type
Transmission
6-Speed Shiftable Automatic
Drive type
All-Wheel Drive
Fuel economy
standard drivetrain
MPG: 17 City / 25 Hwy / 20 Comb
3.5L V6 / 6-Speed Shiftable Automatic / Gasoline / 87 Octane
Specifications

Length 15 ft. 8.1 in.

Silhouette side

Height 5 ft. 8.6 in.

Width 7 ft. 1.8 in.

Silhouette front
Front track:
5 ft. 4.8 in.
Ground clearance:
0 ft. 7.9 in.
Height:
5 ft. 8.6 in.
Length:
15 ft. 8.1 in.
Maximum seating:
5
Rear track:
5 ft. 4.7 in.
Standard seating:
5
Wheelbase:
9 ft. 4.2 in.
Width:
7 ft. 1.8 in.
Width (no mirrors):
6 ft. 3.9 in.
Epa interior volume:
153.1 cu. ft.
Front head room:
40.2 in.
Front hip room:
55.9 in.
Front leg room:
42.6 in.
Front shoulder room:
60.3 in.
Maximum cargo volume:
73.4 cu. ft.
Passenger volume:
113.9 cu. ft.
Rear head room:
40.3 in.
Rear hip room:
57.5 in.
Rear leg room:
40.6 in.
Rear shoulder room:
60.5 in.
Standard cargo volume:
39.2 cu. ft.
Tires:
245/60R18
Tires (rear):
245/60R18
Turning circle:
39.3 ft.
Wheel size:
18.0 x 7.0
Wheel size (rear):
18.0 x 7.0
Fuel tank capacity:
19.2 gal.
Maximum towing capacity:
3500 lbs.
Payload:
1445 lbs.
Towing capacity:
2000 lbs.
Weight:
4078 lbs.
Weight (gvwr):
5523 lbs.
Back to top

Ford Pricing

Base price
MSRP
$34,410
Destination charge
$895
Invoice
$32,859
Gas guzzler tax
Not Available
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
All weather floor mats
All weather floor mats

Includes front and rear all weather floor mats.

$ 75
$ 71
All weather floor mats
All weather floor mats

Includes front and rear all weather floor mats.

$ 75
$ 70
3.39 axle ratio
$ 0
$ 0
California public service/emergency vehicle exception
California public service/emergency vehicle exception

Only available on units sold for authorized public service or emergency service use. Must also use Code 423 when ordering.

$ 0
$ 0
Non-california emissions/non-cross-border states dealer order for california states registration
Non-california emissions/non-cross-border states dealer order for california states registration

Federal dealers ordering vehicles with code 422 are required to also use code 93N to attest that the vehicle is being sold/delivered to a customer intending to register the vehicle in a California-Emissions or Cross-Border State. It is a violation of federal law for a Federal State dealer to sell a vehicle with code 422 (California Emissions System) unless the vehicle will be registered in a California-Emissions or Cross-Border State.

$ 0
$ 0
California emissions system not required
California emissions system not required

Control code for units either shipped to California Emissions States dealers or ordered by California Emissions States dealers for registration in non-California States locations. In Maine, Vermont, and Rhode Island, dealers cannot order vehicles for customers in non-California Emission States locations except Public Service/Emergency Vehicles-936.

$ 0
$ 0
California emissions system
California emissions system

Required on all units for California, Connecticut, Maine, Massachusetts, Maryland, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington registration. Optional for Cross Border States. (Arizona, Washington, D.C., Delaware, Idaho, Nevada, New Hampshire, Ohio, Virginia, and West Virginia).

$ 0
$ 0
Ruby red metallic tinted clearcoat paint
$ 395
$ 375
White platinum metallic tri-coat paint
$ 595
$ 555
Ruby red metallic tinted clearcoat paint
$ 395
$ 369
Front license plate bracket
$ 0
$ 0
Bronze fire metallic tinted clearcoat paint
$ 395
$ 369
White platinum metallic tri-coat paint
$ 595
$ 565
Bronze fire metallic tinted clearcoat paint
$ 395
$ 375
Panoramic vista roof
Panoramic vista roof

Includes front power sunroof and fixed rear moonroof with "one touch" express open and dual power sunshades.

$ 1,595
$ 1,515
Black roof rack side rails
$ 195
$ 182
Black roof rack side rails
$ 195
$ 185
Panoramic vista roof
Panoramic vista roof

Includes front power sunroof and fixed rear moonroof with "one touch" express open and dual power sunshades.

$ 1,595
$ 1,488
18 inch polished aluminum wheels
$ 895
$ 850
18 inch polished aluminum wheels
$ 895
$ 835
Locking wheel nuts
$ 75
$ 71
All-season snow chain compatible tires
All-season snow chain compatible tires

Includes 235/60R18 all-season snow chain compatible tires.

$ 0
$ 0
Locking wheel nuts
$ 0
$ 0
Locking wheel nuts
$ 75
$ 70
Invision dual headrest dvd entertainment system
Invision dual headrest dvd entertainment system

Includes two independent DVD systems with 7 inch LCD widescreen headrest monitors, top slot loading DVD player with CD/MP3 playback capability, gaming ports and remote control, two dual-channel infrared headphones, and hardwired audio feed.

$ 1,995
$ 1,895
Invision dual headrest dvd entertainment system
Invision dual headrest dvd entertainment system

Includes two independent DVD systems with 7 inch LCD widescreen headrest monitors, top slot loading DVD player with CD/MP3 playback capability, gaming ports and remote control, two dual-channel infrared headphones, and hardwired audio feed.

$ 1,995
$ 1,861
Engine block heater
$ 90
$ 86
Engine block heater
$ 90
$ 84
Daytime running lights
$ 45
$ 42
Awd discount
$ -500
$ -475
Awd discount
$ -500
$ -466
Equipment group 201a
Equipment group 201a

Includes SYNC 3 with enhanced voice recognition communications and entertainment system, 8 inch LCD touch screen in center stack, 2 smart-charging USB ports, AppLink, 911 Assist, 5-way controls located on steering wheel, premium 9-speaker audio system, leather-trimmed seating surfaces and heated front seats.

$ 2,710
$ 2,574
Utility package
Utility package

Includes hands-free power liftgate, perimeter alarm, and universal garage door opener.

$ 875
$ 816
Equipment group 201a discount
$ -600
$ -570
Technology package
Technology package

Includes voice-activated navigation system and integrated traffic and travel link, Blind Spot Information System (BLIS) with cross-traffic alert, remote engine start, auto-dimming driver's exterior mirror, and 100V power outlet.

$ 1,395
$ 1,301
Cold weather package
Cold weather package

Includes all-weather floor mats and heated steering wheel.

$ 325
$ 309
Cargo accessory package
Cargo accessory package

Includes cargo cover, cargo area protector, and rear bumper protector.

$ 290
$ 271
Equipment group 200a
Equipment group 200a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Equipment group 201a
Equipment group 201a

Includes SYNC 3 with enhanced voice recognition communications and entertainment system, 8 inch LCD touch screen in center stack, 2 smart-charging USB ports, AppLink, 911 Assist, 5-way controls located on steering wheel, premium 9-speaker audio system, leather-trimmed seating surfaces and heated front seats.

$ 2,710
$ 2,527
Utility package
Utility package

Includes hands-free power liftgate, perimeter alarm, and universal garage door opener.

$ 875
$ 831
Cold weather package
Cold weather package

Includes all-weather floor mats and heated steering wheel.

$ 325
$ 303
Equipment group 201a discount
$ -600
$ -560
Cargo accessory package
Cargo accessory package

Includes cargo cover, cargo area protector, and rear bumper protector.

$ 290
$ 276
Technology package
Technology package

Includes voice-activated navigation system and integrated traffic and travel link, Blind Spot Information System (BLIS) with cross-traffic alert, remote engine start, auto-dimming driver's exterior mirror, and 100V power outlet.

$ 1,395
$ 1,325
Inflatable rear seatbelts
Inflatable rear seatbelts

Includes second row, inflatable seat belts.

$ 195
$ 182
Inflatable rear seatbelts
Inflatable rear seatbelts

Includes second row, inflatable seat belts.

$ 195
$ 185
Trailer tow package
Trailer tow package

Includes Class II trailer receiver hitch, wiring harness with 4-pin connector, and trailer sway mitigation.

$ 435
$ 405
Trailer tow package
Trailer tow package

Includes Class II trailer receiver hitch, wiring harness with 4-pin connector, and trailer sway mitigation.

$ 435
$ 413
Back to top

Ford Features

Comfort
Comfort features
Floor mats: Front, Rear
Reading lights: Front, Rear
Heated steering wheel(optional)
Steering wheel trim: Leather
Dash trim: Alloy
Shift knob trim: Leather
Cargo area floor mat(optional)
Air conditioning
Front air conditioning: Automatic climate control
Air filtration
Front air conditioning zones: Dual
Headrests
Rear headrests: Adjustable
Front headrests: Adjustable
Seating
Driver seat
Driver seat power adjustments: 10, Lumbar, Reclining
Driver seat: Heated(optional)
Passenger seat
Passenger seat power adjustments: 6, Reclining
Passenger seat: Heated(optional)
Rear seats
Rear seat folding: Flat, Split
Rear seat manual adjustments: Reclining
Seats
Armrests: Rear center with cupholders
Rear seat type: 60-40 split bench
Rear headrests: 3
Front headrests: 2
Passenger seat power adjustments: Height
Upholstery: Leather-trimmed(optional), Cloth
Front seat type: Bucket
Driver seat power adjustments: Height
Seatbelts
Rear seatbelts: 3-point
Seatbelt force limiters: Front
Seatbelt pretensioners: Front
Inflatable seatbelts: Rear(optional)
Convenience
Convenience features
Multi-function remote: Proximity entry system, Trunk release
Camera system: Rearview
Keypad entry
Steering wheel mounted controls: Audio, Cruise control, Multi-function, Paddle shifter, Phone, Voice recognition
Overhead console: Front
Cupholders: 8, Front, Rear
Cruise control
Cargo area protector(optional)
Steering wheel: Tilt and telescopic
Cargo cover(optional)
Center console: Front console with armrest and storage
Universal remote transmitter: Garage door opener(optional)
Power outlet(s): 115v front(optional), 12v front, 12v rear
Power steering
In-car technology
Audio system
In-dash cd: Mp3 playback, Single disc
Headphones: Wired(optional), Wireless(optional)
Satellite radio: Siriusxm
Radio: Touch screen display(optional), Am/fm
Total speakers: 9(optional), 6
Voice recognition
Auxiliary audio input: Bluetooth, Ipod/iphone, Jack
Headphone jacks: Rear(optional)
Telematics
Navigation system: Touch screen display(optional), Voice recognition(optional)
Wireless data link: Bluetooth
Phone: Voice activated
Infotainment: Sync
Electronic messaging assistance: Voice operated, With read function
Real time traffic(optional)
Instrumentation
Multi-function display
Fuel economy display: Mpg, Range
External temperature display
In car entertainment
Connected in-car apps: App marketplace integration(optional)
Video system
Video monitor location: Dual rear(optional)
Video monitor size: 7(optional)
Video system: Auxiliary audio/video input(optional), Dvd player(optional)
Video monitor(optional)
Exterior
Roof
Roof rails(optional)
Roof rails color: Black(optional)
Rear moonroof / sunroof: Fixed glass(optional)
Moonroof / sunroof: Anti-trapping(optional), One-touch open/close(optional), Power panoramic(optional), Power sunshade(optional)
Windows
One-touch windows: 2
Rear privacy glass
Window defogger: Rear
Wheels
Wheels: Polished aluminum(optional), Painted aluminum
Tires and rims
Tire pressure monitoring system
Wheel diameter: 18 inch(optional)
Spare wheel type: Steel
Tire type: All season
Warnings and reminders: Tire fill alert
Spare tire
Spare tire size: Temporary
Lights
Daytime running lights, Led
Headlights: Auto delay off, Auto on/off, Halogen, Wiper activated
Exterior entry lights: Security approach lamps
Taillights: Led
Doors
Liftgate window: Fixed
Rear door type: Power liftgate(optional), Sensor-activated(optional), Liftgate
Exterior features
Active grille shutters
Rear spoiler: Roofline
Chassis & suspension
Suspension
Rear suspension classification: Independent
Rear stabilizer bar
Front suspension classification: Independent
Front struts: Macpherson
Front stabilizer bar
Rear suspension type: Multi-link
Powertrain & drivetrain
Drivetrain
Center differential: Mechanical
Engine
Remote engine start(optional)
Push-button start
Suv & truck equipment
Towing and hauling
Trailer wiring: 4-pin(optional)
Trailer hitch: Class ii(optional)
Back to top

Ford Colors

Exterior
Electric spice
Bronze fire metallic tinted clearcoat
Ingot silver
Magnetic
Kona blue
Oxford white
Shadow black
Ruby red metallic tinted clearcoat
White platinum metallic tri-coat
Too good to be blue
Interior
Dune
Ebony
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Overall rating
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side vehicle impact: rear passenger
NHTSA
Side pole impact: driver
NHTSA
Side impact: combined rear
NHTSA
Vehicle rollover rating
IIHS
Front impact: small overlap
IIHS
Front impact: moderate overlap
IIHS
Side impact
IIHS
Roof strength
IIHS
Head restraint system
IIHS
Crash prevention system
IIHS
Autoweb-calculated overall rating
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Front airbags
Dual
Airbag deactivation
Occupant sensing passenger
Side airbags
Front
Side curtain airbags
Rear, front
Knee airbags
Dual front
Side-curtain airbag rollover sensor
Brakes
Power brakes
Braking assist
Hill holder control
Cornering brake control
Rear brake type
Disc
Abs
4-wheel
Electronic brakeforce distribution
Front brake type
Ventilated disc
Child safety
Child safety door locks
Child seat anchors
Latch system
Locks
Power door locks
Auto-locking
Mirrors
Dimming rearview mirror
Auto
Vanity mirrors
Dual illuminating
Side mirror type
Spotter mirror
Side mirrors
Integrated turn signals, heated
Side mirror adjustments
Power, manual folding
Safety
Parking sensors
Rear
Rearview monitor
In dash
Security
Anti-theft system
Engine immobilizer, alarm
Stability and traction
Roll stability control
Traction control
Stability control
Electronic
Safety: optional features
Stability and traction
Traction control
Trailer stability
Mirrors
Side mirrors
Driver side auto-dimming
Safety
Blind spot safety
Sensor/alert
Cross traffic alert
Rear
Security
Anti-theft system
Perimeter alarm
Back to top

Ford Photo gallery

Back to top

Ford Edge Select a Style:

Style
MPG
Engine
MSRP
SE 4dr SUV/Crossover
SE 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 30 Hwy / 24 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 28,700
AWD SE 4dr SUV/Crossover
AWD SE 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 30,695
SEL 4dr SUV/Crossover
SEL 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 30 Hwy / 24 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 31,790
SEL 4dr SUV/Crossover
SEL 4dr SUV/Crossover
3.5L V6 6A
MPG 18 City / 26 Hwy / 21 Comb
Engine 3.5L V6
MSRP $ 32,415
AWD SEL 4dr SUV/Crossover
AWD SEL 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 33,785
AWD SEL 4dr SUV/Crossover
AWD SEL 4dr SUV/Crossover
3.5L V6 6A
MPG 17 City / 25 Hwy / 20 Comb
Engine 3.5L V6
MSRP $ 34,410
Titanium 4dr SUV/Crossover
Titanium 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 30 Hwy / 24 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 35,600
Titanium 4dr SUV/Crossover
Titanium 4dr SUV/Crossover
3.5L V6 6A
MPG 18 City / 26 Hwy / 21 Comb
Engine 3.5L V6
MSRP $ 36,225
AWD Titanium 4dr SUV/Crossover
AWD Titanium 4dr SUV/Crossover
2.0L I4 Turbo 6A
MPG 20 City / 28 Hwy / 23 Comb
Engine 2.0L Inline4, Turbocharged
MSRP $ 37,595
AWD Titanium 4dr SUV/Crossover
AWD Titanium 4dr SUV/Crossover
3.5L V6 6A
MPG 17 City / 25 Hwy / 20 Comb
Engine 3.5L V6
MSRP $ 38,220
AWD Sport 4dr SUV/Crossover
AWD Sport 4dr SUV/Crossover
2.7L V6 Turbo 6A
MPG 17 City / 24 Hwy / 20 Comb
Engine 2.7L V6, Turbocharged
MSRP $ 40,900
