2014 Ford C-MAX

Share this car on:
Showing results in:

Vehicle information

MPG: 40 City / 36 Hwy / 38 Comb
Engine: 2.0L Inline4
Vehicle type: Compact Wagon
Fuel type: Plug-In Hybrid / 87 Octane
Transmission: Continuously Variable (CVT)
Segment: Hybrid Electric
Basic warranty: 3 Years / 36,000 Miles
Drive type: Front-Wheel Drive
Seating capacity: 5 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
2.0L Inline4
Engine horsepower
141 hp
Fuel description
Plug-In Hybrid
Engine max horsepower
141 hp @ 6000 rpm
Bore & stroke
3.44 in. x 3.27 in.
Torque
129 lb-ft
Cam type
Dual Overhead Cam (DOHC)
Max torque
129 lb-ft @ 4000 rpm
Fuel induction
Sequential Multi-Port Fuel Injection (SMPI)
Electric motor horsepower
118 hp
Number of valves
16
Electric motor torque
117 lb-ft
Valve timing
Variable Valve Timing
Total horsepower
188 hp
Required fuel rating
87 Octane
Total max horsepower
188 hp @ 6000 rpm
Engine compression ratio
12.3:1
Oil capacity
4.3 quarts
Transmission & drive type
Transmission
Continuously Variable (CVT)
Drive type
Front-Wheel Drive
Fuel economy
standard drivetrain
MPG: 40 City / 36 Hwy / 38 Comb
2.0L Inline4 / Continuously Variable (CVT) / Gasoline / 87 Octane
optional drivetrain
MPG: 95 City / 81 Hwy / 88 Comb
2.0L Inline4 / Continuously Variable (CVT) / Electricity
Specifications

Length 14 ft. 5.6 in.

Silhouette side

Height 5 ft. 3.8 in.

Width 6 ft. 3.6 in.

Silhouette front
Front track:
5 ft. 0.5 in.
Ground clearance:
0 ft. 5.5 in.
Height:
5 ft. 3.8 in.
Length:
14 ft. 5.6 in.
Maximum seating:
5
Rear track:
5 ft. 0.4 in.
Standard seating:
5
Wheelbase:
8 ft. 8.3 in.
Width:
6 ft. 3.6 in.
Width (no mirrors):
6 ft. 0 in.
Front head room:
41 in.
Front hip room:
54.3 in.
Front leg room:
43.1 in.
Front shoulder room:
55.9 in.
Maximum cargo volume:
42.8 cu. ft.
Passenger volume:
99.7 cu. ft.
Rear head room:
39.4 in.
Rear hip room:
51.9 in.
Rear leg room:
36.5 in.
Rear shoulder room:
55.2 in.
Standard cargo volume:
19.2 cu. ft.
Tires:
P225/50R17
Tires (rear):
P225/50R17
Turning circle:
38.4 ft.
Wheel size:
17.0 x 7.0
Wheel size (rear):
17.0 x 7.0
Fuel tank capacity:
14 gal.
Weight:
3859 lbs.
Back to top

Ford Pricing

Base price
MSRP
$32,920
Destination charge
$825
Invoice
$30,699
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Hybrid systems warranty
8 Years / 100,000 Miles
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
Charge cord bag
$ 60
$ 54
50-state emissions system
$ 0
$ 0
Blue candy metallic tinted clearcoat
$ 395
$ 353
White platinum metallic tricoat paint
$ 595
$ 531
Full vehicle car cover
$ 375
$ 335
Front license plate bracket
Front license plate bracket

Standard in states requiring two license plates and optional to all others.

$ 0
$ 0
Charge port door graphic
$ 60
$ 54
Ruby red metallic tinted clearcoat
$ 395
$ 353
Power panorama roof
$ 1,315
$ 1,173
Engine block heater
$ 35
$ 30
Daytime running lights
$ 45
$ 40
Exterior protection package
Exterior protection package

Includes clear tape rear bumper protection, and molded front and rear splash guards.

$ 245
$ 218
Equipment group 303a discount
$ -80
$ -71
Equipment group 302a discount
$ -80
$ -71
Equipment group 303a
Equipment group 303a

Includes vehicle with standard equipment and Premium Audio and Navigation Package with Sony branded audio system, 9 speakers, HD radio, Sync Gen II with navigation system, Media hub with 2 USB ports, AV input, SD card slot, DM 8, 8 Inch TFT screen, PHEV Eco route includes charge point locations, and Hands-Free Technology Package with power liftgate, rearview camera, and hands-free liftgate, and Parking Technology Package with active park assist and front sensing system.

$ 3,080
$ 2,749
Equipment group 301a
Equipment group 301a

Includes vehicle with standard equipment and Premium Audio and Navigation Package with Sony branded audio system, 9 speakers, HD radio, Sync Gen II with navigation system, Media hub with 2 USB ports, AV input, SD card slot, DM 8, 8 Inch TFT screen, PHEV Eco route includes charge point locations.

$ 1,440
$ 1,285
Equipment group 301a discount
$ -245
$ -218
Equipment group 300a
Equipment group 300a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Equipment group 302a
Equipment group 302a

Includes vehicle with standard equipment and Premium Audio and Navigation Package with Sony branded audio system, 9 speakers, HD radio, Sync Gen II with navigation system, Media hub with 2 USB ports, AV input, SD card slot, DM 8, 8 Inch TFT screen, PHEV Eco route includes charge point locations, and Hands-Free Technology Package with power liftgate, rearview camera, and hands-free liftgate.

$ 2,215
$ 1,977
Interior protection package
Interior protection package

Includes front and rear all-weather floor mats, and cargo area protector.

$ 170
$ 152
Back to top

Ford Features

Comfort
Comfort features
Cargo area floor mat(optional)
Steering wheel trim: Alloy, Leather
Door trim: Simulated alloy
Dash trim: Simulated alloy
Shift knob trim: Alloy, Leather
Reading lights: Front, Rear
Floor mats: Front, Rear
Air conditioning
Front air conditioning zones: Dual
Front air conditioning: Automatic climate control
Air filtration
Headrests
Rear headrests: Adjustable
Front headrests: Adjustable
Seating
Driver seat
Driver seat: Heated
Driver seat power adjustments: 10, Lumbar, Reclining
Passenger seat
Passenger seat: Heated
Rear seats
Rear seat folding: Flat, Split
Seats
Passenger seat manual adjustments: 4, Reclining
Rear vents: Second row
Front headrests: 2
Rear seat type: 60-40 split bench
Driver seat power adjustments: Height
Armrests: Rear center folding with storage
Rear headrests: 3
Upholstery: Leather-trimmed
Front seat type: Bucket
Seatbelts
Seatbelt pretensioners: Front
Rear seatbelts: 3-point
Convenience
Convenience features
Power steering
Steering wheel mounted controls: Audio, Cruise control, Phone
Cargo cover: Hard
Active parking system: Driver controlled brake, gas and gear selection(optional)
Steering wheel: Tilt and telescopic
Power outlet(s): 115v, 12v front and rear
Center console: Front console with armrest and storage
Cruise control
Universal remote transmitter: Homelink - garage door opener
Overhead console: Front
Multi-function remote: Keyless entry, Panic alarm, Trunk release
Cupholders: Front, Rear
Camera system: Rearview(optional)
In-car technology
Audio system
Premium brand: Sony(optional)
In-dash cd: Mp3 playback, Single disc
Voice recognition
Auxiliary audio input: Bluetooth, Ipod/iphone, Jack, Memory card slot, Usb
Satellite radio: Siriusxm
Total speakers: 9(optional), 6
Radio: Hd radio(optional), Am/fm, Touch screen display
Telematics
Wireless data link: Bluetooth
Phone: Hands free, Voice activated
Infotainment: Sync
Electronic messaging assistance: With read function
Navigation system: Touch screen display(optional)
Instrumentation
Fuel economy display: Mpg, Range
External temperature display
Multi-function display
Exterior
Roof
Moonroof / sunroof: Power panoramic(optional)
Windows
One-touch windows: 4
Window defogger: Rear
Wheels
Wheels: Aluminum
Tires and rims
Tire pressure monitoring system
Warnings and reminders: Tire fill alert
Tire type: All season
Spare tire kit: Inflator kit
Lights
Ambient lighting
Daytime running lights(optional)
Courtesy lights: Door
Headlights: Auto delay off, Dusk sensing, Halogen
Front fog lights
Exterior entry lights: Security approach lamps
Doors
Rear door type: Sensor-activated(optional), Power liftgate
Liftgate window: Fixed
Exterior features
Rear spoiler: Roofline
Mudguards: Front(optional), Rear(optional)
Chassis & suspension
Suspension
Rear suspension classification: Independent
Front suspension classification: Independent
Front struts: Macpherson
Rear stabilizer bar: Diameter 22 mm
Rear shock type: Gas
Front stabilizer bar: Diameter 25 mm
Rear suspension type: Multi-link
Front shock type: Gas
Powertrain & drivetrain
Engine
Electric motor battery type: Lithium ion
Hybrid gas engine hp@rpm: 6000
Electric motor torque: 117
Electric charge cord: 120 volt
Electric motor charging time: 8 hours
Electric motor power output (kilowatts): 88
Electric motor miles per charge: 19
Electric motor hp: 118
Hybrid gas engine torque@rpm: 4000
Push-button start
Remote engine start
Hybrid
Starter type: Motor/generator
Back to top

Ford Colors

Exterior
Blue candy metallic tinted clearcoat
Ice storm metallic
Ingot silver metallic
Oxford white
Ruby red metallic tinted clearcoat
Sterling gray metallic
Tuxedo black metallic
White platinum metallic tri-coat
Interior
Charcoal black
Medium light stone
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Overall rating
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side vehicle impact: rear passenger
NHTSA
Side pole impact: driver
NHTSA
Side impact: combined rear
NHTSA
Vehicle rollover rating
IIHS
Front impact: small overlap
IIHS
Front impact: moderate overlap
IIHS
Side impact
IIHS
Roof strength
IIHS
Head restraint system
IIHS
Autoweb-calculated overall rating
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Side curtain airbags
Front, rear
Airbag deactivation
Occupant sensing passenger
Front airbags
Dual
Knee airbags
Driver
Side airbags
Front
Brakes
Electronic brakeforce distribution
Regenerative braking system
Braking assist
Rear brake type
Disc
Abs
4-wheel
Power brakes
Front brake type
Ventilated disc
Child safety
Child safety door locks
Child seat anchors
Latch system
Locks
Power door locks
Auto-locking
Mirrors
Dimming rearview mirror
Auto
Side mirror type
Spotter mirror
Side mirrors
Heated, integrated turn signals
Vanity mirrors
Dual illuminating
Side mirror adjustments
Manual folding, power
Safety
Parking sensors
Rear
Security
Anti-theft system
Engine immobilizer, alarm, perimeter alarm
Stability and traction
Roll stability control
Stability control
Electronic
Traction control
Safety: optional features
Safety
Parking sensors
Front
Rearview monitor
In dash
Back to top

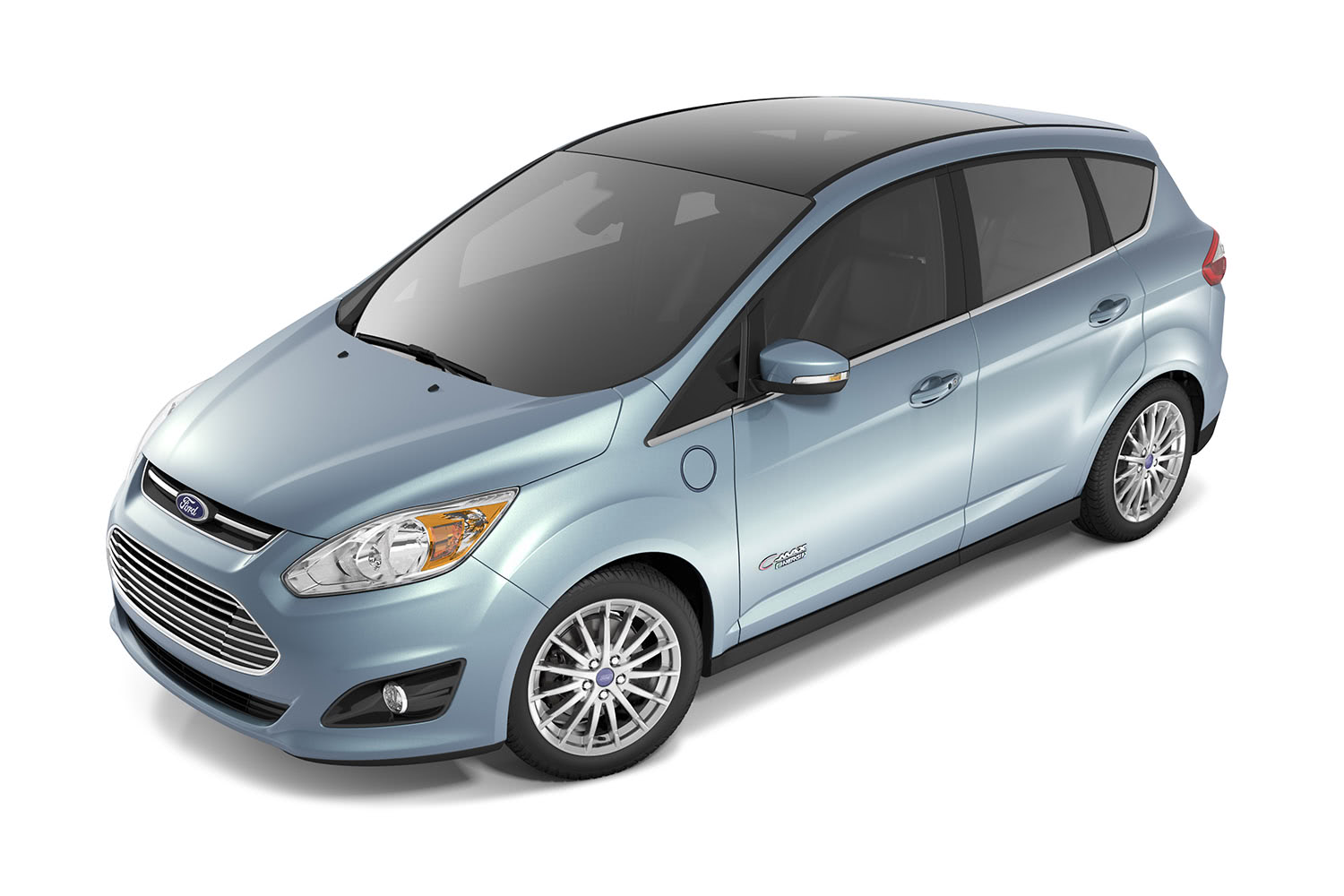

Ford Photo gallery

Back to top

Ford C-MAX Select a Style:

Style
MPG
Engine
MSRP
SEL Energi Plug-In Hybrid 4dr Wagon
SEL Energi Plug-In Hybrid 4dr Wagon
2.0L I4 CVT
MPG 40 City / 36 Hwy / 38 Comb
Engine 2.0L Inline4
MSRP $ 32,920
