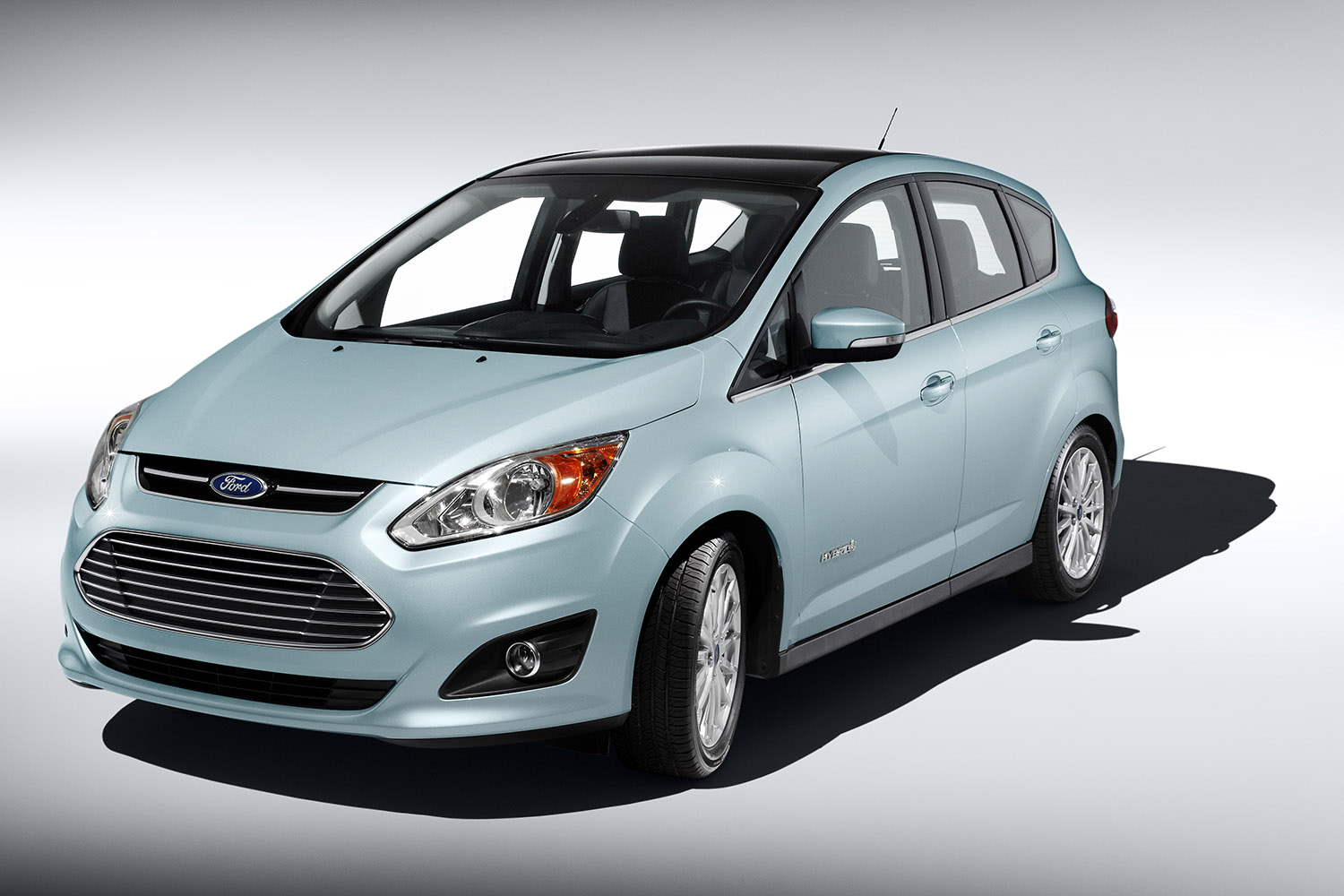

2014 Ford C-MAX

Share this car on:
Showing results in:

Vehicle information

MPG: 42 City / 37 Hwy / 40 Comb
Engine: 2.0L Inline4
Vehicle type: Compact Wagon
Fuel type: Hybrid / 87 Octane
Transmission: Continuously Variable (CVT)
Segment: Hybrid
Basic warranty: 3 Years / 36,000 Miles
Drive type: Front-Wheel Drive
Seating capacity: 5 Occupants
Safety rating: Not Available

Ford Specs

Engine
Engine description
2.0L Inline4
Engine horsepower
141 hp
Fuel description
Hybrid
Engine max horsepower
141 hp @ 6000 rpm
Bore & stroke
3.44 in. x 3.27 in.
Torque
129 lb-ft
Cam type
Dual Overhead Cam (DOHC)
Max torque
129 lb-ft @ 4000 rpm
Fuel induction
Sequential Multi-Port Fuel Injection (SMPI)
Electric motor horsepower
118 hp
Number of valves
16
Electric motor torque
117 lb-ft
Valve timing
Variable Valve Timing
Total horsepower
188 hp
Required fuel rating
87 Octane
Total max horsepower
188 hp @ 6000 rpm
Engine compression ratio
12.3:1
Oil capacity
4.3 quarts
Transmission & drive type
Transmission
Continuously Variable (CVT)
Drive type
Front-Wheel Drive
Fuel economy
standard drivetrain
MPG: 42 City / 37 Hwy / 40 Comb
2.0L Inline4 / Continuously Variable (CVT) / Gasoline / 87 Octane
Specifications

Length 14 ft. 5.6 in.

Silhouette side

Height 5 ft. 3.9 in.

Width 6 ft. 3.6 in.

Silhouette front
Front track:
5 ft. 0.5 in.
Ground clearance:
0 ft. 5.5 in.
Height:
5 ft. 3.9 in.
Length:
14 ft. 5.6 in.
Maximum seating:
5
Rear track:
5 ft. 0.4 in.
Standard seating:
5
Wheelbase:
8 ft. 8.3 in.
Width:
6 ft. 3.6 in.
Width (no mirrors):
6 ft. 0 in.
Front head room:
41 in.
Front hip room:
54.3 in.
Front leg room:
43.1 in.
Front shoulder room:
55.9 in.
Maximum cargo volume:
52.6 cu. ft.
Passenger volume:
99.7 cu. ft.
Rear head room:
39.4 in.
Rear hip room:
51.9 in.
Rear leg room:
36.5 in.
Rear shoulder room:
55.2 in.
Standard cargo volume:
24.5 cu. ft.
Tires:
P225/50R17
Tires (rear):
P225/50R17
Turning circle:
38.4 ft.
Wheel size:
17.0
Wheel size (rear):
17.0
Fuel tank capacity:
13.5 gal.
Weight:
3607 lbs.
Back to top

Ford Pricing

Base price
MSRP
$25,170
Destination charge
$825
Invoice
$23,472
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
3 Years / 36,000 Miles
Powertrain warranty
5 Years / 60,000 Miles
Rust & corrosion warranty
5 Years
Hybrid systems warranty
8 Years / 100,000 Miles
Roadside assistance
5 Years / 60,000 Miles
Available options
MSRP
Invoice
Keyless entry pad
$ 95
$ 85
50-state emissions system
$ 0
$ 0
Remote start system
Remote start system

PEPS and Non-PEPS.

$ 395
$ 353
Full vehicle car cover
$ 375
$ 335
Blue candy metallic tinted clearcoat
$ 395
$ 353
White platinum metallic tricoat paint
$ 595
$ 531
Ruby red metallic tinted clearcoat
$ 395
$ 353
Power panorama roof
$ 1,315
$ 1,173
Engine block heater
$ 35
$ 30
Daytime running lights
$ 45
$ 40
Exterior protection package
Exterior protection package

Includes clear tape rear bumper protection, and molded front and rear splash guards.

$ 245
$ 218
Equipment group 203a discount
$ -295
$ -264
Equipment group 200a
Equipment group 200a

Includes vehicle with standard equipment. Package price is included in the base vehicle MSRP. Required for ordering purposes.

$ 0
$ 0
Interior protection package
Interior protection package

Includes front and rear all-weather floor mats, and cargo area protector.

$ 170
$ 152
Winter package
Winter package

Includes heated mirrors with side indicators and puddle lamps, and heated cloth seats.

$ 295
$ 264
Equipment group 202a
Equipment group 202a

Includes vehicle with standard equipment, and SYNC, MyFord Touch and SIRIUS Package with MyFord Touch with unique hybrid driving screens, Media hub with 2 USB ports, Audio video input, and SD card, SYNC Services, and SIRIUS Satellite Radio with 6 month prepaid subscription.

$ 570
$ 509
Equipment group 203a
Equipment group 203a

Includes vehicle with standard equipment and power liftgate and rear park aid package with power liftgate, reverse sensing system, and ambient lighting, and SYNC, MyFord Touch and SIRIUS Package with MyFord Touch with unique hybrid driving screens, Media hub with 2 USB ports, Audio video input, and SD card, SYNC Services, and SIRIUS Satellite Radio with 6 month prepaid subscription and voice activated navigation with SiriusXM Traffic and Travel Link with 5 yr subscription from vehicle sale date as reorder by dealer.

$ 2,290
$ 2,045
Equipment group 201a discount
$ -130
$ -116
Cargo management package
Cargo management package

Includes foldable soft cargo organizer, and cargo net.

$ 115
$ 102
Equipment group 201a
Equipment group 201a

Includes vehicle with standard equipment and power liftgate and rear park aid package with power liftgate, reverse sensing system, and ambient lighting.

$ 925
$ 826
Back to top

Ford Features

Comfort
Interior
Interior accents: Metallic-tone
Comfort features
Steering wheel trim: Alloy, Leather
Reading lights: Front, Rear
Floor mats: Front, Rear
Cargo area floor mat(optional)
Door trim: Simulated alloy
Dash trim: Simulated alloy
Shift knob trim: Alloy, Leather
Air conditioning
Air filtration
Front air conditioning: Automatic climate control
Front air conditioning zones: Dual
Headrests
Rear headrests: Adjustable
Front headrests: Adjustable
Seating
Driver seat
Driver seat: Heated(optional)
Passenger seat
Passenger seat: Heated(optional)
Rear seats
Rear seat folding: Flat, Split
Seats
Upholstery: Cloth
Armrests: Rear center folding with storage
Front seat type: Bucket
Rear seat type: 60-40 split bench
Rear headrests: 3
Passenger seat manual adjustments: 4, Reclining
Rear vents: Second row
Front headrests: 2
Driver seat manual adjustments: 6, Height, Reclining
Seatbelts
Rear seatbelts: 3-point
Seatbelt pretensioners: Front
Convenience
Convenience features
Center console: Front console with armrest and storage
Cruise control
Multi-function remote: Keyless entry, Panic alarm, Trunk release
Cargo cover: Hard
Keypad entry(optional)
Cupholders: Front, Rear
Steering wheel: Tilt and telescopic
Power outlet(s): 115v, 12v front and rear
Overhead console: Front
Power steering
Steering wheel mounted controls: Audio, Cruise control, Phone
In-car technology
Audio system
Radio: Touch screen display(optional), Am/fm
Total speakers: 6
Satellite radio: Siriusxm(optional)
In-dash cd: Mp3 playback, Single disc
Voice recognition
Auxiliary audio input: Bluetooth, Ipod/iphone, Jack, Usb
Telematics
Navigation system: Touch screen display(optional), Voice recognition(optional)
Wireless data link: Bluetooth
Infotainment: Sync
Instrumentation
External temperature display
Multi-function display
Fuel economy display: Mpg, Range
Exterior
Roof
Moonroof / sunroof: Power panoramic(optional)
Windows
One-touch windows: 4
Window defogger: Rear
Wheels
Wheels: Aluminum
Tires and rims
Tire type: All season
Spare tire kit: Inflator kit
Warnings and reminders: Tire fill alert
Tire pressure monitoring system
Lights
Headlights: Auto delay off, Dusk sensing, Halogen
Exterior entry lights: Puddle lamps(optional)
Daytime running lights(optional)
Courtesy lights: Door
Ambient lighting(optional)
Doors
Liftgate window: Fixed
Rear door type: Power liftgate(optional), Liftgate
Exterior features
Mudguards: Front(optional), Rear(optional)
Active grille shutters
Rear spoiler: Roofline
Chassis & suspension
Suspension
Rear stabilizer bar: Diameter 22 mm
Front stabilizer bar: Diameter 25 mm
Front shock type: Gas
Front suspension classification: Independent
Rear suspension type: Multi-link
Rear suspension classification: Independent
Rear shock type: Gas
Front struts: Macpherson
Powertrain & drivetrain
Engine
Remote engine start(optional)
Hybrid gas engine hp@rpm: 6000
Hybrid gas engine torque@rpm: 4000
Electric motor hp: 118
Electric motor battery type: Lithium ion
Auto start/stop
Electric motor torque: 117
Electric motor power output (kilowatts): 88
Hybrid
Starter type: Motor/generator
Back to top

Ford Colors

Exterior
Blue candy metallic tinted clearcoat
Ice storm metallic
Ingot silver metallic
Oxford white
Ruby red metallic tinted clearcoat
Sterling gray metallic
Tuxedo black metallic
White platinum metallic tri-coat
Interior
Charcoal black surround w / sterling stone insert
Medium dark stone surround w / medium light stone insert
Back to top

Ford Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Overall rating
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side vehicle impact: rear passenger
NHTSA
Side pole impact: driver
NHTSA
Side impact: combined rear
NHTSA
Vehicle rollover rating
IIHS
Front impact: small overlap
IIHS
Front impact: moderate overlap
IIHS
Side impact
IIHS
Roof strength
IIHS
Head restraint system
IIHS
Autoweb-calculated overall rating
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Side curtain airbags
Front, rear
Side airbags
Front
Front airbags
Dual
Airbag deactivation
Occupant sensing passenger
Knee airbags
Driver
Brakes
Rear brake type
Disc
Regenerative braking system
Front brake type
Ventilated disc
Electronic brakeforce distribution
Power brakes
Braking assist
Abs
4-wheel
Child safety
Child seat anchors
Latch system
Child safety door locks
Locks
Power door locks
Auto-locking
Mirrors
Side mirrors
Integrated turn signals
Vanity mirrors
Dual illuminating
Side mirror adjustments
Manual folding, power
Side mirror type
Spotter mirror
Dimming rearview mirror
Manual day/night
Security
Anti-theft system
Alarm, engine immobilizer
Stability and traction
Roll stability control
Traction control
Stability control
Electronic
Safety: optional features
Safety
Parking sensors
Rear
Mirrors
Side mirrors
Heated
Back to top

Ford Photo gallery

Back to top

Ford C-MAX Select a Style:

Style
MPG
Engine
MSRP
SE Hybrid 4dr Wagon
SE Hybrid 4dr Wagon
2.0L I4 CVT
MPG 42 City / 37 Hwy / 40 Comb
Engine 2.0L Inline4
MSRP $ 25,170
SEL Hybrid 4dr Wagon
SEL Hybrid 4dr Wagon
2.0L I4 CVT
MPG 42 City / 37 Hwy / 40 Comb
Engine 2.0L Inline4
MSRP $ 28,455
