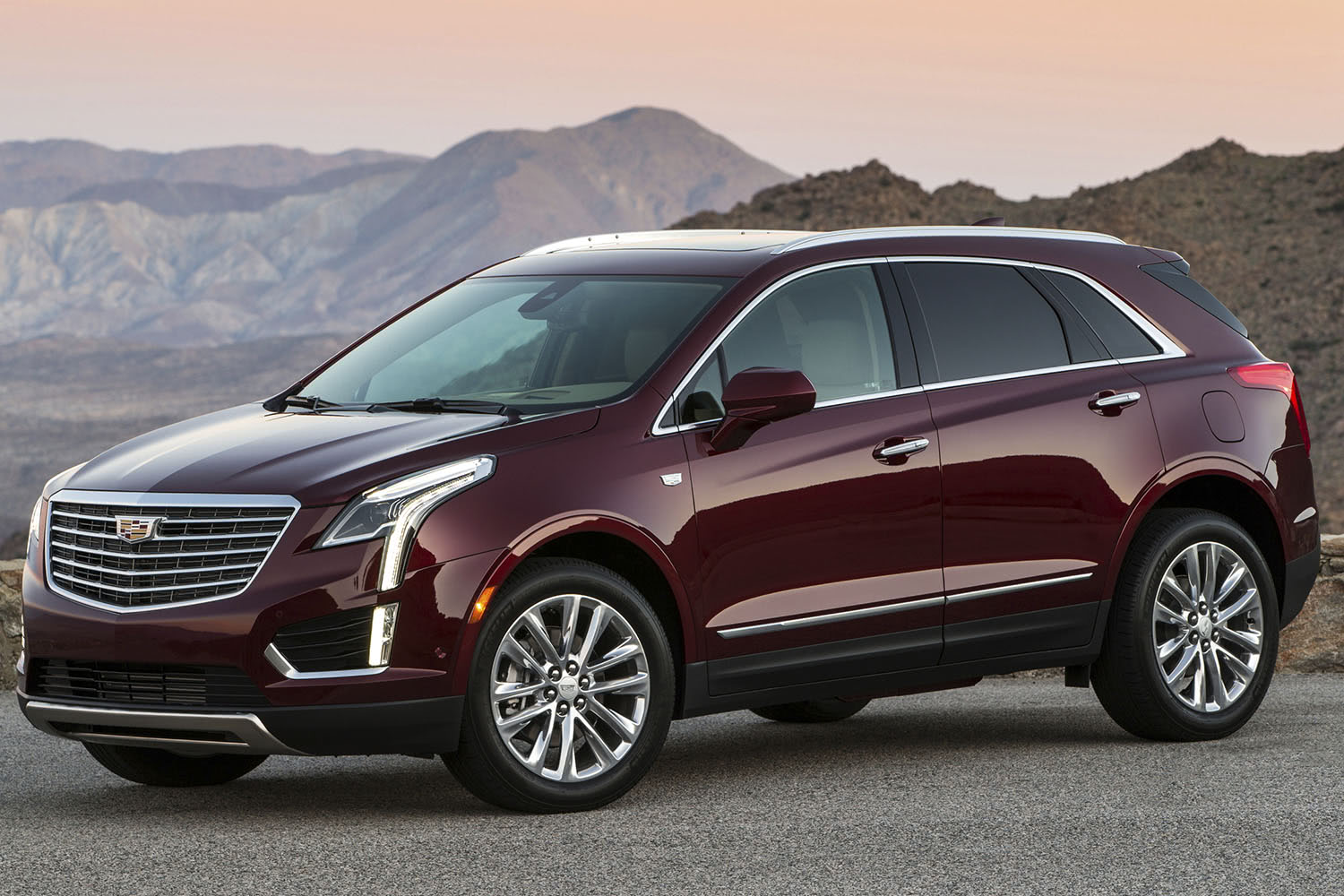

2017 Cadillac XT5

Share this car on:
Showing results in:

Vehicle information

MPG: 18 City / 26 Hwy / 21 Comb
Engine: 3.6L V6
Vehicle type: Midsize SUV/Crossover
Fuel type: Gasoline / 87 Octane
Transmission: 8-Speed Shiftable Automatic
Segment: Luxury
Basic warranty: 4 Years / 50,000 Miles
Drive type: All-Wheel Drive
Seating capacity: 5 Occupants
Safety rating: Not Available

Cadillac Specs

Engine
Engine description
3.6L V6
Required fuel rating
87 Octane
Fuel description
Gasoline
Engine compression ratio
11.5:1
Bore & stroke
3.74 in. x 3.37 in.
Engine horsepower
310 hp
Cam type
Dual Overhead Cam (DOHC)
Engine max horsepower
310 hp @ 6600 rpm
Fuel induction
Direct Injection (DI)
Torque
271 lb-ft
Number of valves
24
Max torque
271 lb-ft @ 5000 rpm
Valve timing
Variable Valve Timing
Engine redline
7200 rpm redline
Transmission & drive type
Transmission
8-Speed Shiftable Automatic
Drive type
All-Wheel Drive
Fuel economy
standard drivetrain
MPG: 18 City / 26 Hwy / 21 Comb
3.6L V6 / 8-Speed Shiftable Automatic / Gasoline / 87 Octane
Specifications

Length 15 ft. 9.5 in.

Silhouette side

Height 5 ft. 6 in.

Width 6 ft. 3 in.

Silhouette front
Angle of approach:
15.8 degrees
Angle of departure:
23.5 degrees
Front track:
5 ft. 4.4 in.
Ground clearance:
0 ft. 7.8 in.
Height:
5 ft. 6 in.
Length:
15 ft. 9.5 in.
Maximum seating:
5
Rear track:
5 ft. 4.4 in.
Standard seating:
5
Wheelbase:
9 ft. 4.5 in.
Width:
6 ft. 3 in.
Width (no mirrors):
6 ft. 3 in.
Front head room:
38.4 in.
Front hip room:
56 in.
Front leg room:
41.2 in.
Front shoulder room:
58.3 in.
Maximum cargo volume:
63 cu. ft.
Passenger volume:
104.5 cu. ft.
Rear head room:
36 in.
Rear hip room:
54.7 in.
Rear leg room:
39.5 in.
Rear shoulder room:
56.2 in.
Standard cargo volume:
30 cu. ft.
Tires:
P235/65R18 H
Tires (rear):
P235/65R18 H
Wheel size:
18.0 x 8.0
Wheel size (rear):
18.0 x 8.0
Fuel tank capacity:
21.7 gal.
Payload:
1744 lbs.
Weight:
4257 lbs.
Weight (gvwr):
6001 lbs.
Back to top

Cadillac Pricing

Base price
MSRP
$47,795
Destination charge
$995
Invoice
$44,927
Gas guzzler tax
Not Applicable
Warranty
Basic warranty
4 Years / 50,000 Miles
Powertrain warranty
6 Years / 70,000 Miles
Rust & corrosion warranty
6 Years
Roadside assistance
6 Years / 70,000 Miles
Available options
MSRP
Invoice
Cargo tie downs - sliding
$ 130
$ 114
Tri-zone automatic climate control
Tri-zone automatic climate control

Includes tri-zone automatic climate control with individual climate settings for driver, right-front passenger and rear passengers, and heated rear seats.

$ 625
$ 550
Cargo rear flex divider
$ 165
$ 145
Pedal cover set
Pedal cover set

Includes brush aluminum pedals with grip inserts. Limited Promotion Option.

$ 215
$ 189
Cabin filter
Cabin filter

Limited Promotion Option.

$ 60
$ 53
Cargo net
Cargo net

Limited Promotion Option.

$ 60
$ 53
Smokers package
Smokers package

Limited Promotion Option.

$ 80
$ 70
Truck/cargo area carpet mat
$ 190
$ 167
Cargo tray
Cargo tray

Limited Promotional Option.

$ 185
$ 163
Cargo area organizer
Cargo area organizer

Limited Promotion Option.

$ 140
$ 123
Illuminated door sill plates
Illuminated door sill plates

Limited Promotion Option.

$ 0
$ 0
Protective rear seat cover
$ 350
$ 308
All-weather floor mats
All-weather floor mats

Includes first and second row floor mats. Limited Promotion Option.

$ 0
$ 0
Cargo net - floor mounted
$ 60
$ 53
Emissions override
Emissions override

Includes state-specific emissions override (for dealers ordering vehicles in YF5 or NE1 emission states - California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington). Allows a California dealer to order NE1 emissions with NB9 emissions override code for registration in NE1 states; or, a Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont, and Washington dealer to order YF5 emissions with NB9 emissions override code for registration in California.

$ 0
$ 0
Emissions override
Emissions override

Federal (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions - Not required for vehicles being shipped to California, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island,Vermont or Washington) Requires (YF5) California state emissions requirements or (NE1) Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont or Washington state emissions requirements.

$ 0
$ 0
Northeast emissions
Northeast emissions

Includes Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island, Vermont and Washington state requirements.

$ 0
$ 0
Emissions override
Emissions override

California emissions override (allows a dealer in states that require California emissions - California, Connecticut, Delaware, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island or Washington to order Federal emissions for a vehicle that will be registered in a state that has Federal emission requirements). Do not use for vehicles that will be registered in California, Connecticut, Delaware, Maryland, Massachusetts, New Jersey, New York, Oregon, Pennsylvania, Rhode Island or Washington. Requires (FE9) Federal emissions requirements. Not available in Maine or Vermont.

$ 0
$ 0
Engine block heater
$ 100
$ 88
Federal emissions requirements
Federal emissions requirements

Includes Federal emissions requirements.

$ 0
$ 0
California emissions requirements
$ 0
$ 0
Chrome bodyside moldings
Chrome bodyside moldings

Limited Promotion Option.

$ 355
$ 312
Black ice bodyside moldings
$ 355
$ 312
Molded splash guards
Molded splash guards

Limited Promotion Option.

$ 170
$ 150
Headlamps - led
$ 900
$ 792
Rear fascia closeout
Rear fascia closeout

Limited Promotion Option.

$ 70
$ 62
License plate bar
License plate bar

Limited Promotion Option.

$ 310
$ 272
Front license plate bracket
$ 15
$ 13
Black ice grille
Black ice grille

Includes black ice grille with galvano bars. Limited Promotion Option.

$ 0
$ 0
Dark adriatic blue metallic
$ 595
$ 524
Crystal white tricoat
$ 995
$ 876
Dark tail lamps
Dark tail lamps

Limited Promotion Option.

$ 0
$ 0
Red passion tintcoat
$ 995
$ 876
Deep amethyst metallic paint
$ 595
$ 524
Molded assist steps
Molded assist steps

Limited Promotion Option.

$ 750
$ 660
Silver coast metallic
$ 595
$ 524
Dark granite metallic
$ 595
$ 524
Stellar black metallic
$ 595
$ 524
Roof cross rails
Roof cross rails

Limited Promotion Option.

$ 295
$ 260
Compact spare tire
$ 350
$ 308
Wheel locks
Wheel locks

Limited Promotion Option.

$ 75
$ 66
20 inch machined wheels
20 inch machined wheels

Limited Promotion Option

$ 2,600
$ 2,288
20 inch polished wheels
20 inch polished wheels

Limited Promotion Option.

$ 2,600
$ 2,288
Universal tablet holders
Universal tablet holders

Includes two universal tablet holders. Mounted behind front seat head rests. Limited Promotion Option.

$ 115
$ 101
Advanced security package
Advanced security package

Includes AM/FM stereo with embedded navigation, 8 inch diagonal color information display, three USB ports, two auxiliary power outlets, auxiliary input jack, natural voice recognition and phone integration for Apple CarPlay capability for compatible phone.

$ 1,025
$ 902
Rear seat dvd entertainment system
Rear seat dvd entertainment system

Includes dual DVD headrests.

$ 1,995
$ 1,756
Driver awareness package
Driver awareness package

Includes safety alert seat, forward collision alert, following distance indicator, lane keep assist with lane departure warning, front pedestrian detection, IntelliBeam headlamps, and front automatic braking.

$ 770
$ 678
Carbon plum interior package
Carbon plum interior package

Includes black olive ash burl wood interior trim.

$ 1,445
$ 1,272
Advanced security package
Advanced security package

Includes steering column lock , door lock and latch shields, self powered theft-deterrent alarm system, vehicle inclination sensor, vehicle interior movement sensor, and locking wheel lugs.

$ 435
$ 383
Cadillac edition first aid kit
Cadillac edition first aid kit

Limited Promotion Option.

$ 50
$ 44
Highway safety kit
Highway safety kit

Includes first aid kit, PVC tape, cotton cloth, fuse kit, bungee cord, cotton gloves, flashlight, rain poncho, screwdriver, booster cables, pliers and Need Help banner. Limited Promotion Option.

$ 130
$ 114
Trailering package
Trailering package

Includes hitch and wiring harness.

$ 575
$ 506
Back to top

Cadillac Features

Comfort
Interior
Interior accents: Wood-tone(optional)
Comfort features
Floor mats: Front, Rear
Cargo area floor mat(optional)
Heated steering wheel
Foot pedal trim: Aluminum(optional)
Reading lights: Front, Rear
Steering wheel trim: Leather
Door sill trim: Illuminated scuff plate(optional)
Air conditioning
Front air conditioning: Automatic climate control
Rear air conditioning: Automatic climate control(optional), Independently controlled(optional)
Air filtration
Front air conditioning zones: Dual
Rear air conditioning zones: Single(optional)
Headrests
Front headrests: Adjustable
Rear headrests: Adjustable
Seating
Driver seat
Driver seat power adjustments: 8, Lumbar, Reclining
Driver seat: Ventilated(optional), Heated
Passenger seat
Passenger seat power adjustments: 8, Lumbar, Reclining
Passenger seat: Ventilated(optional), Heated
Rear seats
Rear seat folding: Flat, Split
Armrests: Rear center folding with pass-thru
Rear seat: Heated(optional), Sliding
Rear seat manual adjustments: Reclining
Seats
Front seat type: Bucket
Rear seat type: 40-20-40 split bench
Passenger seat power adjustments: Height
Seat cover: Rear(optional)
Rear headrests: 2
Rear vents: Second row
Driver seat power adjustments: Height
Front headrests: 2
Upholstery: Leather, Perforated
Seatbelts
Rear seatbelts: 3-point
Convenience
Convenience features
Universal remote transmitter: Garage door opener
Wireless charging station
Center console: Front console with armrest and storage
Cargo cover: Retractable
Power steering: Variable/speed-proportional
Cruise control
Steering wheel mounted controls: Audio, Cruise control, Phone, Voice recognition
First aid kit(optional)
Cupholders: Front
Steering wheel: Power tilt and telescopic
Camera system: Rearview
Power outlet(s): Two 12v
Storage: Cargo tray(optional)
Multi-function remote: Keyless entry, Proximity entry system
Memorized settings
Memorized settings: 2 driver, Driver seat, Liftgate, Side mirrors, Steering wheel
In-car technology
Audio system
Premium brand: Bose
Radio: Am/fm, Hd radio, Touch screen display
Auxiliary audio input: Bluetooth, Ipod/iphone, Jack, Usb
Premium brand speakers: Bose
Subwoofer: 1(optional)
Satellite radio: Siriusxm
Surround sound(optional)
Voice recognition
Total speakers: 14(optional), 8
Telematics
Wifi: Hotspot
Wireless data link: Bluetooth
Satellite communications: Onstar
Phone: Voice activated(optional)
Navigation system: Touch screen display(optional), Voice recognition(optional)
Infotainment: Cue
Electronic messaging assistance: Voice operated(optional), With read function
Instrumentation
Multi-function display
Driver information system
Fuel economy display: Mpg, Range
External temperature display
In car entertainment
Infotainment: Android auto ready, Apple carplay ready
Video system
Video monitor location: Dual rear(optional)
Video monitor(optional)
Video monitor size: 7(optional)
Video system: Dvd player(optional)
Exterior
Roof
Roof rails
Roof rails color: Aluminum
Roof rack: Crossbars(optional)
Moonroof / sunroof: One-touch open/close, Power glass, Power sunshade, Tilt/slide
Windows
One-touch windows: 4
Window defogger: Rear
Wheels
Wheels: Alloy(optional), Polished alloy(optional), Aluminum with painted accents
Tires and rims
Warnings and reminders: Tire fill alert
Tire type: All season
Tire pressure monitoring system
Wheel diameter: 20 inch(optional)
Spare tire kit: Inflator kit
Spare tire
Spare tire size: Temporary(optional)
Lights
Headlights: Automatic high beam dimmer(optional), Led(optional), Auto delay off, Auto on/off, Dusk sensing, Halogen
Daytime running lights: Led
Doors
Liftgate window: Fixed
Rear door type: Power liftgate
Exterior features
Running board color: Black(optional)
Rear spoiler: Roofline
Mudguards: Front(optional), Rear(optional)
Chassis & suspension
Suspension
Rear suspension type: Multi-link
Front suspension classification: Independent
Front struts: Macpherson
Front stabilizer bar
Rear suspension classification: Independent
Rear stabilizer bar
Powertrain & drivetrain
Drivetrain
Locking differential: Center
4wd selector: Electronic
Engine
Auto start/stop
Cylinder deactivation
Remote engine start
Push-button start
Suv & truck equipment
Towing and hauling
Trailer wiring(optional)
Trailer hitch(optional)
Truck features
Running boards: Step(optional)
Back to top

Cadillac Colors

Exterior
Red passion tintcoat
Crystal white tricoat
Dark adriatic blue metallic
Deep amethyst metallic
Radiant silver metallic
Dark granite metallic
Stellar black metallic
Silver coast metallic
Interior
Sahara beige w / jet black accent
Carbon plum w / jet black accent
Jet black
Cirrus w / dark titanium accent
Back to top

Cadillac Safety

Safety ratings
Source
Rating category
Rating score
NHTSA
Overall rating
NHTSA
Front impact: overall rating
NHTSA
Front impact: driver
NHTSA
Front impact: passenger
NHTSA
Side impact: overall rating
NHTSA
Side vehicle impact: driver
NHTSA
Side vehicle impact: rear passenger
NHTSA
Side pole impact: driver
NHTSA
Side impact: combined rear
NHTSA
Vehicle rollover rating
IIHS
Front impact: small overlap
IIHS
Front impact: moderate overlap
IIHS
Side impact
IIHS
Roof strength
IIHS
Head restraint system
IIHS
Crash prevention system
IIHS
Autoweb-calculated overall rating
AutoWeb
Overall safety rating
Safety: standard features
Airbags
Side curtain airbags
Rear, front
Airbag deactivation
Occupant sensing passenger
Knee airbags
Driver
Front airbags
Dual
Side airbags
Front
Brakes
Front brake type
Ventilated disc
Power brakes
Abs
4-wheel
Rear brake type
Ventilated disc
Braking assist
Electronic brakeforce distribution
Child safety
Child seat anchors
Latch system
Child safety door locks
Locks
Power door locks
Auto-locking
Mirrors
Dimming rearview mirror
Auto
Side mirror adjustments
Power, power folding
Side mirrors
Heated, driver side auto-dimming
Vanity mirrors
Dual illuminating
Safety
Rearview monitor
In dash
Parking sensors
Rear, front
Blind spot safety
Sensor/alert
Cross traffic alert
Rear
Security
Anti-theft system
Engine immobilizer
Stability and traction
Stability control
Electronic
Traction control
Safety: optional features
Safety
Autonomous braking
Lane deviation sensors
Lane keeping assist
Pre-collision warning system
Vibrating driver seat, audible warning, visual warning
Security
Anti-theft system
Anti-tow sensor, theft-deterrent system, interior motion sensor
Back to top

Cadillac Photo gallery

Back to top

Cadillac XT5 Select a Style:

Style
MPG
Engine
MSRP
4dr SUV/Crossover
4dr SUV/Crossover
3.6L V6 8A
MPG 19 City / 27 Hwy / 22 Comb
Engine 3.6L V6
MSRP $ 39,395
Luxury 4dr SUV/Crossover
Luxury 4dr SUV/Crossover
3.6L V6 8A
MPG 19 City / 27 Hwy / 22 Comb
Engine 3.6L V6
MSRP $ 45,295
AWD Luxury 4dr SUV/Crossover
AWD Luxury 4dr SUV/Crossover
3.6L V6 8A
MPG 18 City / 26 Hwy / 21 Comb
Engine 3.6L V6
MSRP $ 47,795
Premium Luxury 4dr SUV/Crossover
Premium Luxury 4dr SUV/Crossover
3.6L V6 8A
MPG 19 City / 27 Hwy / 22 Comb
Engine 3.6L V6
MSRP $ 52,295
AWD Premium Luxury 4dr SUV/Crossover
AWD Premium Luxury 4dr SUV/Crossover
3.6L V6 8A
MPG 18 City / 26 Hwy / 21 Comb
Engine 3.6L V6
MSRP $ 54,795
AWD Platinum 4dr SUV/Crossover
AWD Platinum 4dr SUV/Crossover
3.6L V6 8A
MPG 18 City / 26 Hwy / 21 Comb
Engine 3.6L V6
MSRP $ 62,895
